7060835 - Snapper Grass Catcher Kit Grass Catcher (Mid-Duty Walk-Behind) Parts Diagram

Grass Catcher Kit

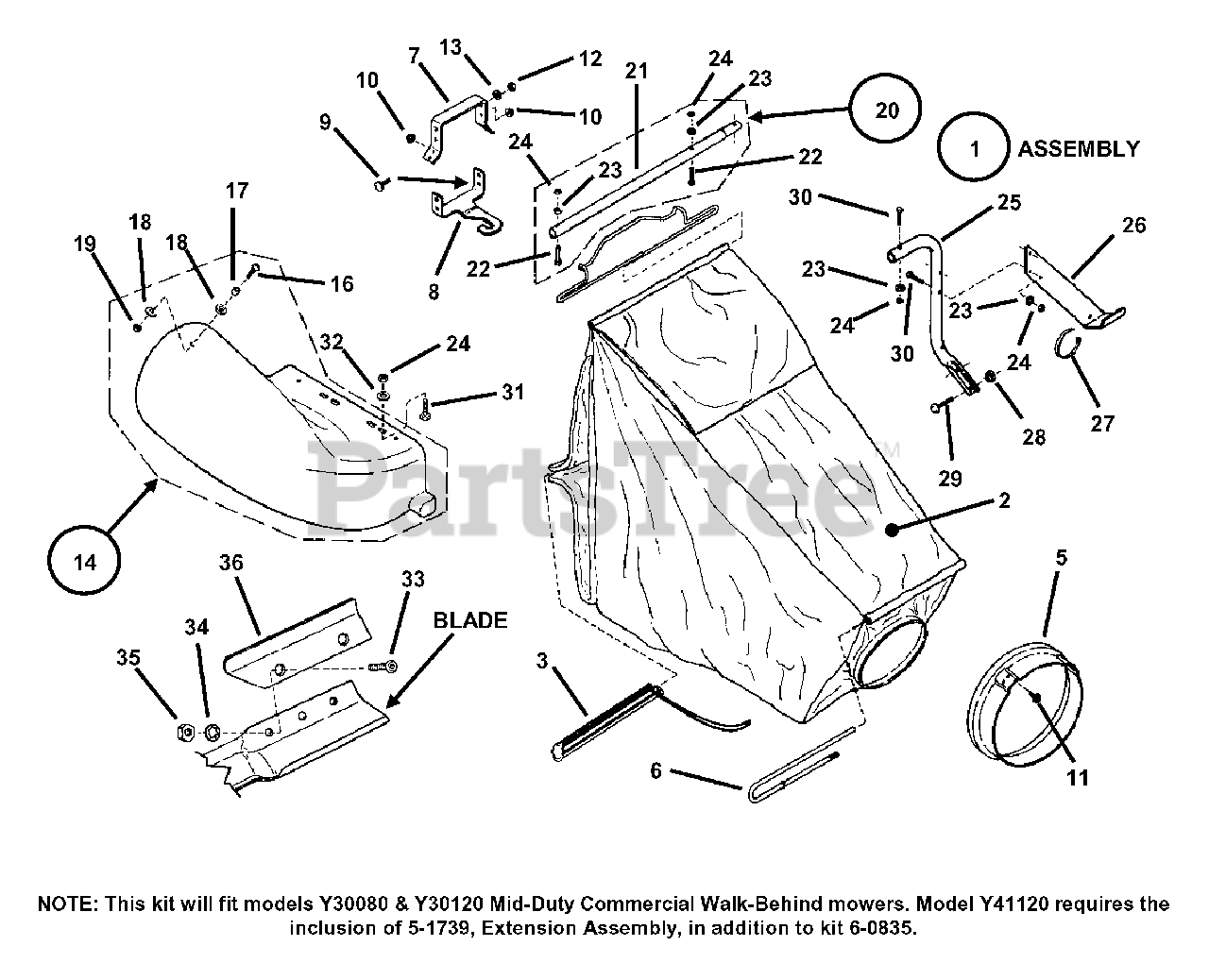

Grass Catcher (Mid-Duty Walk-Behind) Parts Diagram

  • Title

Snapper Part# 7060835

KIT, Grass Catcher

Note: (Incl. 1-36)

Usually ships same day

Currently unavailable

$

$

1

Snapper Part# 7051709

ASS'Y., Bag

Note: (Incl. 2 thru 13)

Usually ships same day

Currently unavailable

$

$

2

Snapper Part# 7016220

BAG, Grass
(Superseded to 7016220YP)

Note: Was 15896

Usually ships same day

Not available

$

$

3

Snapper Part# 7050711

SLIDER, Grass Bag
(Superseded to 7050711YP)

Note: Was 51717 (Incl. Rope)

Usually ships in 1 day

$

$12.13

0

?4

Snapper Part# 7018959

WIRE, Bag Support, Rear
(Superseded to 7018959YP)
Usually ships in 6 to 12 days

$

$5.93

0

5

Snapper Part# 7017008

ADAPTER, Bag, front
(Superseded to 7017008YP)
Usually ships in 6 to 12 days

$

$11.85

0

6

Snapper Part# 7027670

WIRE, Bag, Front
(Superseded to 7027670YP)
Usually ships in 6 to 12 days

$

$22.75

0

7

Snapper Part# 7038336

ADAPTER, Handle
(Superseded to 7038336YP)
Usually ships in 6 to 12 days

$

$19.73

0

8

Snapper Part# 7038337

LATCH, Chute
(Superseded to 7038337YP)
Usually ships in 6 to 12 days

$

$33.26

0

9

Snapper Part# 7090803

BOLT, 1/4-20 x 5/8" Carr.
(Superseded to 703841)
Usually ships in 1 day

$

$2.85

0

10

Snapper Part# 7091584

NUT, 1/4-20 Hex Flange
(Superseded to 703233)

Note: Was 90583

Usually ships in 1 day

$

$3.35

0

11

Snapper Part# 7091530

BOLT, 1/4-20 x 3/4" Carr.
(Superseded to 703101)

Note: Was 90074

Usually ships in 1 day

$

$2.85

0

12

Snapper Part# 7091630

NUT, 3/8-24 Hex
(Superseded to 703895)

Note: Was 90155

Usually ships in 1 day

$

$3.08

0

13

Snapper Part# 7090390

WASHER, 3/8" Int. Tooth Lock
(Superseded to 703930)
Usually ships in 1 day

$

$2.80

0

14

Snapper Part# 7051710

ADAPTER ASS'Y
(Superseded to 7051710YP)

Note: (Incl. 15-19)

Usually ships in 6 to 12 days

$

$160.55

0

?15

Snapper Part# 7051663

CHUTE ASSEMBLY
(Superseded to 7051663YP)
Usually ships in 6 to 12 days

$

$178.87

0

16

Snapper Part# 7091614

SCREW, 1/4-20 x 3/4" Rd. Hd.
(Superseded to 7091614YP)

Note: Was 90847

Usually ships in 6 to 12 days

$

$2.85

0

17

Snapper Part# 7010916

SPACER
(Superseded to 7010916YP)
Usually ships in 1 day

$

$3.91

0

18

Snapper Part# 7011763

WASHER, 5/16" Flat
(Superseded to 7011763SM)
Usually ships in 1 day

$

$3.13

0

19

Snapper Part# 7090372

NUT, 1/4-20 Hex Center Lock
(Superseded to 703954)
Usually ships same day

Not available

$

$

20

Snapper Part# 7051711

SUPPORT ASS'y, Bag, Rear
(Superseded to 7051711YP)

Note: (Includes items 21 thru 24)

Usually ships in 6 to 12 days

$

$57.58

0

21

Snapper Part# 7027671

TUBE, Rear Support, Bag
Usually ships same day

Currently unavailable

$

$

22

Snapper Part# 7090529

BOLT, 1/4-28 x 1-1/4" Hex
(Superseded to 7090529YP)
Usually ships same day

Not available

$

$

23

Snapper Part# 7090053

WASHER, 1/4" Lock
(Superseded to 703462)
Usually ships in 1 day

$

$3.13

0

24

Snapper Part# 7090095

NUT, 1/4-28 Hex
(Superseded to 703461)
Usually ships in 1 day

$

$3.02

0

25

Snapper Part# 7036229

SUPPORT TUBE, Rear Bag
Usually ships same day

Not available

$

$

26

Snapper Part# 7038335

BRACKET, Support
Usually ships same day

Not available

$

$

27
Usually ships same day

Currently unavailable

$

$

28

Snapper Part# 7014729

ROLLER
(Superseded to 7014729YP)
Usually ships in 6 to 12 days

$

$6.65

0

29

Snapper Part# 7090959

BOLT, 5/16-18 x 2-1/2" Carriage
(Superseded to 7090959SM)
Usually ships in 6 to 12 days

$

$2.40

0

30

Snapper Part# 7090552

SCREW, 1/4-28 x 1-3/8"
(Superseded to 703828)
Usually ships in 6 to 12 days

$

$2.85

0

31

Snapper Part# 7090541

SCREW, 1/4-28 x 3/4" Hex
(Superseded to 7090541YP)
Usually ships in 6 to 12 days

$

$2.85

0

32

Snapper Part# 7091098

WASHER, 1/4" Flat
(Superseded to 703302)

Note: Was 90598

Usually ships in 1 day

$

$3.13

0

33

Snapper Part# 7090228

SCREW, 5/16-24 x 21/32"
(Superseded to 7090228SM)
Usually ships in 1 day

$

$4.57

0

34

Snapper Part# 7090391

WASHER, 5/16" Int'l. Tooth
(Superseded to 703587)
Usually ships in 1 day

$

$3.13

0

35

Snapper Part# 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

Usually ships in 1 day

$

$2.68

0

36

Snapper Part# 7031724

AIR LIFT
(Superseded to 7031724YP)
Usually ships in 6 to 12 days

$

$22.91

0
