7060875 - Snapper Rear Mount Grass Catcher Adapter Catcher Adapter Parts Diagram

Rear Mount Grass Catcher Adapter

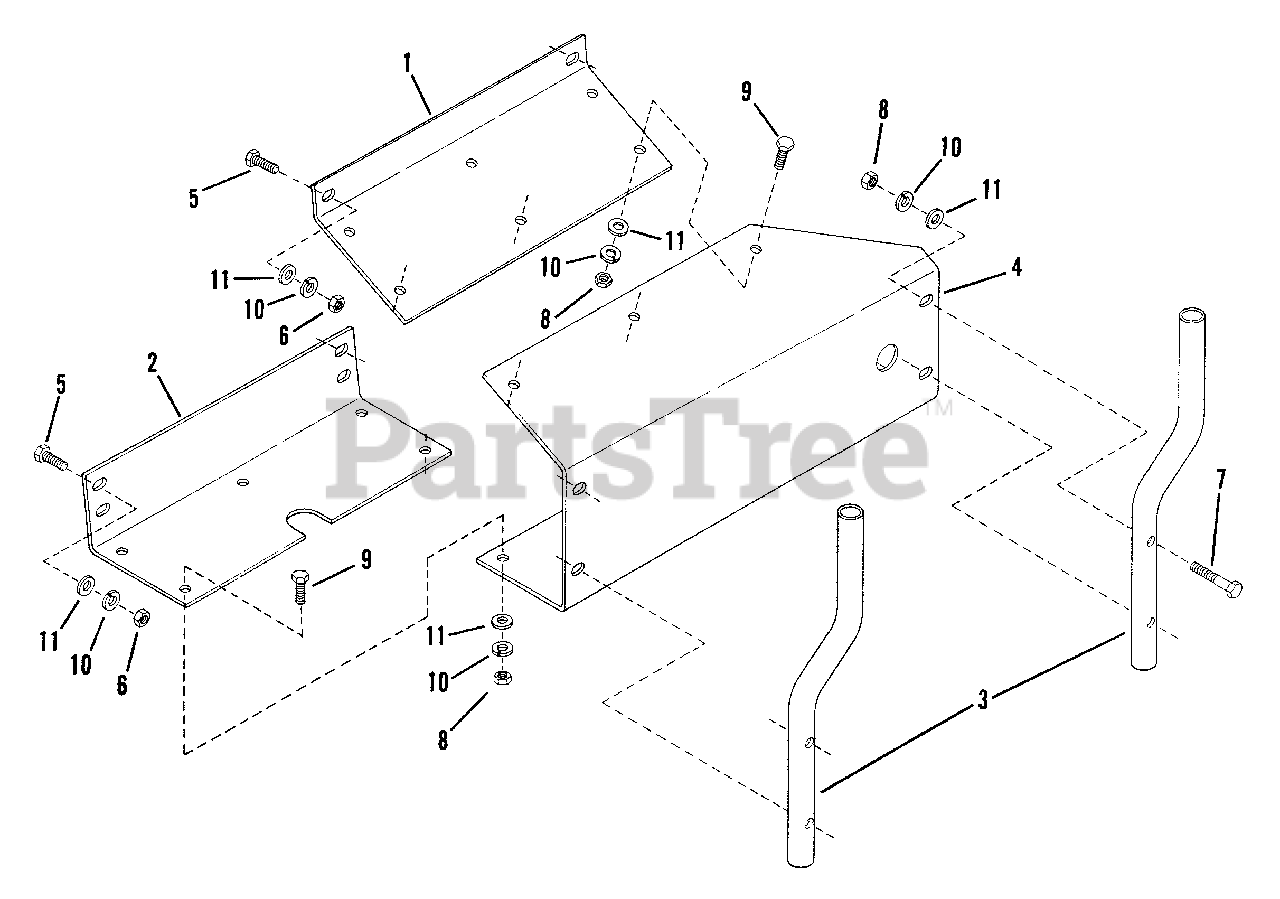

Catcher Adapter Parts Diagram

  • Title

--

Snapper 7060875

KIT, Rear Mount Bagger Adapter

Note: (Incl. items 1 thru 11) (replaces kit 60587)

$

$

Currently unavailable

1

Snapper 7038404

SUPPORT, Upper
(Superseded to 7038404YP)

$50.99

$

Usually ships in 2-12 days

0

2

Snapper 7038405

SUPPORT, Lower

$

$

Not available

3

Snapper 7038406

TUBE
(Superseded to 7038406YP)

$38.99

$

Usually ships in 2-12 days

0

4

Snapper 7036283

MOUNT
(Superseded to 7036283YP)

$76.99

$

Usually ships in 2-12 days

0

5

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, Grade 5
(Superseded to 704287)

Note: Was 90206

$3.99

$

In Stock, Qty 19

0

6

Snapper 7091511

NUT, 5/16-18 Hex, Grade 5
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

7

Snapper 7091609

SCREW, 5/16-24 x 1-1/2" Hex Head Cap, Grade 5
(Superseded to 7091609SM)

Note: Was 90242

$4.99

$

Usually ships in 2-12 days

0

8

Snapper 7091297

NUT, 5/16-24 Hex, Grade 5
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

9

Snapper 7090233

SCREW, 5/16-24 x 3/4" Hex Head Cap
(Superseded to 703336)

$4.49

$

In Stock, only 3 left!

0

10

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

11

Snapper 7090188

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

--

Snapper 7060877

Hardware Bag

Note: (Includes items 5-11)

$

$

Currently unavailable
