7060896 - Snapper Interlock Switch Update Kit Interlock Switch Update Parts Diagram

Interlock Switch Update Kit

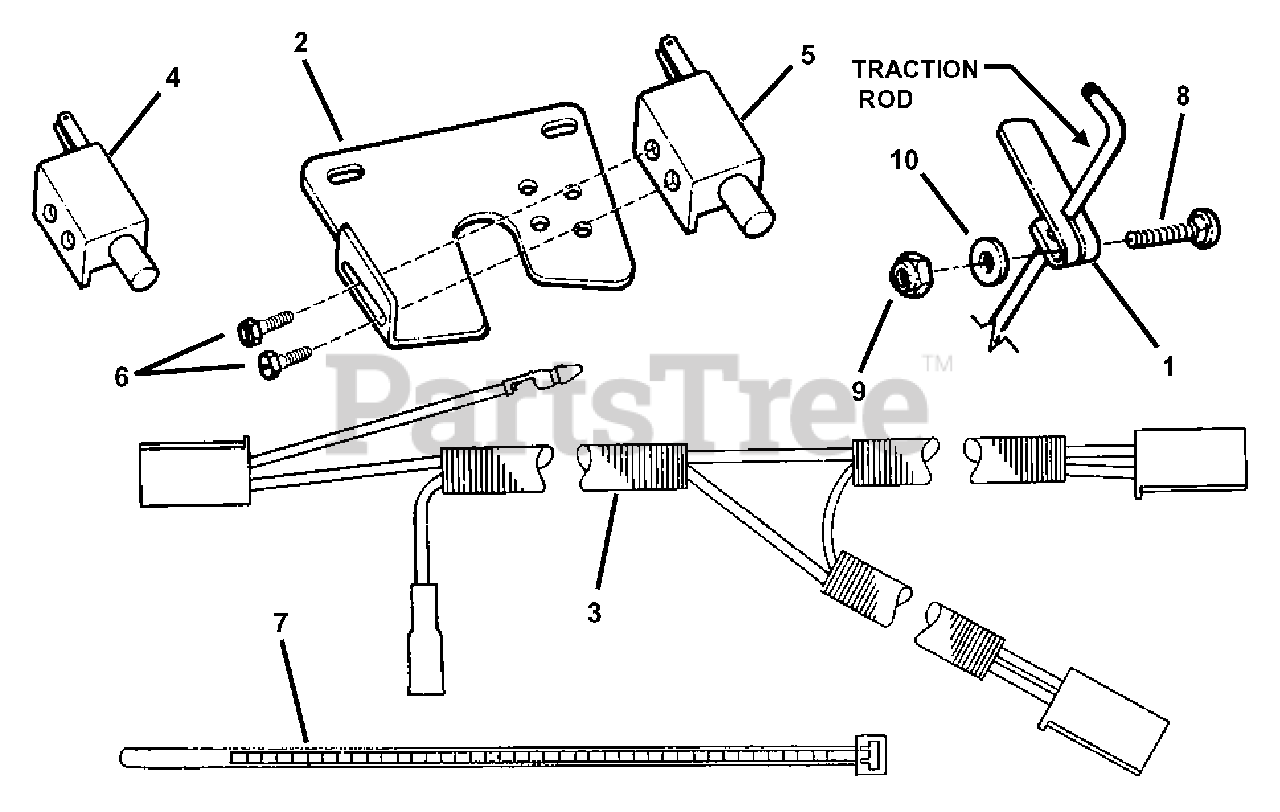

Interlock Switch Update Parts Diagram

  • Title

Snapper 7060896

KIT, Interlock Switch Update

Note: (Includes items 1 thru 10)

$

$

Currently unavailable

1

Snapper 7023405

TAB, Traction Switch

$

$

Currently unavailable

2

Snapper 23406

PLATE, Switch

$

$

Currently unavailable

3

Snapper 23407

HARNESS

$

$

Currently unavailable

4

Snapper 7023408

SWITCH, SP/NC Gray
(Superseded to 7023408YP)

$11.99

$

Usually ships in 2-12 days

0

5

Snapper 7014847

SWITCH, NO Black
(Superseded to 7014847YP)

Note: Was 15668

$10.99

$

Usually ships in 2-12 days

0

6

Snapper 7077873

SCREW, #12-14 x 1/2" Hex Washer Face, Slotted
(Superseded to 7077873YP)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper 7012080

TIE, Plastic
(Superseded to 7012080SM)

Note: Was 76856

$4.99

$

Usually ships in 2-12 days

0

8

Snapper 7090078

BOLT, 1/4-20 x 1-1/4" Square Neck Carriage
(Superseded to 7090947YP)

$5.99

$

In Stock, Qty 12

0

9

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

10

Snapper 7091098

WASHER, 1/4" Flat
(Superseded to 703302)

Note: Was 90598

$4.49

$

In Stock, Qty 20+

0
