7060937 - Snapper Kit Dual Belt Traction Dual Traction Belt Parts Diagram

Kit Dual Belt Traction

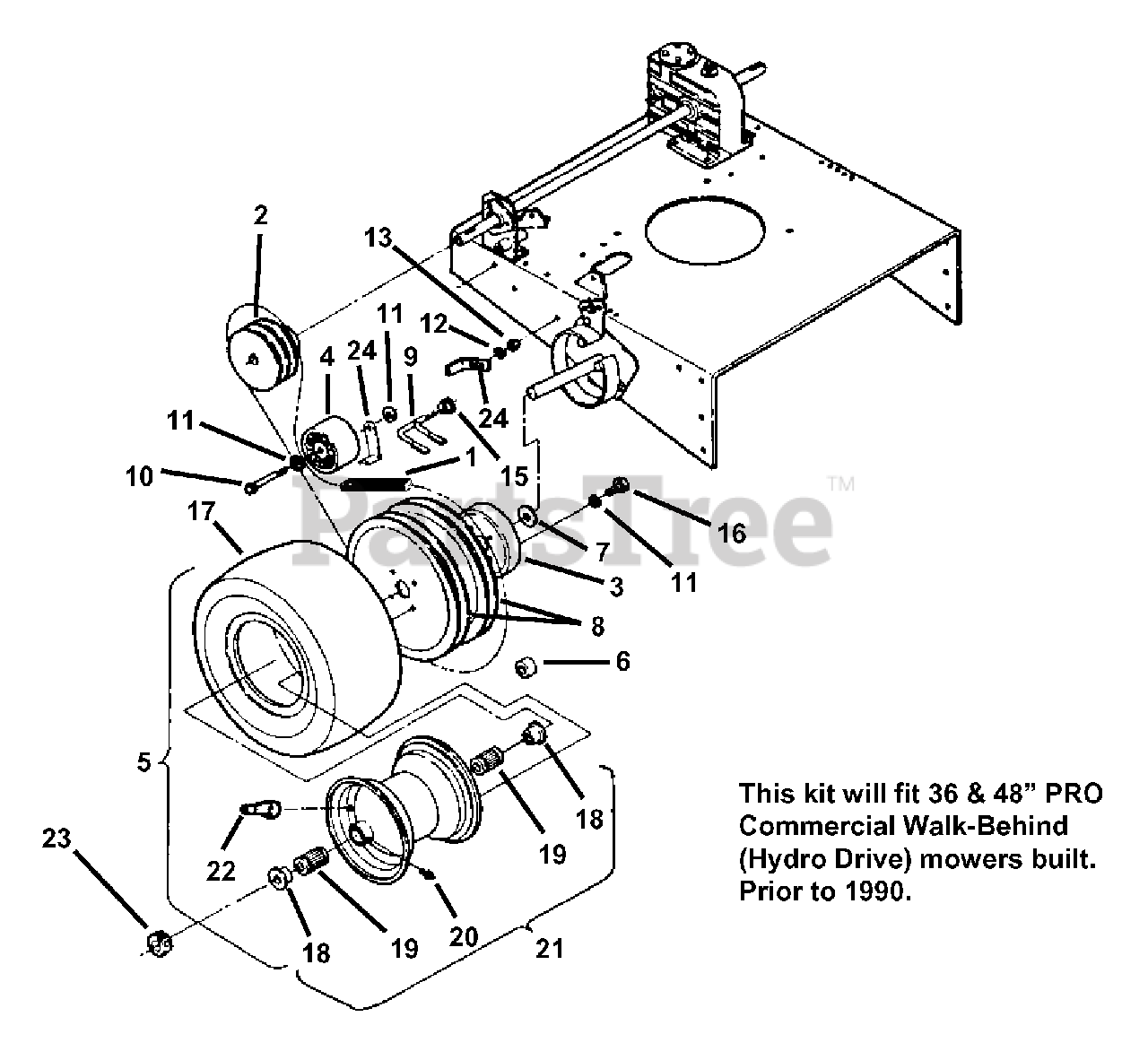

Dual Traction Belt Parts Diagram

  • Title

Snapper 7060937

KIT, Dual Traction Belt

Note: (Incl. 1 thru 25)

$

$

Currently unavailable

1

Snapper 7019202

BELT, Traction (Dual Band)
(Superseded to 7019202YP)

$99.99

$

Usually ships in 2-12 days

0

2

Snapper 7051986

PULLEY, Output
(Superseded to 7051986YP)

Note: Was 19223

$176.99

$

Usually ships in 2-12 days

0

3

Snapper 7019224

HUB, Brake
(Superseded to 7019224YP)

$14.99

$

Usually ships in 2-12 days

0

4

Snapper 7019225

PULLEY, Idler
(Superseded to 7019225YP)

$38.99

$

Usually ships in 2-12 days

0

5

Snapper 7059800

ASSEMBLY, Wheel
(Superseded to 7059800YP)

Note: (Includes 1-9206 & items 17-22)

$173.99

$

Usually ships in 2-12 days

0

Snapper 7019206

ASSEMBLY, Wheel w/o pulley

$

$

Currently unavailable

6

Snapper 7023515

SPACER
(Superseded to 7023515YP)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper 7023787

BUSHING, 7/8"
(Superseded to 7023787SM)

$3.49

$

In Stock, only 1 left!

0

8

Snapper 7038473

PULLEY, Traction
(Superseded to 7038473YP)

$47.99

$

Usually ships in 2-12 days

0

9

Snapper 7040606

SCRAPER

$

$

Not available

10

Snapper 7077670

SCREW, 3/8-24 x 1-3/4" Hex Head Cap, Grade 5

$

$

Currently unavailable

Snapper 7090629

SCREW, 3/8-16 x 2-1/4" Hex Head Cap, Grade 5
(Superseded to 7090629YP)

$2.49

$

Usually ships in 2-12 days

0

11

Snapper 7090118

WASHER, 3/8" Split Lock
(Superseded to 703454)

$3.49

$

In Stock, only 2 left!

0

12

Snapper 7090187

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 5

0

13

Snapper 7091511

NUT, 5/16" Hex, Gr. 5 or B
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, only 2 left!

0

?14

Snapper 7090517

WASHER, 3/8" Flat
(Superseded to 7090517SM)

$4.49

$

In Stock, Qty 8

0

15

Snapper 7091601

NUT, 5/16-18 Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.99

$

In Stock, Qty 13

0

16

Snapper 7090164

SCREW, 3/8-24 x 1-1/2" Hex Head Cap, Grade 5

$

$

Not available

17

Snapper 7023788

TIRE, 13 x 6.50-6 (4 Ply)
(Superseded to 7023788YP)

$120.99

$

Usually ships in 2-12 days

0

18

Snapper 7077312

BUSHING, Flange
(Superseded to 7077312YP)

$6.49

$

Usually ships in 2-12 days

0

19

Snapper 7077313

BEARING, Roller
(Superseded to 7077313YP)

$

$

Not available

20

Snapper 7076998

FITTING, Lube, 1/4-28, Straight
(Superseded to 703153)

$3.99

$

In Stock, Qty 7

0

21

Snapper 7019256

ASSEMBLY, RIM, w/Flange

$

$

Currently unavailable

22

Snapper 7012234

STEM, Air Valve
(Superseded to 7012234SM)

$6.99

$

In Stock, only 3 left!

0

23

Snapper 7077000

COLLAR CLAMP w/Set Screw
(Superseded to 7077000YP)

$38.99

$

Usually ships in 2-12 days

0

24

Snapper 7038513

GUIDE, Belt
(Superseded to 7038513YP)

$6.99

$

Usually ships in 2-12 days

0

?25

Snapper 32865

GUIDE, Belt

$

$

Currently unavailable
