7060943 - Snapper Single Bag Grass Catcher for 28 & 33" RER & 33" LT Series Single Bag Catcher Parts Diagram

Single Bag Grass Catcher for 28 & 33" RER & 33" LT Series

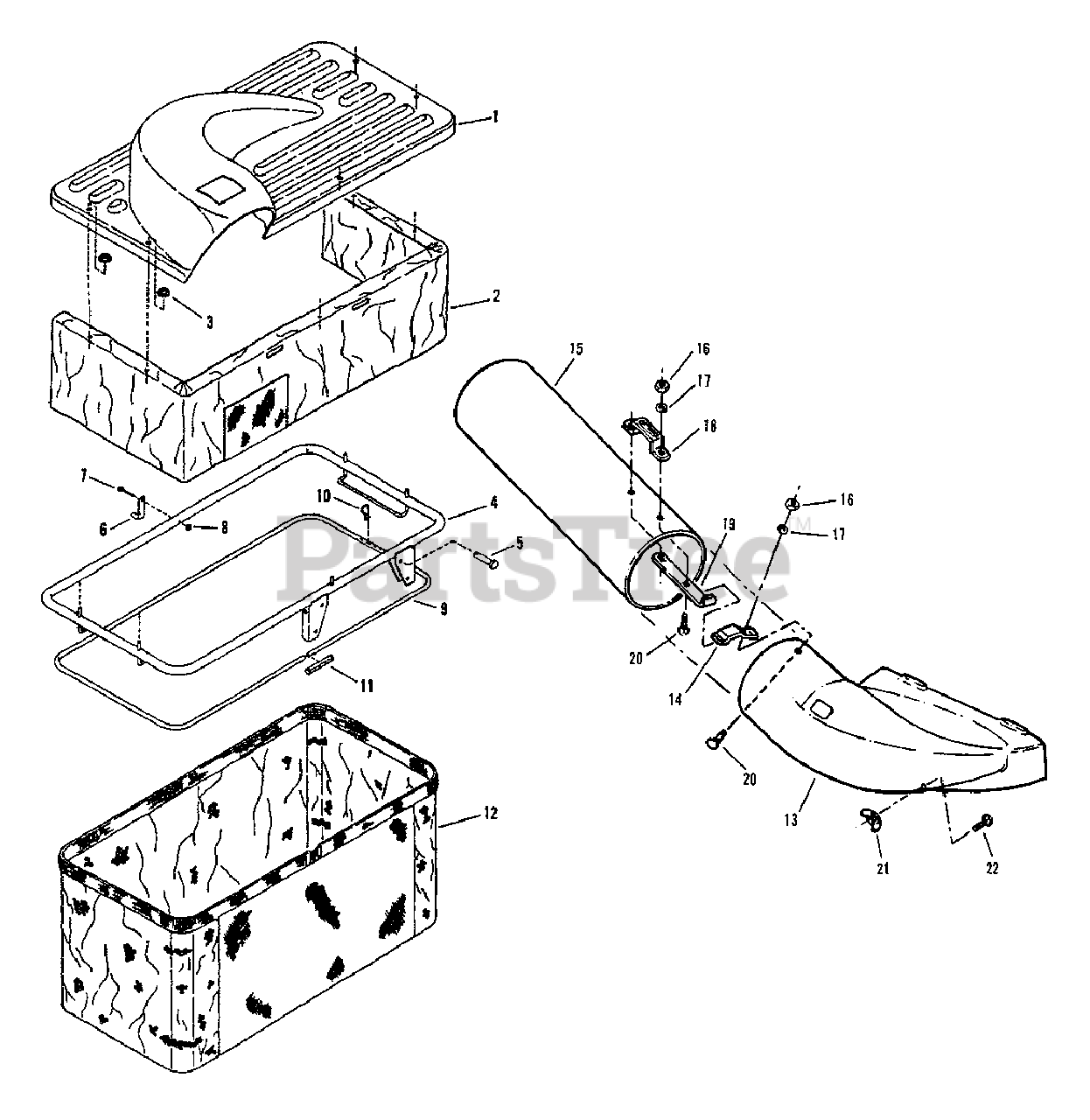

Single Bag Catcher Parts Diagram

  • Title

1

Snapper 7051948

TOP, Container
(Superseded to 7501833YP)

$282.99

$

Usually ships in 2-12 days

0

2

Snapper 7016108

SKIRT, Dust
(Superseded to 7016108YP)

$39.99

$

In Stock, only 1 left!

0

3

Snapper 7029840

WASHER, Faceted
(Superseded to 704315)

$4.49

$

Usually ships in 2-12 days

0

4

Snapper 7047973

FRAME, Grass Bag
(Superseded to 7047973YP)

$204.99

$

In Stock, only 1 left!

0

5

Snapper 7029841

CLEVIS PIN, 5/16 x 1-11/16
(Superseded to 704029)

$4.49

$

In Stock, Qty 6

0

6

Snapper 7031725

LATCH, Grass Catcher
(Superseded to 7031725YP)

$5.49

$

Usually ships in 2-12 days

0

7

Snapper 7090532

SCREW, 10-32 x 1-11/16 Hex Cap
(Superseded to 704316)

$4.99

$

In Stock, only 1 left!

0

8

Snapper 7090376

NUT, 10-32 Hex Lock w/Nylon Insert
(Superseded to 703937)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7037758

ROD, Bag
(Superseded to 7057248YP)

$103.99

$

Usually ships in 2-12 days

0

10

Snapper 7091503

PIN, 3/32 x 1-1/2 Hair
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

11

Snapper 7012556

CONNECTOR, 1/2 x 3" Rod
(Superseded to 7012556YP)

$7.49

$

Usually ships in 2-12 days

0

12

Snapper 7024819

BAG, Single Zipperless
(Superseded to 7024819YP)

Note: Was 19251

$

$

Not available

13

Snapper 7019912

ADAPTER, Bag
(Superseded to 7019912YP)

$134.99

$

In Stock, only 1 left!

0

14

Snapper 7031951

LATCH, Tube
(Superseded to 7031951YP)

$5.99

$

In Stock, Qty 5

0

15

Snapper 7014517

TUBE, Grass
(Superseded to 7014517YP)

$125.99

$

Usually ships in 2-12 days

0

16

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

$3.49

$

In Stock, only 3 left!

0

17

Snapper 7090053

WASHER, 1/4 Lock
(Superseded to 703462)

Note: Was 91314

$4.49

$

In Stock, Qty 12

0

18

Snapper 7037745

HANDLE, Tube
(Superseded to 7037745YP)

$10.99

$

Usually ships in 2-12 days

0

19

Snapper 7031952

BASE, Handle
(Superseded to 7031952YP)

$7.49

$

In Stock, only 2 left!

0

20

Snapper 7091530

BOLT, 1/4-20 X 3/4"
(Superseded to 7091530SM)

$3.99

$

In Stock, Qty 5

0

21

Snapper 7091537

WING-NUT, 5/16-18 Lock
(Superseded to 7091537YP)

$4.49

$

In Stock, Qty 12

0

22

Snapper 7091303

BOLT, 5/16-18 X 1" Carriage
(Superseded to 703800)

$3.99

$

In Stock, Qty 16

0

--

Snapper 7060943

Accessory, Single Bag Grass Catcher

$

$

Not available
