7060945 - Snapper 41" Twin Bag Grass Catcher Catcher Group Parts Diagram

41" Twin Bag Grass Catcher

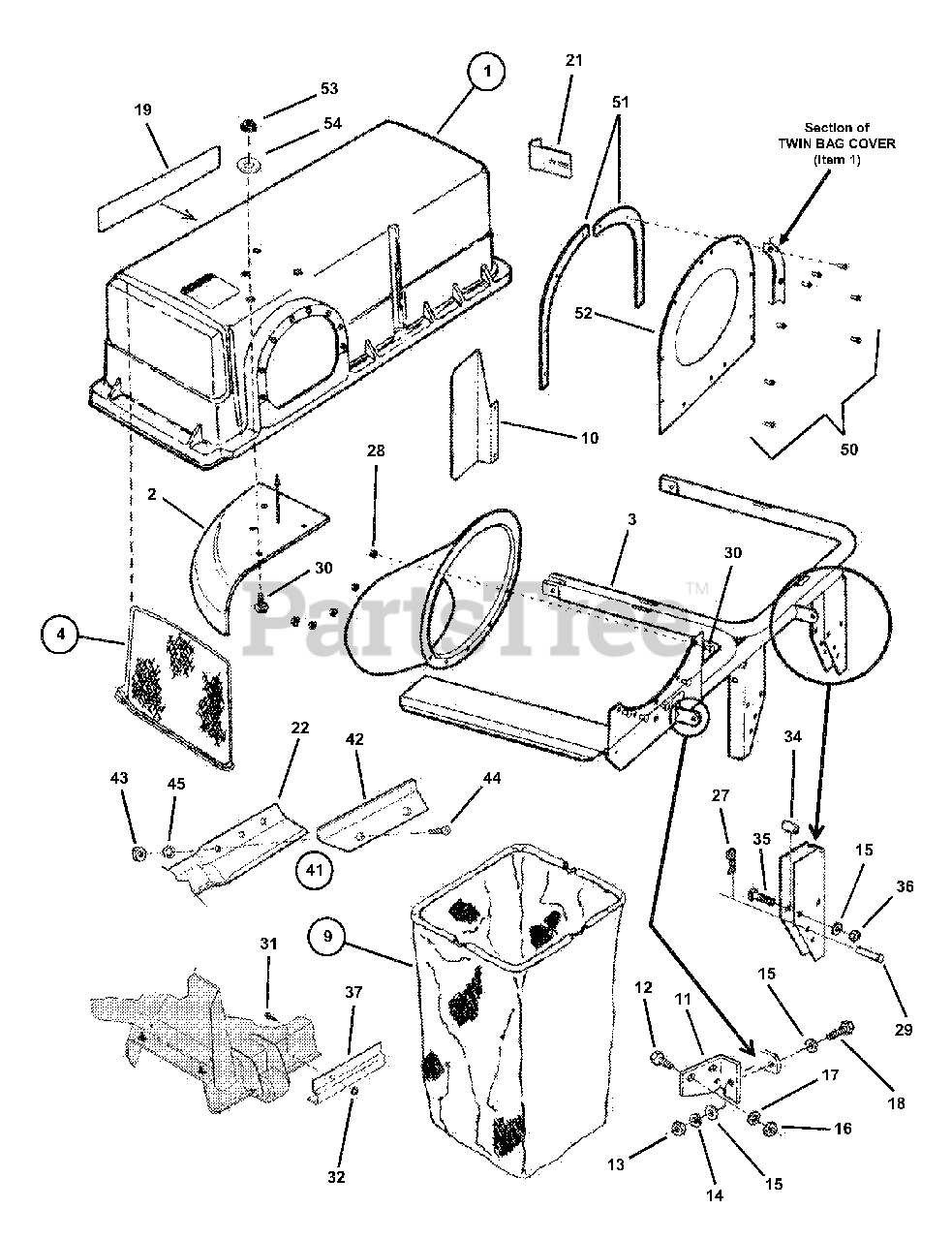

Catcher Group Parts Diagram

  • Title

--

Snapper 7060945

KIT, Grass Catcher

$

$

Currently unavailable

1

Snapper 7059710

ASS'Y, Cover
(Superseded to 7059710YP)

Note: (Incl. Decal 46627 & items 50 thru 52)

$359.99

$

Usually ships in 2-12 days

0

2

Snapper 7019725

SECTOR
(Superseded to 7019725YP)

$87.99

$

Usually ships in 2-12 days

0

3

Snapper 7059937

WELDMENT, Frame
(Superseded to 7059937YP)

$205.99

$

Usually ships in 2-12 days

0

4

Snapper 7057652

ASS'Y, Screen (indented items)

$

$

Currently unavailable

--

Snapper 7019732

FRAME
(Superseded to 7019732YP)

$25.99

$

Usually ships in 2-12 days

0

--

Snapper 7019731

SCREEN
(Superseded to 7019731YP)

$32.99

$

Usually ships in 2-12 days

0

9

Snapper 7051930

ASS'Y, Bag (indented items)

$

$

Not available

--

Snapper 7019250

BAG, Grass Catcher
(Superseded to 7019250YP)

$81.99

$

In Stock, Qty 10

0

--

Snapper 7019965

ROD, Bag Support
(Superseded to 7019965YP)

$87.99

$

Usually ships in 2-12 days

0

--

Snapper 7014456

CONNECTOR, Rod
(Superseded to 7014456YP)

$5.99

$

Usually ships in 2-12 days

0

10

Snapper 7071677

GUARD, Muffler
(Superseded to 7071677YP)

$79.99

$

In Stock, only 1 left!

0

11

Snapper 7038087

HINGE, Top
(Superseded to 7038087YP)

$7.49

$

Usually ships in 2-12 days

0

12

Snapper 7090541

SCREW, 1/4-28 x 3/4"
(Superseded to 7090541YP)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 7090222

NUT, 5/16-24 Hex Center Lock
(Superseded to 703896)

$3.49

$

In Stock, Qty 8

0

14

Snapper 7090187

WASHER, 5/16" Split
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

15

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

16

Snapper 7090095

NUT, 1/4-28 Hex
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

17

Snapper 7090053

WASHER, 1/4" Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 13

0

18

Snapper 7090238

SCREW, 5/16-24 x 1" Cap
(Superseded to 703301)

$3.99

$

In Stock, Qty 6

0

19

Snapper 7019295

DECAL, Snapper
(Superseded to 7019295YP)

Note: Was 18593

$13.99

$

In Stock, only 4 left!

0

21

Snapper 7031954

SUPPORT, Bumper
(Superseded to 7031954YP)

$13.99

$

Usually ships in 2-12 days

0

22

Snapper 7019795

BLADE, 21" Air Lift
(Superseded to 7019795BZYP)

$28.99

$

In Stock, only 4 left!

0

27

Snapper 7091503

PIN, 3/32 x 1-1/2" Hair
(Superseded to 7091503SM)

Note: Included in Hardware Bag 60773

$3.99

$

In Stock, Qty 20+

0

28

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Included in Hardware Bag 60773

$4.49

$

In Stock, only 2 left!

0

29

Snapper 7029841

PIN, 5/16 x 1-11/16" Clevis
(Superseded to 704029)

$4.49

$

In Stock, Qty 6

0

30

Snapper 7091604

BOLT, 1/4-20 x 1/2" Carriage
(Superseded to 703978)

Note: Included in Hardware Bag 60773

$3.99

$

In Stock, only 2 left!

0

31

Snapper 7091613

SCREW, 5/16-18 x 3/4" Carr.
(Superseded to 7091613YP)

Note: Included in Hardware Bag 60773

$3.49

$

Usually ships in 2-12 days

0

32

Snapper 7091601

NUT, 5/16-18 Hex Flge. Lock
(Superseded to 703409)

Note: Included in Hardware Bag 60773

$5.49

$

In Stock, Qty 20+

0

34

Snapper 7023797

PAD, Bumper Mount
(Superseded to 7023797YP)

$2.99

$

Usually ships in 2-12 days

0

35

Snapper 7091612

BOLT, 5/16-18 x 1-1/2" Carr.
(Superseded to 704210)

Note: Was 90582

$4.99

$

In Stock, only 2 left!

0

36

Snapper 7091575

NUT, 5/16-18 Hex Ctr. Lock
(Superseded to 703164)

Note: Included in Hardware Bag 60773

$3.49

$

In Stock, Qty 10

0

37

Snapper 7038277

BAFFLE

$

$

Not available

41

Snapper 7060735

KIT, Air Lift
(Superseded to 7060735YP)

Note: (Incl. indented items)

$62.99

$

Usually ships in 2-12 days

0

42

Snapper 7031724

AIR LIFT
(Superseded to 7031724YP)

$27.99

$

Usually ships in 2-12 days

0

43

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

44

Snapper 7090228

SCREW, 5/16-24 x 21/32"
(Superseded to 7090228SM)

$5.49

$

In Stock, only 4 left!

0

45

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

50

Snapper 7090896

SCREW, #10-24 x 1/2" S.Tap
(Superseded to 7090896YP)

Note: Was 90853

$3.49

$

In Stock, only 3 left!

0

51

Snapper 7038276

CLAMP

$

$

Not available

52

Snapper 7019794

SEAL
(Superseded to 7019794YP)

$35.99

$

Usually ships in 2-12 days

0

53

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Included in Hardware Bag 60773

$3.49

$

In Stock, only 4 left!

0

54

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 17

0
