7060945 - Snapper 41" Twin Bag Grass Catcher Chute Group Parts Diagram

41" Twin Bag Grass Catcher

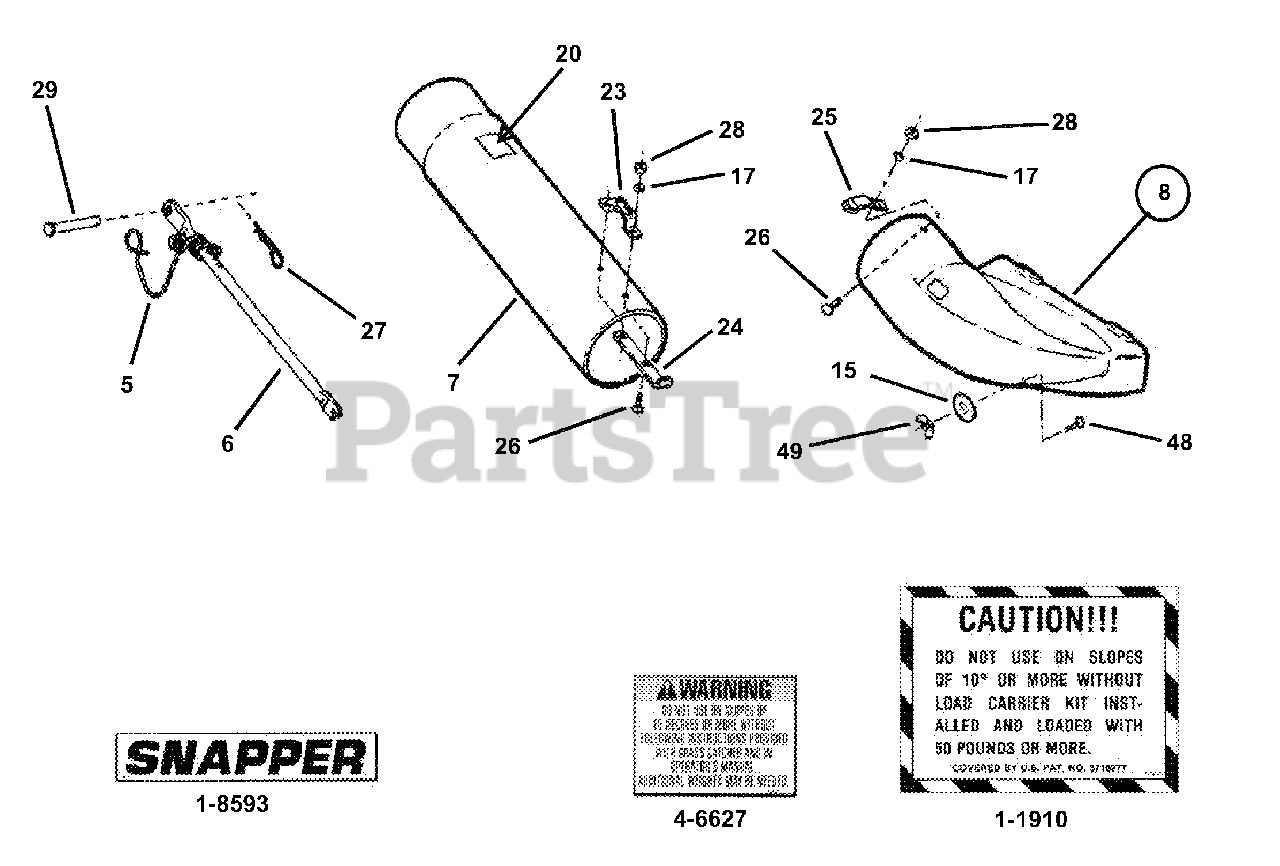

Chute Group Parts Diagram

  • Title

--

Snapper 7060945

KIT, Grass Catcher

$

$

Currently unavailable

5

Snapper 7051407

ASSEMBLY, Spring & Hook
(Superseded to 7051407YP)

$39.99

$

Usually ships in 2-12 days

0

6

Snapper 7036073

BRACE, Rear (24-1/2" Long)
(Superseded to 7036073YP)

$49.99

$

Usually ships in 2-12 days

0

--

Snapper 7046573

BRACE, Rear (24-13/16" Long)

$

$

Not available

7

Snapper 7017318

TUBE, Grass (46" long)

$

$

Currently unavailable

8

Snapper 7051663

ADAPTER,
(Superseded to 7051663YP)

Note: (Includes Decal 46720)

$210.99

$

Usually ships in 2-12 days

0

15

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

Usually ships in 2-12 days

0

17

Snapper 7090053

WASHER, 1/4" Internal Tooth Lock
(Superseded to 703462)

$4.49

$

In Stock, Qty 5

0

20

Snapper 7011910

DECAL, Caution
(Superseded to 7011910YP)

$11.99

$

Usually ships in 2-12 days

0

23

Snapper 7037745

HANDLE, Tube
(Superseded to 7037745YP)

Note: Included in Hardware Bag 60773

$11.99

$

In Stock, only 2 left!

0

24

Snapper 7031952

BASE, Tube Handle
(Superseded to 7031952YP)

Note: Included in Hardware Bag 60773

$7.99

$

In Stock, only 2 left!

0

25

Snapper 7031951

LATCH, Chute Tube
(Superseded to 7031951YP)

Note: Included in Hardware Bag 60773

$6.49

$

In Stock, only 2 left!

0

26

Snapper 7090803

SCREW, 1/4-20 x 3/4" Mach.
(Superseded to 703841)

Note: Included in Hardware Bag 60773

$3.99

$

Usually ships in 2-12 days

0

27

Snapper 7091503

PIN, 3/32 x 1-1/2" Hair
(Superseded to 7091503SM)

Note: Included in Hardware Bag 60773

$3.99

$

In Stock, Qty 20+

0

28

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Included in Hardware Bag 60773

$4.49

$

In Stock, Qty 6

0

29

Snapper 7029841

PIN, 5/16 x 1-11/16" Clevis
(Superseded to 704029)

$4.49

$

In Stock, only 2 left!

0

48

Snapper 7091303

BOLT, 5/16-18 x 1" Carriage
(Superseded to 703800)

Note: Included in Hardware Bag 60773

$3.99

$

In Stock, Qty 18

0

49

Snapper 7091537

WING LOCKNUT, 5/16-18
(Superseded to 7091537YP)

Note: Included in Hardware Bag 60773

$4.49

$

In Stock, only 2 left!

0

1-8593

Snapper 7019295

DECAL, SNAPPER
(Superseded to 7019295YP)

Note: Was 18593

$14.99

$

In Stock, only 2 left!

0

4-6627

Snapper 7046627

DECAL, GRASS BAG WARNING
(Superseded to 7046627YP)

$7.99

$

In Stock, only 2 left!

0

1-1910

Snapper 7011910

DECAL, GRASS CATCHER
(Superseded to 7011910YP)

$11.99

$

Usually ships in 2-12 days

0
