7061207 - Snapper Backside Dual Idler Kit Backside Idler (Part 1) Parts Diagram

Backside Dual Idler Kit

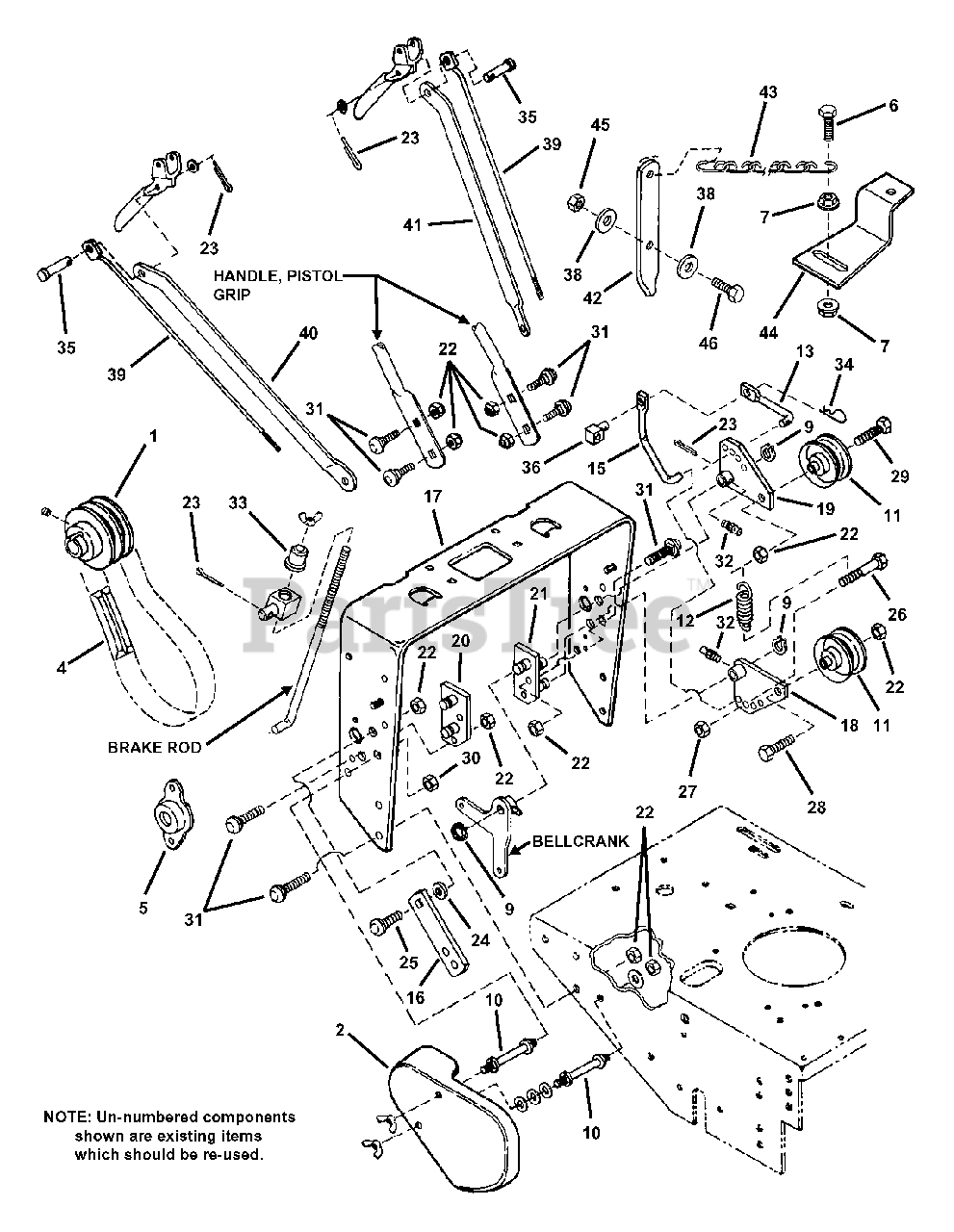

Backside Idler (Part 1) Parts Diagram

  • Title

Snapper 7061207

KIT, Backside Dual Idler (Pistol Grip)

Note: (Includes items 1 thru 46)

$

$

Currently unavailable

1

Snapper 7024708

PULLEY, 3-1/4" (transmission out)

$

$

Not available

2

Snapper 7024713

FENDER, Left

Note: (not shown)

$

$

Currently unavailable

3

Snapper 7024714

FENDER, Right
(Superseded to 7024714YP)

Note: (shown)

$54.99

$

Usually ships in 2-12 days

0

4

Snapper 7024891

BELT, PRO 7 Traction
(Superseded to 7024891YP)

Note: (2RA Section, 50.96" Effective Length)

$121.99

$

Usually ships in 2-12 days

0

5

Snapper 7033718

FLANGE, Output
(Superseded to 7033718YP)

$8.49

$

In Stock, only 2 left!

0

6

Snapper 7027230

SCREW, 1/4-20 x 1" Hex Head Cap, Grade 5
(Superseded to 703820)

Note: Was 90548

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, Qty 6

0

8

Snapper 7052991

ASSEMBLY, Tank Bracket

Note: (Includes items 9 thru 32)

$

$

Currently unavailable

9

Snapper 7010739

RING, 5/8" External Retaining
(Superseded to 7010739SM)

$3.49

$

In Stock, only 1 left!

0

10

Snapper 7022768

STUD, Fender Mount (3/8-16 thread)
(Superseded to 7022768YP)

$45.99

$

In Stock, Qty 5

0

11

Snapper 7024707

PULLEY, 3-1/4" Idler
(Superseded to 7024707YP)

$91.99

$

Usually ships in 2-12 days

0

12

Snapper 7029740

SPRING, Extension
(Superseded to 7029740YP)

Note: Was 24717

$

$

Not available

13

Snapper 7033713

LINK, Short

$

$

Not available

14

Snapper 7033714

LINK, Long Right Hand
(Superseded to 7033714YP)

Note: (not shown)

$6.99

$

In Stock, only 1 left!

0

15

Snapper 7033715

LINK, Long Left Hand
(Superseded to 7033715YP)

Note: (shown)

$9.49

$

In Stock, only 1 left!

0

16

Snapper 7033720

ARM, Brake
(Superseded to 7033720YP)

$73.99

$

Usually ships in 2-12 days

0

17

Snapper 7033726

FORM, Tank Bracket

$

$

Currently unavailable

18

Snapper 7041357

WELDMENT, Idler Lower Left/Upper Right
(Superseded to 7041357YP)

$82.99

$

Usually ships in 2-12 days

0

19

Snapper 7041358

WELDMENT, Upper Left/Lower Right
(Superseded to 7041358YP)

$63.99

$

Usually ships in 2-12 days

0

20

Snapper 7041359

WELDMENT, Idler Pivot Right Hand
(Superseded to 7041359YP)

$82.99

$

Usually ships in 2-12 days

0

21

Snapper 7041360

WELDMENT, Idler Pivot Left Hand

$

$

Not available

22

Snapper 7091299

NUT, 3/8-16 Hex Nyloc
(Superseded to 703117)

Note: Was 76979

$3.99

$

In Stock, Qty 20+

0

23

Snapper 7091313

PIN, 3/32 x 1" Cotter
(Superseded to 704058)

Note: Was 90038

$3.49

$

In Stock, only 2 left!

0

24

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

25

Snapper 7091923

BOLT, 3/8-16 x 3/4" Square Neck, Grade 2
(Superseded to 7091923SM)

Note: Was 90136

$3.49

$

Usually ships in 2-12 days

0

26

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, Grade 5
(Superseded to 5025011X6SM)

Note: Was 90206

$3.99

$

In Stock, only 2 left!

0

27

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.99

$

In Stock, Qty 20+

0

28

Snapper 7091305

SCREW, 3/8-16 x 2" Hex Head Cap, Grade 5
(Superseded to 7091305SM)

Note: Was 90588

$4.49

$

In Stock, Qty 20+

0

29

Snapper 7090637

SCREW, 3/8-16 x 2-1/2" Hex Head Cap, Grade 5
(Superseded to 7090637YP)

$3.49

$

Usually ships in 2-12 days

0

30

Snapper 7090665

NUT, 3/8-16 Hex Jam
(Superseded to 703996)

$5.49

$

In Stock, Qty 8

0

31

Snapper 7091640

BOLT, 3/8-16 x 1" Round Head Square Neck, Grade 5
(Superseded to 703814)

Note: Was 90747

$4.49

$

In Stock, only 4 left!

0

32

Snapper 7076998

FITTING, Grease, 1/4-28 Thread
(Superseded to 703153)

$3.99

$

In Stock, Qty 8

0

33

Snapper 7012306

BUSHING, .381 I.D. Flange
(Superseded to 703973)

$6.49

$

In Stock, Qty 5

0

34

Snapper 7091310

PIN, #13 Hair
(Superseded to 703430)

Note: Was 16231

$3.49

$

In Stock, Qty 8

0

35

Snapper 7024590

PIN, Reverse PG
(Superseded to 7024590YP)

$3.99

$

Usually ships in 2-12 days

0

36

Snapper 7024607

SWIVEL, Brake Link PM
(Superseded to 7024607YP)

$8.99

$

In Stock, only 1 left!

0

37

Snapper 7091304

SCREW, 3/8-16 x 1" Hex Head Cap, Grade 5
(Superseded to 703407)

Note: Was 90563

$11.99

$

Usually ships in 2-12 days

0

38

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

39

Snapper 7029156

ROD, Traction, Pistol Grip
(Superseded to 7029156YP)

Note: Was 24710

$18.99

$

Usually ships in 2-12 days

0

40

Snapper 7033719

STRAP, Brake Pistol Grip, Left Side

$

$

Currently unavailable

41

Snapper 7033725

STRAP, Brake Pistol Grip, Right Side

$

$

Not available

42

Snapper 7033687

LEVER, Reverse, Pistol Grip
(Superseded to 7033687YP)

$20.99

$

Usually ships in 2-12 days

0

43

Snapper 7024589

CHAIN, Reverse, Pistol Grip
(Superseded to 7024589YP)

$14.99

$

Usually ships in 2-12 days

0

44

Snapper 7033798

ARM, Reverse
(Superseded to 7033798YP)

$9.49

$

Usually ships in 2-12 days

0

45

Snapper 7091175

NUT, M6 Hex Lock

$

$

Currently unavailable

46

Snapper 7091176

SCREW, M6 x 14 Hex Head Cap

$

$

Currently unavailable
