7061312 - Snapper 38" Single Grass Catcher Grass Catcher Parts Diagram

38" Single Grass Catcher

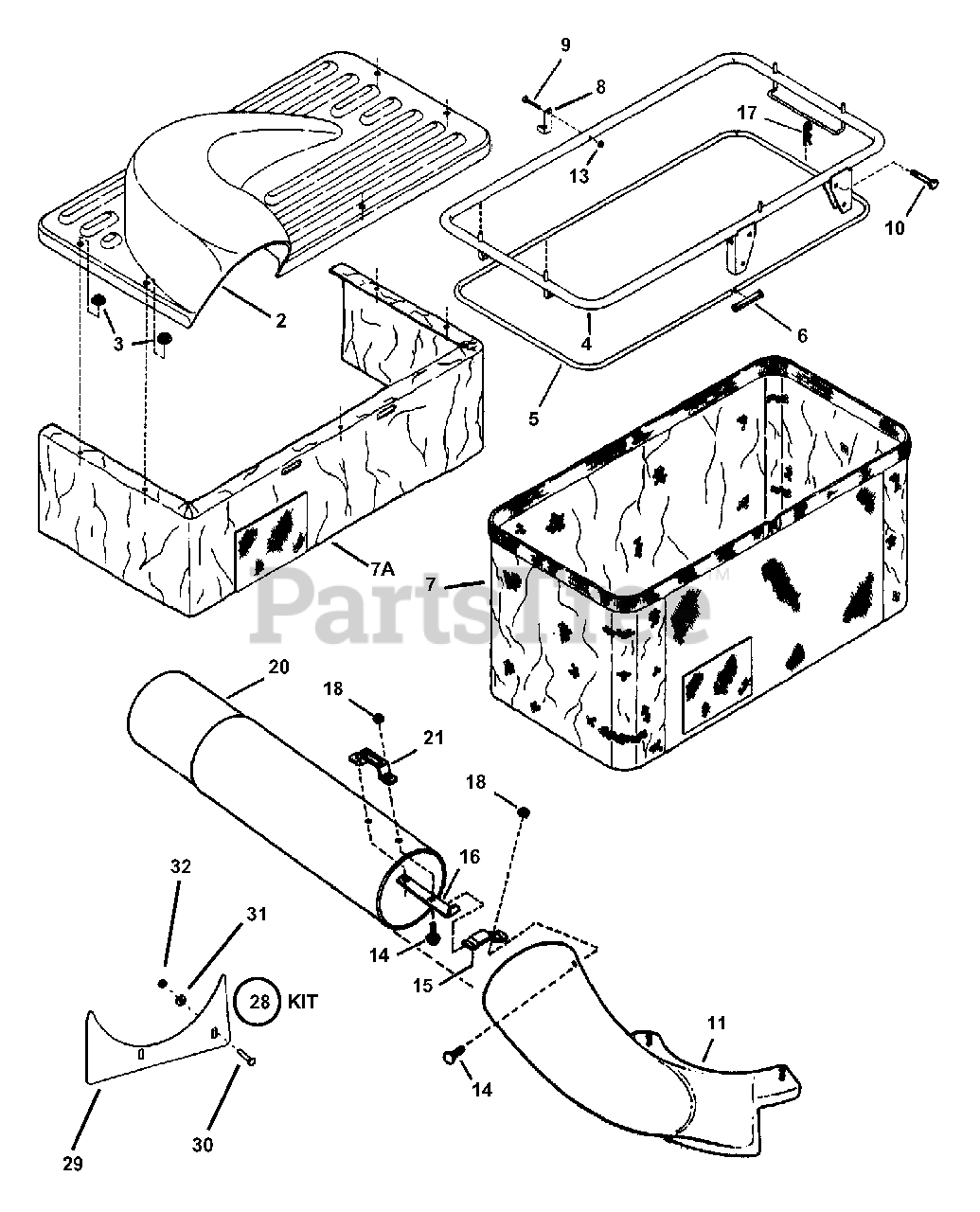

Grass Catcher Parts Diagram

  • Title

--

Snapper 7061312

KIT, Single Bag Grass Catcher

Note: (Incl. Items 2 thru 28)

$

$

Currently unavailable

2

Snapper 7051948

TOP, Container
(Superseded to 7501833YP)

Note: (Includes Decal No. 11910)

$282.99

$

Usually ships in 2-12 days

0

3

Snapper 7029840

WASHER, Faceted
(Superseded to 704315)

$4.49

$

Usually ships in 2-12 days

0

4

Snapper 7047973

FRAME, Structure
(Superseded to 7047973YP)

$204.99

$

In Stock, only 1 left!

0

5

Snapper 7037758

ROD, Bag
(Superseded to 7057248YP)

$103.99

$

Usually ships in 2-12 days

0

6

Snapper 7012556

CONNECTOR, Bag Rod
(Superseded to 7012556YP)

$7.49

$

Usually ships in 2-12 days

0

7

Snapper 7024819

BAG, Grass
(Superseded to 7024819YP)

Note: Was 19251

$

$

Not available

7A

Snapper 7016108

SKIRT, Dust
(Superseded to 7016108YP)

$39.99

$

In Stock, only 1 left!

0

8

Snapper 7031725

LATCH, Top
(Superseded to 7031725YP)

$5.49

$

Usually ships in 2-12 days

0

9

Snapper 7090532

SCREW, #10-32 Hex Head Cap, Grade 2
(Superseded to 704316)

$4.99

$

In Stock, only 1 left!

0

10

Snapper 7029841

PIN, 5/16 x 1-11/16" Clevis
(Superseded to 704029)

$4.49

$

In Stock, Qty 6

0

11

Snapper 7026814

ADAPTER, 38" Deck

$

$

Not available

--

Snapper 7033995

BAFFLE
(Superseded to 7033995YP)

$88.99

$

Usually ships in 2-12 days

0

13

Snapper 7090376

NUT, #10-32 Hex Nyloc
(Superseded to 703937)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper 7091530

BOLT, 1/4-20 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 7091530SM)

$3.99

$

In Stock, Qty 5

0

15

Snapper 7031951

LATCH, Tube
(Superseded to 7031951YP)

$5.99

$

In Stock, Qty 5

0

16

Snapper 7031952

BASE, Handle
(Superseded to 7031952YP)

$7.49

$

In Stock, only 2 left!

0

17

Snapper 7091503

PIN, 3/32 x 1-1/2" Hair
(Superseded to 7091503SM)

$3.99

$

In Stock, Qty 20+

0

18

Snapper 7091576

NUT, 1/4-20 Hex, Grade 5 or B
(Superseded to 703127)

$3.49

$

In Stock, only 3 left!

0

--

Snapper 7090053

WASHER, 1/4" Internal Tooth Lock
(Superseded to 703462)

Note: Was 91314

$4.49

$

In Stock, Qty 12

0

--

Snapper 7090824

SCREW, 3/8-24 x 1-1/4" Hex Head Cap, Grade 5
(Superseded to 7090824YP)

Note: (Blade Retaining Screw- not shown)

$4.99

$

In Stock, Qty 14

0

20

Snapper 7027915

TUBE, Grass
(Superseded to 7027915YP)

$137.99

$

Usually ships in 2-12 days

0

21

Snapper 7037745

HANDLE, Tube
(Superseded to 7037745YP)

$10.99

$

Usually ships in 2-12 days

0

--

Snapper 7060480

KIT, Air Lift
(Superseded to 7060480SM)

Note: (Includes items 22 thru 26)

$

$

Not available

--

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

--

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

--

Snapper 7037723

AIR-LIFT
(Superseded to 7037723BMYP)

$8.49

$

Usually ships in 2-12 days

0

--

Snapper 7090228

SCREW, 5/16-24 x 11/16" Oval Head Machine, Grade 5
(Superseded to 7090228SM)

$5.49

$

In Stock, only 4 left!

0

--

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

$3.49

$

In Stock, Qty 10

0

28

Snapper 7063289

KIT, Catcher, Debris Shield
(Superseded to 7063289YP)

Note: (Incl. items 29-32)

$29.99

$

Usually ships in 2-12 days

0

29

Snapper 7063287

SHIELD, Debris
(Superseded to 7063289YP)

$29.99

$

Usually ships in 2-12 days

0

30

Snapper 7090909

BOLT, 1/4-20 x 1-1/2" Hex
(Superseded to 703234)

$4.49

$

In Stock, only 3 left!

0

31

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 11

0

32

Snapper 7091705

NUT, 1/4-20 Hex top Lock
(Superseded to 704319)

$3.49

$

Usually ships in 2-12 days

0
