7061853 - Snapper Grass Catcher Mount Kit

Grass Catcher Mount Kit

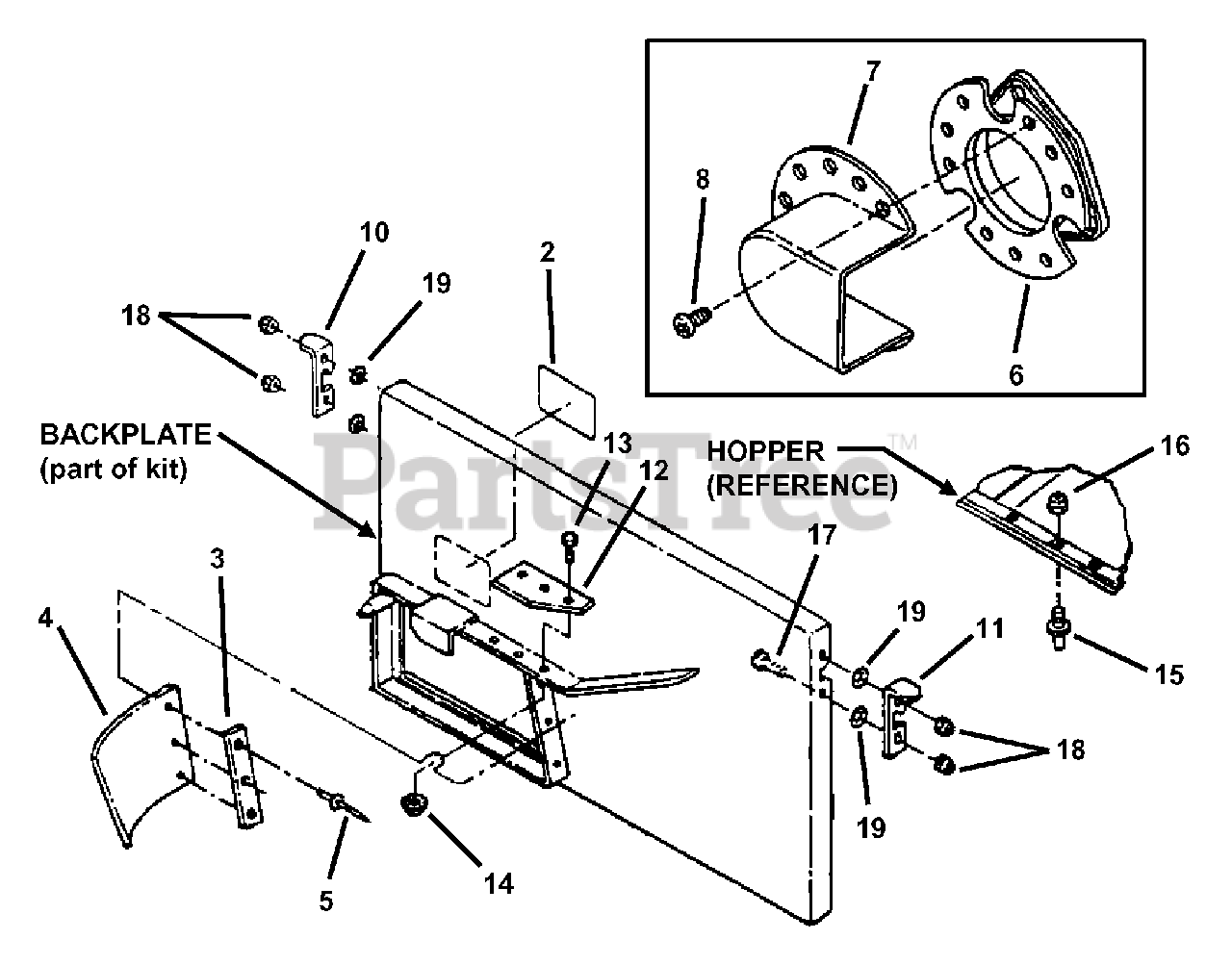

7061853 - Snapper Grass Catcher Mount Kit > Parts Diagrams (1) > Grass Catcher Mount

  • Title
7061853

KIT, Grass Catcher Mount

Part# 7061853

Note: (Includes items 1 thru 9)

OEM Warranty Repair Part for Snapper

Not available

7054067

?1

ASSEMBLY, Backplate

Part# 7054067

OEM Warranty Repair Part for Snapper

Currently unavailable

7022522

2

DECAL, Warning

Part# 7022522 (Superseded to 7022522YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $9.95

7033198

3

PLATE, Backing

Part# 7033198 (Superseded to 7033198YP)

OEM Warranty Repair Part for Snapper

Not available

7033199

4

STRIP, Side Sealing

Part# 7033199

OEM Warranty Repair Part for Snapper

Not available

7091134

5

POP RIVETS

Part# 7091134

OEM Warranty Repair Part for Snapper

Currently unavailable

7034156

6

CAP, Deflector

Part# 7034156 (Superseded to 7034156YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $32.76

7034157

7

DEFLECTOR, Exhaust

Part# 7034157 (Superseded to 7034157YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $37.73

7034158

8

SCREW, Deflector Mounting

Part# 7034158 (Superseded to 7034158YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $3.24

7061108

?9

BAG, Hardware

Part# 7061108

Note: (Includes the items listed below)

OEM Warranty Repair Part for Snapper

Currently unavailable

7033433

10

LATCH, Left Side

Part# 7033433 (Superseded to 7033433YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $8.78

7033432

11

LATCH, Right Side

Part# 7033432 (Superseded to 7033432YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $8.78

7042751

12

STRIP, Top Seal

Part# 7042751

OEM Warranty Repair Part for Snapper

Currently unavailable

7091495

13

SCREW, 1/4-20 x 3/4" Hex Head Cap

Part# 7091495 (Superseded to 703925)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $2.74

7091545

14

NUT, 1/4-20 Hex Flange Lock

Part# 7091545 (Superseded to 703916)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $3.41

7015464

15

STUD, 3/8-24 Thread

Part# 7015464 (Superseded to 7015464YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $5.09

7090854

16

NUT, 3/8-24 Hex Nyloc

Part# 7090854 (Superseded to 703901)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $2.29

7076952

17

SCREW, #10-24 x 5/8" Pan Head

Part# 7076952 (Superseded to 7076952YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.74

7091290

18

NUT, #10-24 Hex Nyloc

Part# 7091290 (Superseded to 703412)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $2.85

7073953

19

WAVE WASHER (spring)

Part# 7073953 (Superseded to 7073953YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.63
