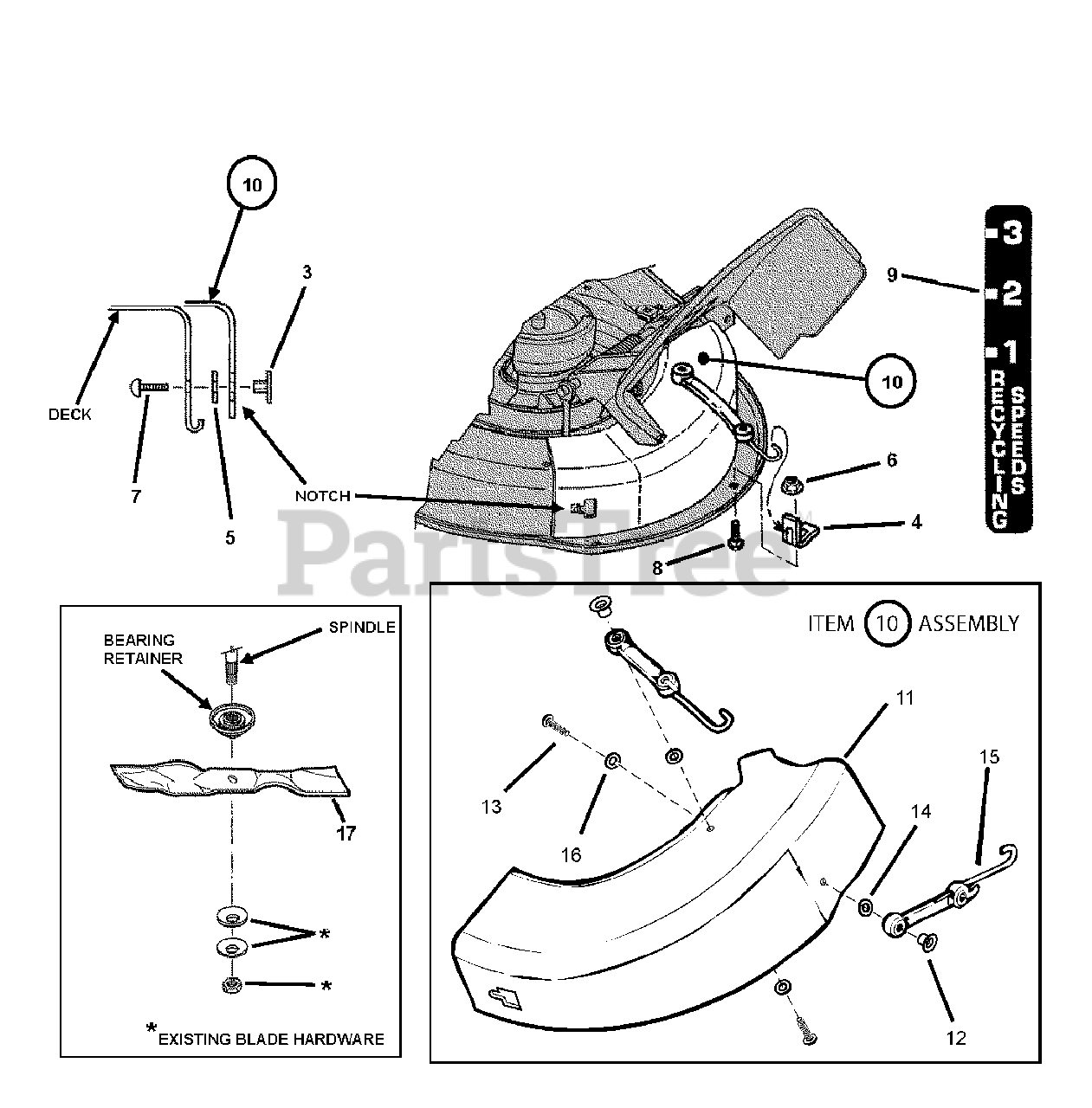

7061877 - Simplicity 38" Mulch Kit Mulcher Kit Assembly (7061877) Parts Diagram

38" Mulch Kit

Mulcher Kit Assembly (7061877) Parts Diagram

  • Title

--

Simplicity 7061877

KIT, Wave Recycling (38" Models)

Note: (Incl. items 3 thru 17)

$

$

Not available

2

Simplicity 7026749

WASHER, Blade
(Superseded to 7026749SM)

$10.99

$

In Stock, only 1 left!

0

3

Simplicity 7036543SM

NUT, Tee 5/16

$2.99

$

Usually ships in 2-12 days

0

4

Simplicity 7045178SM

BRACKET, Strap Mounting

$21.99

$

Usually ships in 2-12 days

0

5

Simplicity 7090188SM

WASHER, Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

6

Simplicity 7091619SM

NUT, Hex Flange Lock, 3/8 - 16
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

7

Simplicity 7090799SM

SCREW, 5/16 - 18 x 5/8
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

8

Simplicity 7091923SM

BOLT, Carriage, 3/8 - 16

$3.49

$

Usually ships in 2-12 days

0

9

Simplicity 7017176SM

DECAL, Recycling Speeds

$17.99

$

Usually ships in 2-12 days

0

10

Simplicity 7054334SM

MULCHING COVER ASSEMBLY

Note: (Includes Ref. Nos. 11, 12, 13, 14, 15, & 16)

$

$

Not available

11

MULCHING COVER *

$

$

Not available

12

Simplicity 7036404SM

NUT, Weld

$3.49

$

Usually ships in 2-12 days

0

13

Simplicity 7036415SM

SCREW, 5/8 - 10

$3.99

$

In Stock, only 2 left!

0

14

Simplicity 7036422SM

WASHER, Flat

$3.99

$

In Stock, only 2 left!

0

15

Simplicity 7036433SM

STRAP, Mounting Bag Adapter

$31.99

$

In Stock, only 3 left!

0

16

Simplicity 7091552SM

WASHER, Flat

$3.99

$

In Stock, only 4 left!

0

17

Simplicity 7036548SM

BLADE, Wave Mulch, 19-1/2"
(Superseded to 7036548BZYP)

$27.99

$

Usually ships in 2-12 days

0
