7061877 - Snapper 38" Recycling Kit 38" Recycling Kit Parts Diagram

38" Recycling Kit

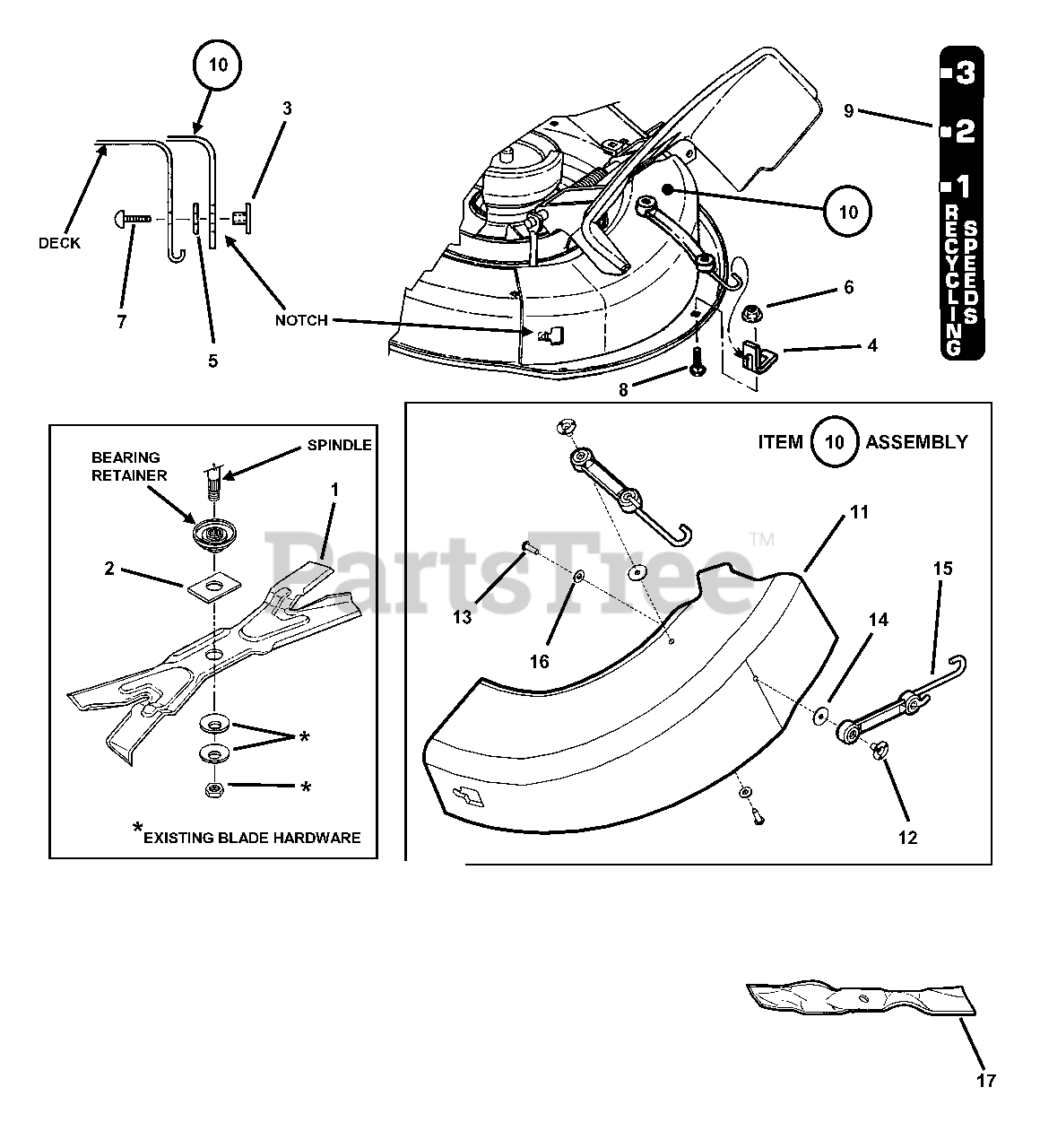

38" Recycling Kit Parts Diagram

  • Title

--

Snapper 7061877

KIT, Wave Recycling (38" Models)

Note: (Incl. Items 3 Thru 17)

$

$

Not available

2

Snapper 7026749

WASHER, Blade
(Superseded to 7026749SM)

$10.99

$

In Stock, only 1 left!

0

3

Snapper 7036543

TEENUT, 5/16-18
(Superseded to 7036543SM)

$2.99

$

Usually ships in 2-12 days

0

4

Snapper 7045178

BRACKET, Strap Mounting
(Superseded to 7045178SM)

$21.99

$

Usually ships in 2-12 days

0

5

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

7

Snapper 7091833

SCREW, 5/16-18 x 5/8" Cross Recess Pan Head Nyloc
(Superseded to 7091833SM)

$4.49

$

In Stock, only 1 left!

0

8

Snapper 7091923

BOLT, 3/8-16 x 3/4" Square Neck Carriage
(Superseded to 7091923SM)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 7017176

DECAL, Recycling Ground Speeds
(Superseded to 7017176SM)

$17.99

$

Usually ships in 2-12 days

0

10

Snapper 7054334

ASSEMBLY, Mulching Cover & Strap
(Superseded to 7054334YP)

Note: (Incl. items 11 thru 16)

$107.99

$

Usually ships in 2-12 days

0

11

Snapper 7054334

COVER, Mulching (38" Deck)
(Superseded to 7054334YP)

$107.99

$

Usually ships in 2-12 days

0

12

Snapper 7036404

NUT, #10-24 Weld
(Superseded to 7036404SM)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper 7036415

SCREW, #10-24 Pan Head Cross Recess
(Superseded to 7036415SM)

$3.99

$

In Stock, only 2 left!

0

14

Snapper 7036422

WASHER, .190 I.D., 3/4" O.D. Flat
(Superseded to 7036422SM)

$3.99

$

In Stock, only 2 left!

0

15

Snapper 7036433

STRAP, Bag Adapter Mounting
(Superseded to 7036433SM)

$31.99

$

In Stock, only 3 left!

0

16

Snapper 7091552

WASHER, .219 I.D., 1/2" O.D.
(Superseded to 7091552SM)

$3.99

$

In Stock, only 4 left!

0

17

Snapper 7036548

BLADE, 19.64" Mulching Wave
(Superseded to 7036548BZYP)

$27.99

$

Usually ships in 2-12 days

0
