7061895 - Snapper 42" Yard Cruiser Single Grass Catcher Catcher Group Parts Diagram

42" Yard Cruiser Single Grass Catcher

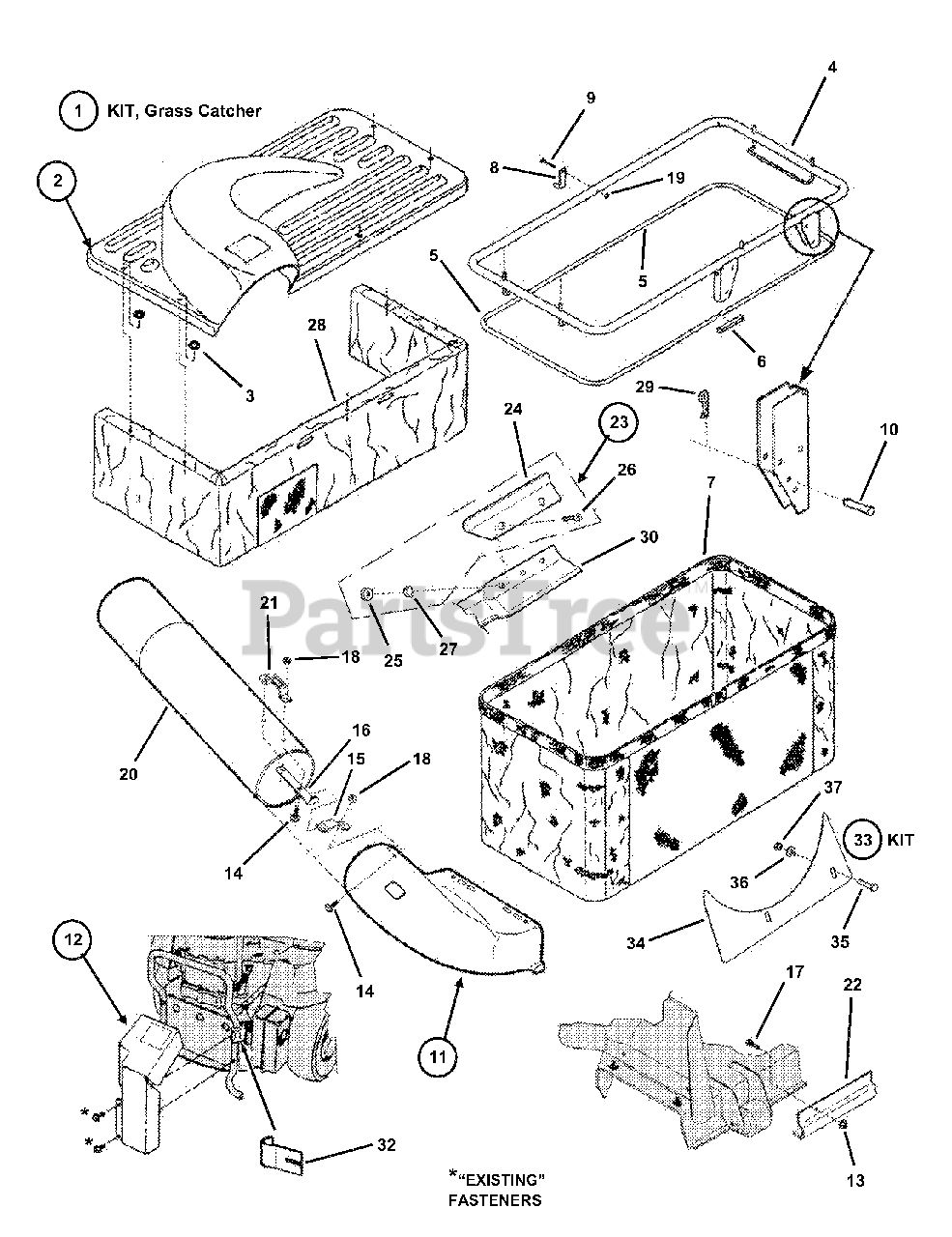

Catcher Group Parts Diagram

  • Title

1

Snapper 7061895

KIT, Grass Catcher (42" Models)

Note: (Includes Items 2 Thru 33)

$

$

Currently unavailable

2

Snapper 7057983

TOP, Container
(Superseded to 7501833YP)

Note: (Includes Decal No. 46627)

$

$

Not available

3

Snapper 7029840

WASHER, 5/16" Faceted
(Superseded to 704315)

Note: Included in Hardware Bag 60778

$4.49

$

Usually ships in 2-12 days

0

4

Snapper 7042754

FRAME, Weldment
(Superseded to 7042754YP)

$93.99

$

Usually ships in 2-12 days

0

5

Snapper 7037758

ROD, Bag
(Superseded to 7057248YP)

$

$

Not available

6

Snapper 7012556

CONNECTOR, Bag Rod
(Superseded to 7012556YP)

Note: Included in Hardware Bag 60778

$7.49

$

In Stock, only 2 left!

0

7

Snapper 7024819

BAG, Grass
(Superseded to 7024819YP)

Note: Was 19251

$82.99

$

Usually ships in 2-12 days

0

8

Snapper 7031725

LATCH, Top
(Superseded to 7031725YP)

Note: Included in Hardware Bag 60778

$5.99

$

Usually ships in 2-12 days

0

9

Snapper 7090532

SCREW, #10-32 x 1-3/8" Hex Head Machine
(Superseded to 704316)

Note: Included in Hardware Bag 60778

$4.99

$

In Stock, only 2 left!

0

10

Snapper 7029841

PIN, 5/16 x 1-11/16" Clevis
(Superseded to 704029)

Note: Included in Hardware Bag 60778

$4.49

$

In Stock, only 2 left!

0

11

Snapper 7051663

ADAPTER, Deck
(Superseded to 7051663YP)

Note: (Includes 46720 Decal)

$210.99

$

Usually ships in 2-12 days

0

12

Snapper 7057709

ASSEMBLY, Debris Shield
(Superseded to 7063035YP)

Note: (Includes Decal No. 71696)

$80.99

$

Usually ships in 2-12 days

0

13

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Included in Hardware Bag 60778

$5.99

$

In Stock, Qty 12

0

14

Snapper 7090803

BOLT, 1/4-20 x 5/8" Flat Head Square Neck, Grade 2
(Superseded to 703841)

Note: Included in Hardware Bag 60778

$3.99

$

Usually ships in 2-12 days

0

15

Snapper 7031951

LATCH, Tube
(Superseded to 7031951YP)

Note: Included in Hardware Bag 60778

$6.49

$

In Stock, only 2 left!

0

16

Snapper 7031952

BASE, Handle
(Superseded to 7031952YP)

Note: Included in Hardware Bag 60778

$7.99

$

In Stock, only 2 left!

0

17

Snapper 7091613

SCREW, 5/16-18 x 3/4" Pan Head Machine
(Superseded to 7091613YP)

Note: Included in Hardware Bag 60778

$3.49

$

Usually ships in 2-12 days

0

18

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock, Grade 5
(Superseded to 703233)

Note: Included in Hardware Bag 60778

$4.49

$

In Stock, Qty 6

0

19

Snapper 7090376

NUT, #10-32 Hex Nyloc
(Superseded to 703937)

Note: Included in Hardware Bag 60778

$3.49

$

In Stock, only 4 left!

0

20

Snapper 7071680

TUBE, Grass (38" long)
(Superseded to 7017316YP)

$123.99

$

Usually ships in 2-12 days

0

21

Snapper 7037745

HANDLE, Tube
(Superseded to 7037745YP)

Note: Included in Hardware Bag 60778

$11.99

$

In Stock, only 2 left!

0

22

Snapper 7038277

BAFFLE, 42" Deck

$

$

Not available

23

Snapper 7060735

KIT, Air Lift
(Superseded to 7060735YP)

Note: (Includes Items 24 Thru 27)

$65.99

$

In Stock, only 1 left!

0

24

Snapper 7031724

EXTENSION, Air Lift
(Superseded to 7031724YP)

$29.99

$

Usually ships in 2-12 days

0

25

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$4.49

$

In Stock, Qty 14

0

26

Snapper 7090228

SCREW, 5/16-24 Oval Head Machine
(Superseded to 7090228SM)

$5.99

$

In Stock, Qty 20+

0

27

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

28

Snapper 7071679

DUST SKIRT
(Superseded to 7071679YP)

$30.99

$

Usually ships in 2-12 days

0

29

Snapper 7091503

PIN, 3/32 x 1-1/2" Hair
(Superseded to 7091503SM)

Note: Included in Hardware Bag 60778

$3.99

$

In Stock, Qty 12

0

30

Snapper 7019795

BLADE, 21" Air Lift
(Superseded to 7019795BZYP)

$29.99

$

In Stock, Qty 5

0

31

Snapper 7090824

SCREW, 3/8-24 x 1-1/4" Hex Cap, Grade 5
(Superseded to 7090824YP)

Note: Was 91589 (Blade Bolt, not shown); Included in Hardware Bag 60778

$4.99

$

In Stock, only 2 left!

0

32

Snapper 7042716

BRACKET, Bumper Reinforcement
(Superseded to 7042716YP)

$23.99

$

Usually ships in 2-12 days

0

33

Snapper 7063289

KIT, Catcher Debris Shield
(Superseded to 7063289YP)

Note: (Incl. Items 34 Thru 37)

$30.99

$

In Stock, only 2 left!

0

34

Snapper 7063287

SHIELD, Debris
(Superseded to 7063289YP)

$30.99

$

In Stock, only 2 left!

0

35

Snapper 7090909

BOLT, 1/4-20 x 1-1/2" Hex
(Superseded to 703234)

$4.49

$

In Stock, only 1 left!

0

36

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

37

Snapper 7091705

NUT, 1/4-20 Hex Top Lock
(Superseded to 704319)

$3.49

$

Usually ships in 2-12 days

0
