7061913 - Snapper 36" Trail Sweeper Trail Sweeper Parts Diagram

36" Trail Sweeper

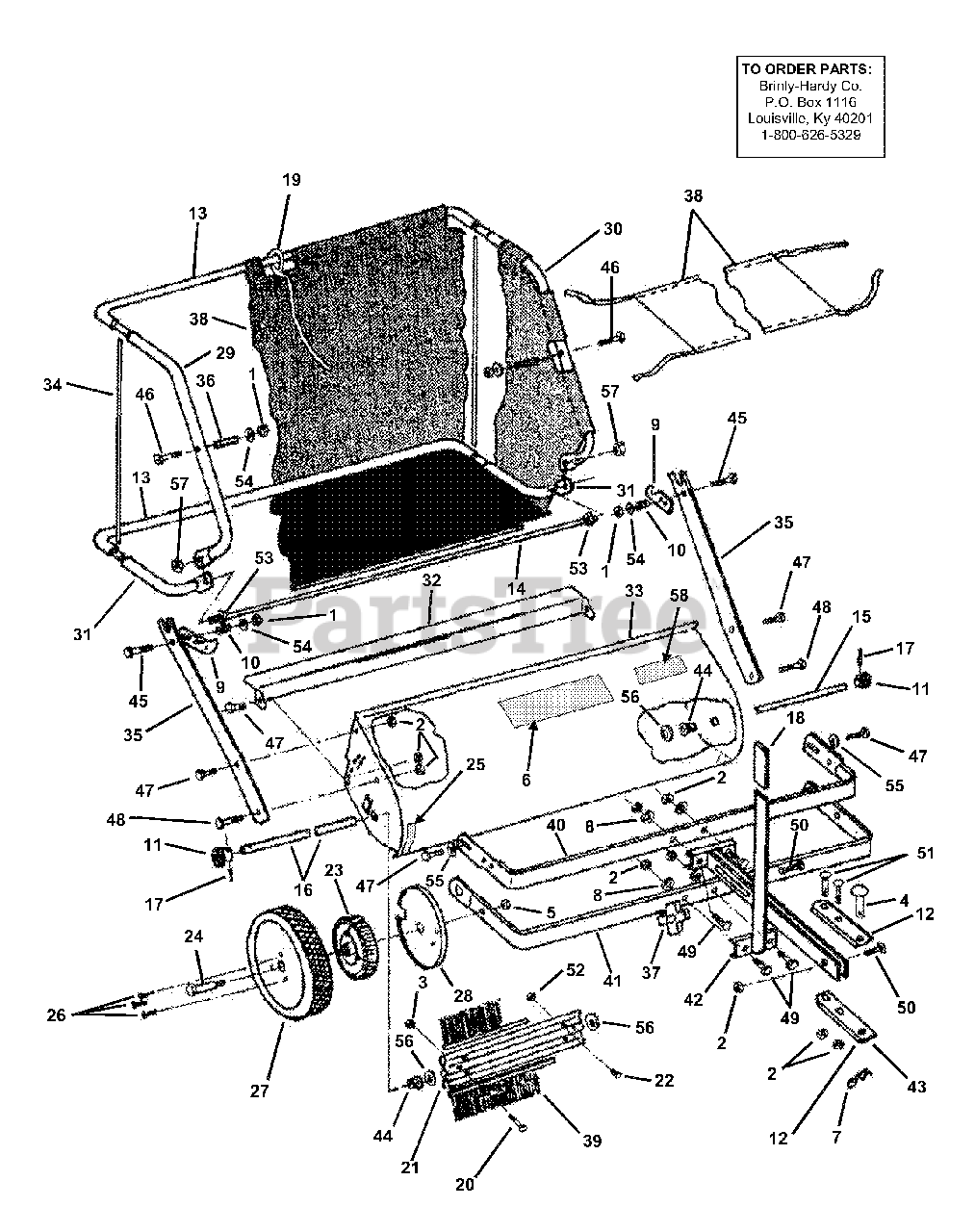

Trail Sweeper Parts Diagram

  • Title

--

Snapper 7061913

KIT, 36" Trail Sweeper

Note: (Incl. items 1 thru 58)

$

$

Currently unavailable

1

Snapper B1673P

NUT, 1/4" Hex Lock

$

$

Currently unavailable

2

Snapper B1674P

NUT, 5/16" Hex Lock

$

$

Currently unavailable

3

Snapper B3385

NUT, #10 Hex Lock
(Superseded to 709496)

$7.49

$

Usually ships in 2-12 days

0

4

Snapper B3861

HITCH PIN, 1/2 x 2-1/4"
(Superseded to CB3861GS)

$229.99

$

Usually ships in 2-12 days

0

5

Snapper B3718

NUT, 3/8' Hex Lock

$

$

Currently unavailable

6

Snapper B5435

DECAL, Logo

$

$

Currently unavailable

7

Snapper D146P

HAIR PIN COTTER

$

$

Currently unavailable

8

Snapper R618

WASHER, 5/16" Special

$

$

Currently unavailable

9

Snapper R-544A-01

LATCH, Frame

$

$

Currently unavailable

10

Snapper R646

SPRING, Latch

$

$

Currently unavailable

11

Snapper R-882-A

DRIVE PINION

$

$

Currently unavailable

12

Snapper R-892-10

CLEVIS, Drawbar

$

$

Currently unavailable

13

Snapper R-1287-10

REAR TUBE Top & Bottom

$

$

Currently unavailable

14

Snapper R1288

STOP ROD

$

$

Currently unavailable

15

Snapper R959

AXLE, Long

$

$

Currently unavailable

16

Snapper R950

AXLE, Short

$

$

Currently unavailable

17

Snapper R1014

DRIVE PIN

$

$

Currently unavailable

18

Snapper R1882

GRIP, Handle

$

$

Currently unavailable

19

Snapper R1039

PULL ROPE

$

$

Currently unavailable

20

Snapper R1502

SCREW, #10 x 7/8" Machine

$

$

Currently unavailable

21

Snapper R1509

BRUSH HOLDER HALF

$

$

Currently unavailable

22

Snapper R1523

SCREW, #10 x 1/2"

$

$

Currently unavailable

23

Snapper R1584

GEAR, Drive

$

$

Currently unavailable

24

Snapper R1595

BOLT, 1/2" Shoulder

$

$

Currently unavailable

25

Snapper R1721

DECAL, Height Adjust

$

$

Currently unavailable

26

Snapper R1722

SCREW, 1/4 x 3/4" Pan Head

$

$

Currently unavailable

27

Snapper R1723

ASS'Y, Wheel & Tire

$

$

Currently unavailable

28

Snapper R-1738-10

SHIELD, Dust

$

$

Currently unavailable

29

Snapper R-1805 R-10

UPPER TUBE (R. H.)

$

$

Currently unavailable

30

Snapper R-1805 L-10

UPPER TUBE (L. H.)

$

$

Currently unavailable

31

Snapper R-1806-10

LOWER TUBE

$

$

Currently unavailable

32

Snapper R-1866-10

BAFFLE

$

$

Currently unavailable

33

Snapper R1880

ASSEMBLY, Housing

$

$

Currently unavailable

34

Snapper R1815

ROD, Hamper

$

$

Currently unavailable

35

Snapper R-1815-10

BAR, hamper Support

$

$

Currently unavailable

36

Snapper R-1618-01

SPACER, Hamper

$

$

Currently unavailable

37

Snapper F782

KNOB, Adjusting

$

$

Currently unavailable

38

Snapper R1865

SCREEN, Hamper & Wind

$

$

Currently unavailable

39

Snapper R1862

SECTION, Brush

$

$

Currently unavailable

40

Snapper R-1843-10

TUBE, Tow Bar Support

$

$

Currently unavailable

41

Snapper R-1845-10

TUBE, Wheel Support

$

$

Currently unavailable

42

Snapper R-1846-10

ASSEMBLY, Handle

$

$

Currently unavailable

43

Snapper R-1848-10

ASSEMBLY, Tow Bar

$

$

Currently unavailable

44

Snapper R1856

BEARING, Bronze

$

$

Currently unavailable

45

Snapper 1M0824P

BOLT, 1/4 x 1-1/2" Hex

$

$

Currently unavailable

46

Snapper 2M0832P

BOLT, 1/4 x 2" Hex

$

$

Currently unavailable

47

Snapper 2M1012P

BOLT, 5/16 X 3/4" Hex

$

$

Currently unavailable

48

Snapper 2M1016P

BOLT, 5/16 x 1" Hex

$

$

Currently unavailable

49

Snapper 2M1020P

BOLT, 5/16 x 1-1/4" Hex

$

$

Currently unavailable

50

Snapper 10M1020P

BOLT, 5/16 x 1-1/4" Carr.

$

$

Currently unavailable

51

Snapper 10M1032P

BOLT, 5/16 x 2" Carr.

$

$

Currently unavailable

52

Snapper 30M0600P

NUT, #10 Hex

$

$

Currently unavailable

53

Snapper 30M1200P

NUT, 3/8" Hex

$

$

Not available

54

Snapper 45M0909P

WASHER, 1/4' Flat

$

$

Currently unavailable

55

Snapper 45M1111P

WASHER, 5/16" Flat

$

$

Not available

56

Snapper 45M1717P

WASHER, 1/2" Flat

$

$

Not available

57

Snapper B1675P

NUT, 3/8" Hex Lock

$

$

Currently unavailable

58

Snapper R1874

DECAL, Instructions

$

$

Currently unavailable
