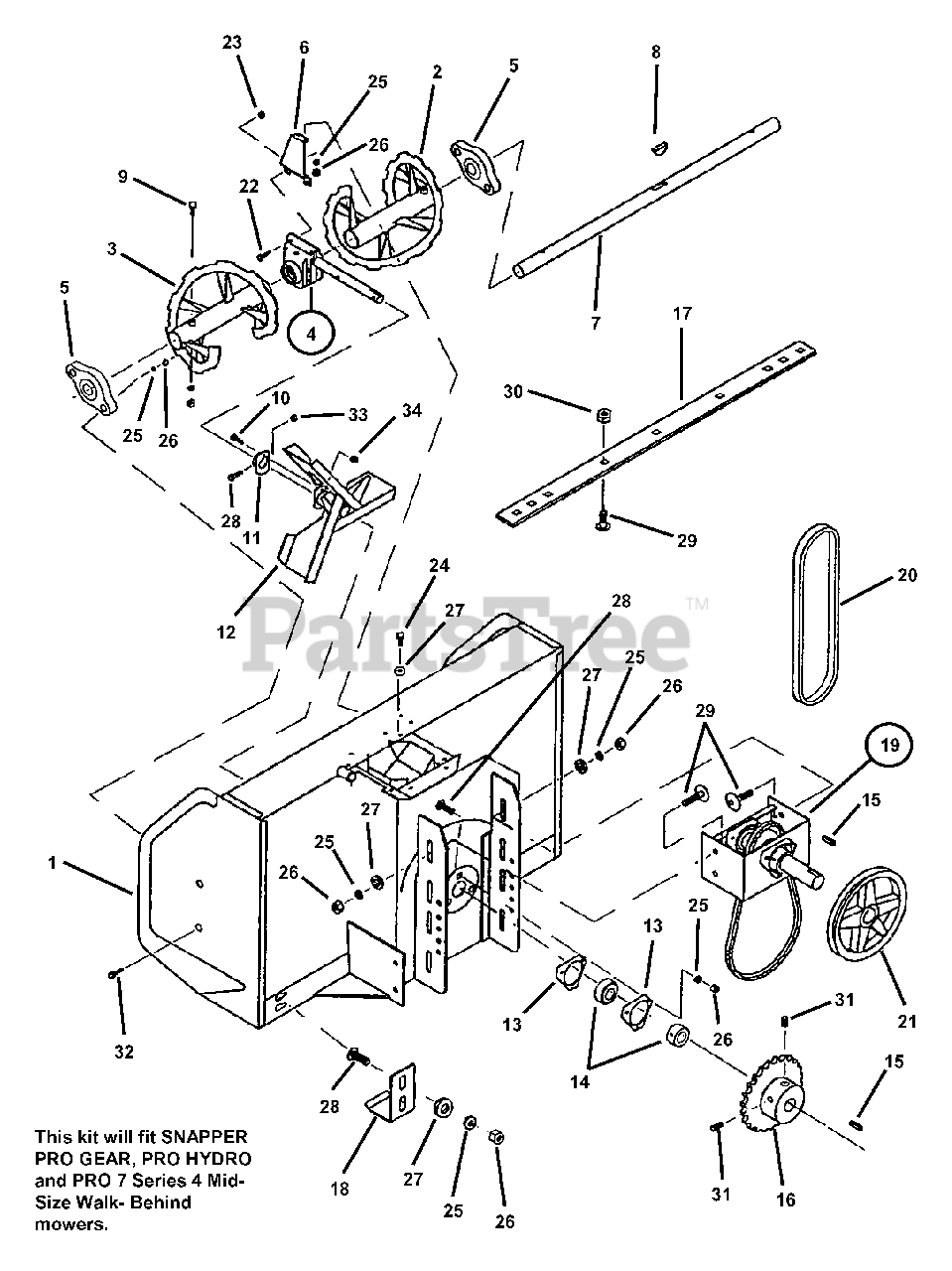

7063004 - Snapper 40" Snow Blower PRO Kit Two Stage Snowblower 40" (Part 1) Parts Diagram

40" Snow Blower PRO Kit

Two Stage Snowblower 40" (Part 1) Parts Diagram

  • Title

Snapper 7063004

KIT, 40" Two Stage Snowblower

Note: (Incl. items 1 thru 21)

$

$

Currently unavailable

1

Snapper 662878

FRAME

$

$

Currently unavailable

2

Snapper 662881

AUGER, Right Hand (weldment)

$

$

Currently unavailable

3

Snapper 662882

AUGER, Left Hand (weldment)

$

$

Currently unavailable

4

Snapper 663030

ASSEMBLY, Worm Gear

Note: See "Two Stage Snowblower 40" (Part 4)"

$

$

Currently unavailable

5

Snapper 661667

BEARING

$

$

Currently unavailable

6

Snapper 662879

SUPPORT, Worm Gear

$

$

Currently unavailable

7

Snapper 663025

SHAFT, Output

$

$

Currently unavailable

8

Snapper 655967

KEY, Woodruff

$

$

Currently unavailable

9

Snapper 658576

SHEAR BOLT, 5/16-18 x 2-1/4"

$

$

Currently unavailable

10

Snapper 658574

SHEAR BOLT, 1/4-20 x 1"

$

$

Currently unavailable

11

Snapper 655874

SHEAR PLATE, Fan Adapter

$

$

Currently unavailable

12

Snapper 662968

ASSEMBLY, Fan

$

$

Currently unavailable

13

Snapper 656589

FLANGE, Bearing

$

$

Currently unavailable

14

Snapper 654532

BEARING, w/Locking Collar

$

$

Currently unavailable

15

Snapper 655379

KEY, 1/4" Square x 1"

$

$

Currently unavailable

16

Snapper 663064

SPROCKET, 40838

$

$

Currently unavailable

17

Snapper 659591

CUTTING EDGE

$

$

Currently unavailable

18

Snapper 659717

SKID SHOE

$

$

Currently unavailable

19

Snapper 663859

ASSEMBLY, Reduction Box

Note: See "Two Stage Snowblower 40" (Part 3)"

$

$

Currently unavailable

20

Snapper 659605

BELT, SP Models w/Kohler Engine

$

$

Currently unavailable

Snapper 662893

BELT, PL7H Models

$

$

Currently unavailable

Snapper 662893

BELT, SP Models w/o Kohler Engines

$

$

Currently unavailable

21

Snapper 656135

PULLEY BK67

$

$

Currently unavailable

22

Snapper 7027175

BOLT, 5/16-18 x 1-1/2" Hex
(Superseded to 7091046YP)

$3.99

$

In Stock, only 2 left!

0

23

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, Qty 20+

0

24

BOLT, 5/16-18 x 3/4" Hex

$

$

Not available

25

WASHER, 5/16" Lock

$

$

Not available

26

Snapper 7090197

NUT, 5/16-18 Hex
(Superseded to 7090197YP)

$4.49

$

Usually ships in 2-12 days

0

27

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

28

Snapper 7091303

BOLT, 5/16-18 x 1" Square Neck Carriage
(Superseded to 703800)

Note: Was 90208

$3.99

$

In Stock, Qty 16

0

29

Snapper 7090316

BOLT, 5/16-18 x 3/4" Square Neck Carriage, Grade 5
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

30

NUT, 5/16-18 Stover

$

$

Not available

31

SOCKET CAPSCREW, 5/16-18 x 5/16"

$

$

Not available

32

BOLT, 3/8-16 x 1-1/4" Hex

$

$

Not available

33

NUT, 5/16-18 Stover

$

$

Not available

34

Snapper 7076978

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0
