7063083 - Snapper 38" Rider Twin Bag Grass Catcher Tube Group Parts Diagram

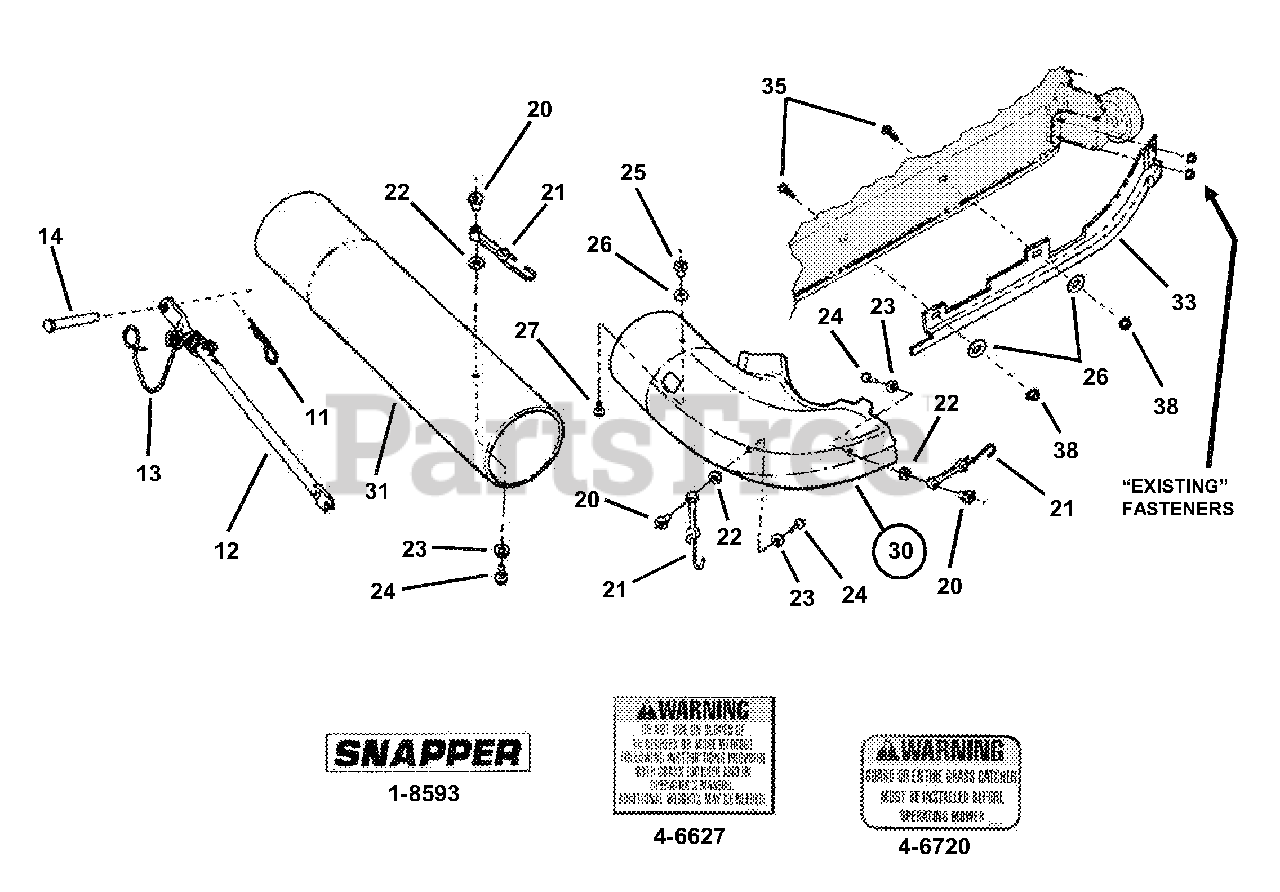

38" Rider Twin Bag Grass Catcher

Tube Group Parts Diagram

  • Title

--

Snapper 7063083

KIT, Grass Catcher

$

$

Currently unavailable

11

Snapper 7091503

PIN, 3/32 x 1-1/2" Hair
(Superseded to 7091503SM)

Note: Included in Hardware Bag 72240

$3.99

$

In Stock, Qty 19

0

12

Snapper 7046573

BRACE, Rear

$

$

Not available

13

Snapper 7051407

ASS'Y, Spring & Hook
(Superseded to 7051407YP)

$39.99

$

Usually ships in 2-12 days

0

14

Snapper 7029841

PIN, 5/16 x 1-11/16" Clevis
(Superseded to 704029)

Note: Included in Hardware Bag 72240

$4.49

$

In Stock, only 2 left!

0

20

Snapper 7036404

NUT, #10-24 x 5/8" Weld
(Superseded to 7036404SM)

Note: Included in Hardware Bag 72240

$3.49

$

Usually ships in 2-12 days

0

21

Snapper 7036433

STRAP, Adapter/Tube
(Superseded to 7036433SM)

Note: Included in Hardware Bag 72240

$31.99

$

In Stock, only 1 left!

0

22

Snapper 7036422

WASHER, 3/16" Flat
(Superseded to 7036422SM)

Note: Included in Hardware Bag 72240

$3.99

$

In Stock, only 2 left!

0

23

Snapper 7091552

WASHER, 7/32" Flat
(Superseded to 7091552SM)

Note: Included in Hardware Bag 72240

$3.99

$

In Stock, Qty 11

0

24

Snapper 7036415

SCREW, #10-24 x 5/8" Pan Hd.
(Superseded to 7036415SM)

Note: Included in Hardware Bag 72240

$3.99

$

In Stock, only 1 left!

0

25

Snapper 7036543

TEENUT, 5/16-18
(Superseded to 7036543SM)

Note: Included in Hardware Bag 72240

$2.99

$

Usually ships in 2-12 days

0

26

Snapper 7090188

WASHER, 11/32" Flat
(Superseded to 703350)

Note: Was 91296 (Included in Hardware Bag 72240)

$4.49

$

Usually ships in 2-12 days

0

27

Snapper 7091833

SCREW, 5/16-18 x 5/8" Nyloc
(Superseded to 7091833SM)

Note: Was 91833 (Included in Hardware Bag 72240)

$4.49

$

In Stock, only 1 left!

0

30

Snapper 7057810

ADAPTER
(Superseded to 7057810YP)

Note: (Incl. Decal 46720)

$290.99

$

Usually ships in 2-12 days

0

31

Snapper 7039478

TUBE, Grass (32" long)
(Superseded to 7039478YP)

$96.99

$

Usually ships in 2-12 days

0

33

Snapper 7044726

BAFFLE, 38" Deck
(Superseded to 7044726YP)

$70.99

$

Usually ships in 2-12 days

0

35

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex
(Superseded to 5025011X6SM)

Note: Included in Hardware Bag 72240

$3.99

$

In Stock, only 1 left!

0

38

Snapper 7091575

NUT, 5/16-18 Hex Center Lock
(Superseded to 703164)

Note: Included in Hardware Bag 72240

$3.49

$

In Stock, Qty 20+

0

1-8593

Snapper 7019295

DECAL, SNAPPER
(Superseded to 7019295YP)

Note: Was 18593

$14.99

$

In Stock, only 2 left!

0

4-6627

Snapper 7046627

DECAL, GRASS BAG WARNING
(Superseded to 7046627YP)

$7.99

$

In Stock, only 2 left!

0

4-6720

Snapper 7046720

DECAL, CHUTE DEFLECTOR
(Superseded to 7046720SM)

$7.99

$

In Stock, only 2 left!

0
