7063086 - Snapper High-Wheel Walk-Behind Grass Bag Kit High-Wheel Walk-Behind Grass Bag Kit Parts Diagram

High-Wheel Walk-Behind Grass Bag Kit

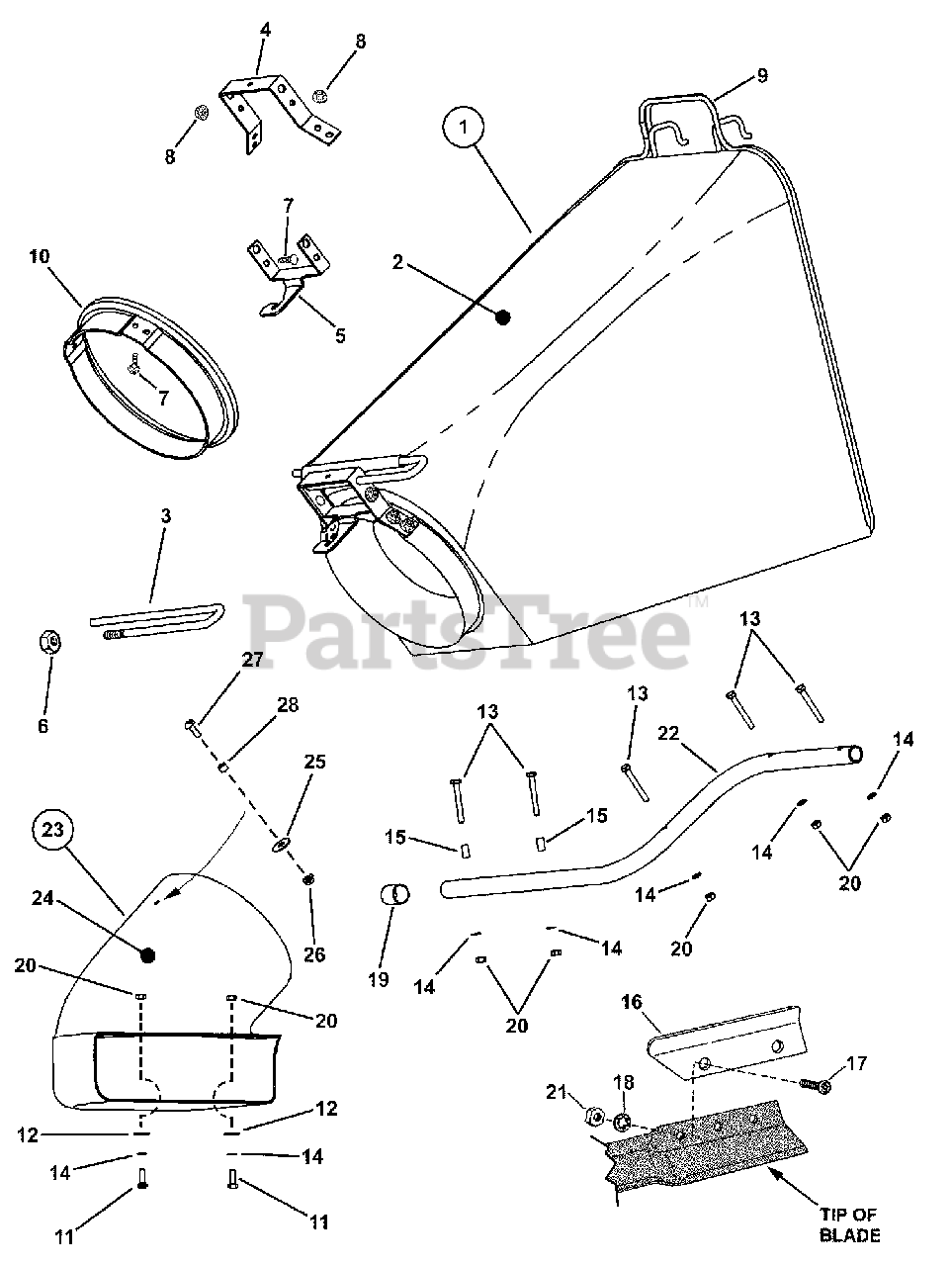

High-Wheel Walk-Behind Grass Bag Kit Parts Diagram

  • Title

1

Snapper 7058244

ASSEMBLY, Grass Bag

Note: includes items 1 through 10

$

$

Currently unavailable

2

Snapper 7072175

GRASS BAG
(Superseded to 7072175YP)

$112.99

$

Usually ships in 2-12 days

0

3

Snapper 7027670

FRONT BAG WIRE
(Superseded to 7027670YP)

$25.99

$

Usually ships in 2-12 days

0

4

Snapper 7038336

ADAPTER HANDLE
(Superseded to 7038336YP)

$21.99

$

Usually ships in 2-12 days

0

5

Snapper 7038337

LATCH, Connector
(Superseded to 7038337YP)

$36.99

$

Usually ships in 2-12 days

0

6

Snapper 7090289

NUT, 3/8-24 Hex Center Lock, GR5 or B
(Superseded to 703458)

$4.99

$

In Stock, Qty 13

0

7

Snapper 7090803

BOLT, 1/4-20 x 5/8" Flat Head Square Neck, GR5
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 91065

$4.49

$

In Stock, only 2 left!

0

9

Snapper 7051906

ASSEMBLY, Bag Wire
(Superseded to 7051906YP)

$110.99

$

Usually ships in 2-12 days

0

10

Snapper 7072903

RING, Grass Bag Connector
(Superseded to 7072903YP)

$83.99

$

Usually ships in 2-12 days

0

--

Snapper 7058247

HARDWARE BAG (Not shown)
(Superseded to 7058247YP)

Note: includes items 11 through 21

$45.99

$

Usually ships in 2-12 days

0

11

Snapper 7090541

SCREW, 1/4-28 x 3/4, Hex Head Cap, GR5
(Superseded to 7090541YP)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7091098

WASHER, 5/16 x 3/4 x .08 Flat
(Superseded to 703302)

$4.49

$

In Stock, Qty 20+

0

13

Snapper 7090112

SCREW, 1/4-28 x 2" Hex Head Cap, GR5
(Superseded to 7090112YP)

$2.99

$

Usually ships in 2-12 days

0

14

Snapper 7090053

WASHER, 1/4" Internal Tooth Lock
(Superseded to 703462)

Note: Was 91023

$4.49

$

In Stock, Qty 13

0

15

Snapper 7015969

SPACER, .255 x .640
(Superseded to 7015969YP)

$4.49

$

Usually ships in 2-12 days

0

16

Snapper 7031724

EXTENSION, Air Lift
(Superseded to 7031724YP)

$27.99

$

Usually ships in 2-12 days

0

17

Snapper 7090228

SCREW, 5/16-24 x 21/32" Oval Head Machine, Cross Recess
(Superseded to 7090228SM)

$5.49

$

In Stock, only 4 left!

0

18

Snapper 7090391

WASHER, 5/16 Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

19

Snapper 7072733

CAP, Plastic
(Superseded to 7072733YP)

$3.49

$

Usually ships in 2-12 days

0

20

Snapper 7090095

NUT, 1/4-28 Hex, Grade 5 or B
(Superseded to 7090095FS)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper 7091297

NUT, 5/16-24 Hex, GR5 or B
(Superseded to 703331)

$3.99

$

In Stock, Qty 20+

0

22

Snapper 7072193

TUBING, Bag Support
(Superseded to 7072193YP)

$52.99

$

Usually ships in 2-12 days

0

23

Snapper 7058618

ADAPTER, Chute Assembly

Note: includes items 24 through 28

$

$

Not available

24

Snapper 7058618

ASSEMBLY, Grass Chute

Note: Was 58619 (includes plastic chute (72906) and stiffener (31911))

$

$

Not available

25

Snapper 7011763

FENDER WASHER, 5/16"
(Superseded to 7011763SM)

$4.49

$

In Stock, Qty 7

0

26

Snapper 7091545

NUT,1/4-20 Hex Top Lock Flange, Grade B
(Superseded to 703916)

Note: Was 90477

$4.99

$

In Stock, only 4 left!

0

27

Snapper 7091614

SCREW,1/4-20 x 3/4" Round Head Machine
(Superseded to 7091614YP)

Note: Was 90847

$3.99

$

Usually ships in 2-12 days

0

28

Snapper 7010916

SPACER, .265 I.D. x .3 long
(Superseded to 7010916YP)

$5.49

$

In Stock, Qty 7

0

--

Snapper 7072194

INSTRUCTION, 63086 Grass Bag (Not shown)

Note: not shown

$

$

Currently unavailable
