7063092 - Snapper Mulch Kit for High-Wheel Walk-Behind Mower High-Wheel Walk-Behind Mulching Kit Parts Diagram

Mulch Kit for High-Wheel Walk-Behind Mower

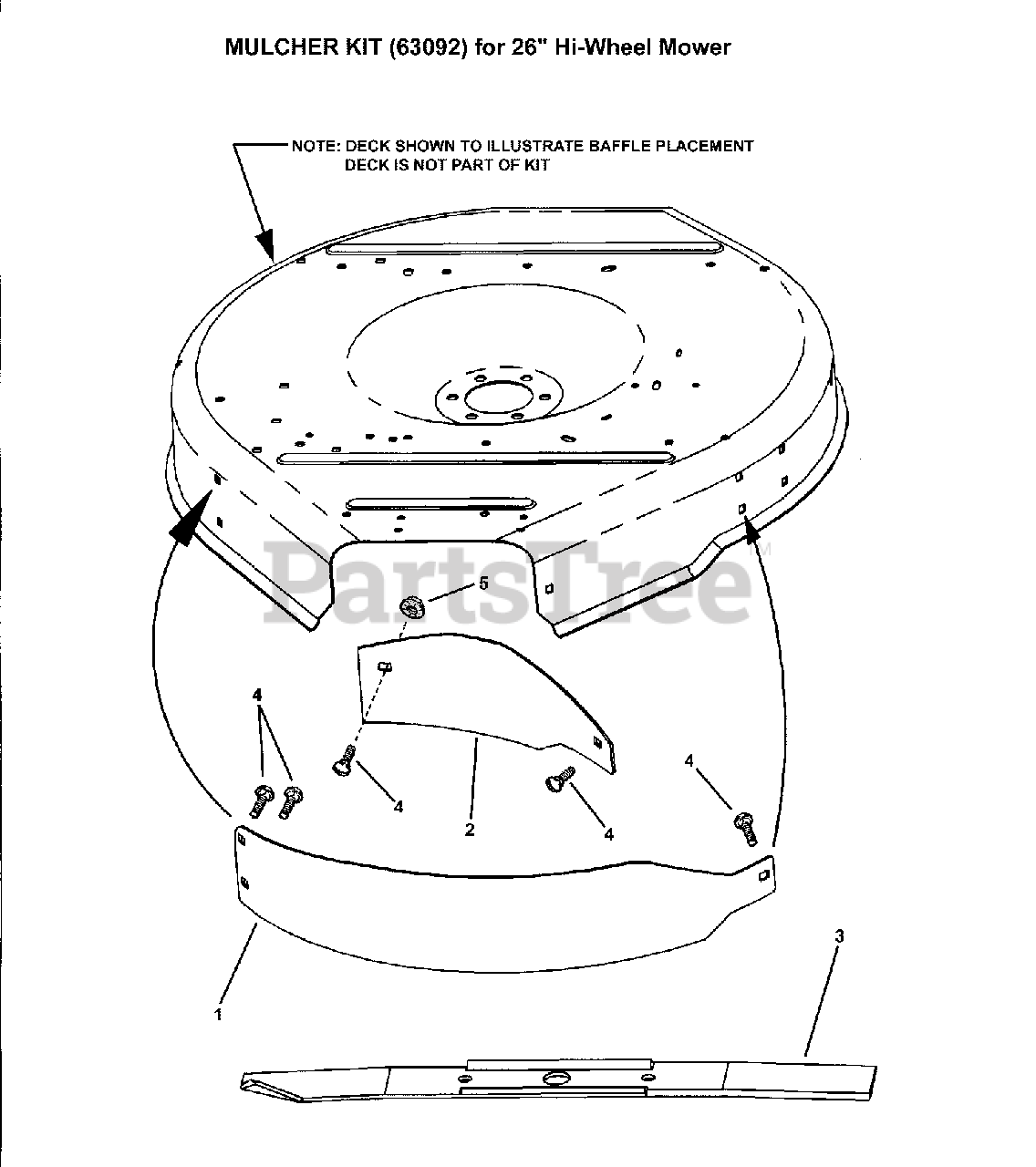

High-Wheel Walk-Behind Mulching Kit Parts Diagram

  • Title

1

Snapper 7072297

BAFFLE, Right
(Superseded to 7072297YP)

$51.99

$

Usually ships in 2-12 days

0

2

Snapper 7072296

BAFFLE, Left
(Superseded to 7072296YP)

$33.99

$

Usually ships in 2-12 days

0

3

Snapper 7017360

BLADE, 26" Mulcher
(Superseded to 7017360YP)

$36.99

$

Usually ships in 2-12 days

0

--

Snapper 7058393

HARDWARE BAG, 26" Mulch Kit (Not shown)

Note: includes items 4 & 5 below

$

$

Currently unavailable

4

Snapper 7091508

BOLT, 5/16-18 x 3/4" Short Neck Carriage, GR5
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 20+

0

5

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

--

Snapper 7072458

INSTRUCTION SHEET, 26" Mulch Kit (Not shown)

$

$

Currently unavailable
