7063126 - Snapper 38" Clamshell Grass Catcher

38" Clamshell Grass Catcher

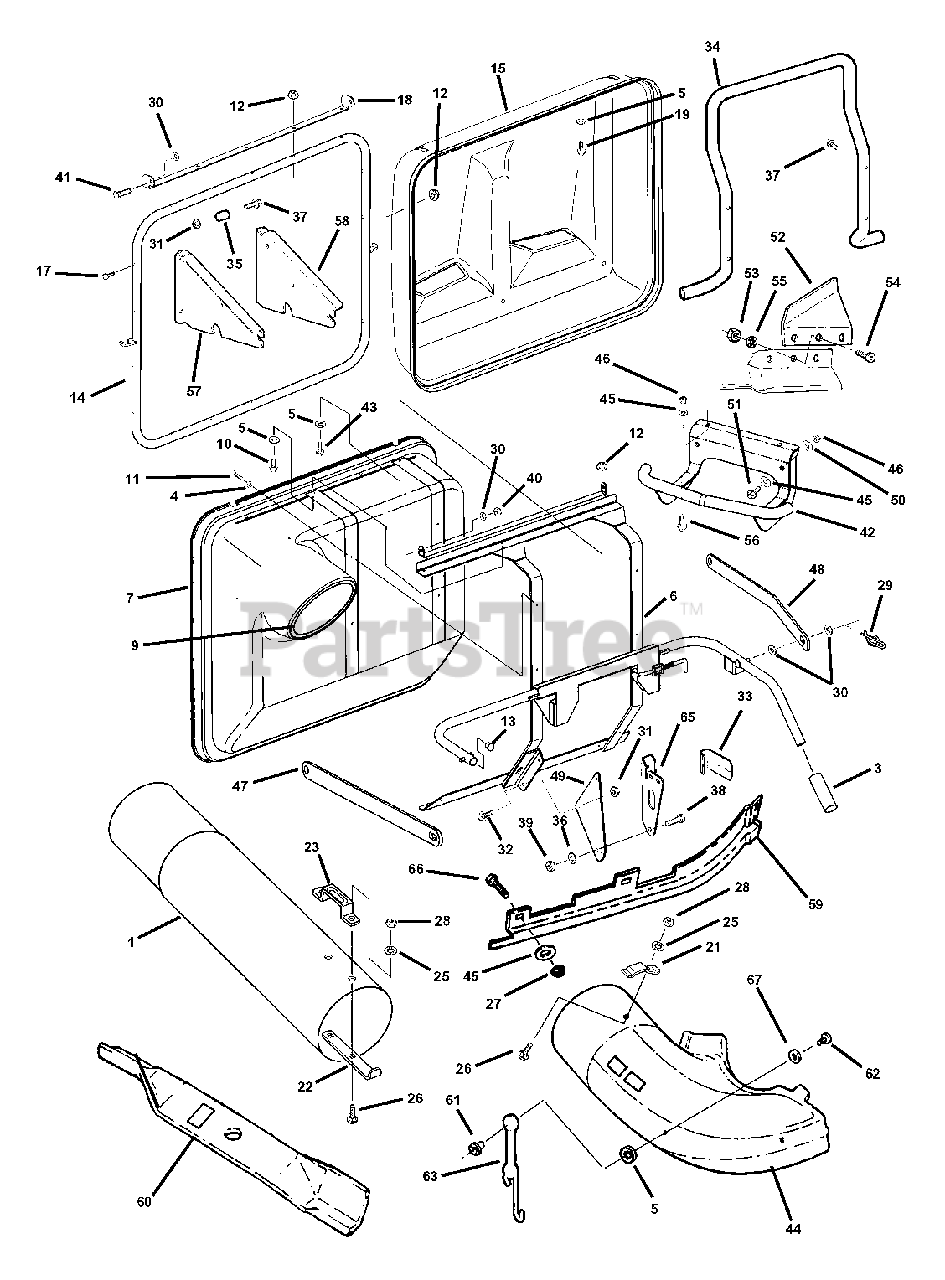

7063126 - Snapper 38" Clamshell Grass Catcher > Parts Diagrams (1) > Clamshell Catcher

  • Title
7063126

--

KIT, 38" Clamshell Grass Catcher

Part# 7063126

Note: (Includes items 1 thru 68)

OEM Warranty Repair Part for Snapper

Currently unavailable

7073431

1

TUBE, Grass

Part# 7073431 (Superseded to 7073431YP)

OEM Warranty Repair Part for Snapper

Not available

7028700

--

DECAL, Read Manual

Part# 7028700 (Superseded to 7028700SM)

Note: (Not Shown)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $16.77

7011870

3

GRIP

Part# 7011870 (Superseded to 1726317SM)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $5.76

7016314

4

WASHER, 11/32 Flat

Part# 7016314 (Superseded to 7016314YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $3.52

7036422

5

WASHER, 3/16 Flat

Part# 7036422 (Superseded to 7036422SM)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.80

7058615

6

WELDMENT, Front Cover Brace

Part# 7058615 (Superseded to 7058615YP)

OEM Warranty Repair Part for Snapper

Not available

7072873

7

COVER, Front

Part# 7072873 (Superseded to 7072873YP)

OEM Warranty Repair Part for Snapper

Not available

7072874

--

DEFLECTOR

Part# 7072874 (Superseded to 7072874YP)

Note: (Not Shown)

OEM Warranty Repair Part for Snapper

Not available

7072950

9

GASKET, Chute

Part# 7072950

OEM Warranty Repair Part for Snapper

Not available

7090913

10

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)

Part# 7090913 (Superseded to 704060)

Note: Was 90307

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $2.57

7090999

11

SCREW, 1/4-20 x 5/8" Pan Head Self-Tapping

Part# 7090999 (Superseded to 703953)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.85

7091079

12

NUT, #10-24 Hex Fl. Lock

Part# 7091079 (Superseded to 703917)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $2.29

7072951

13

END CAP, Tube

Part# 7072951 (Superseded to 7072951YP)

OEM Warranty Repair Part for Snapper

Not available

7058600

14

WELDMENT, Rear Cover Brace

Part# 7058600 (Superseded to 7058600YP)

OEM Warranty Repair Part for Snapper

Not available

7072872

15

COVER, Rear

Part# 7072872 (Superseded to 7072872YP)

OEM Warranty Repair Part for Snapper

Not available

7073509

16

SCREEN, Clamshell

Part# 7073509 (Superseded to 7073509YP)

Note: Was 72876 (Not Shown)

OEM Warranty Repair Part for Snapper

Not available

7073145

17

BOLT, #10-24 x 1-1/2" Oval Head

Part# 7073145 (Superseded to 7073145YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.86

7073179

18

HINGE, Rear Cover

Part# 7073179 (Superseded to 7073179YP)

OEM Warranty Repair Part for Snapper

Not available

7091265

19

SCREW, #10-24 x 1-1/2 Machine

Part# 7091265 (Superseded to 7091265YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.74

7072964

--

DECAL, Warning

Part# 7072964 (Superseded to 7072964YP)

Note: (Not Shown)

OEM Warranty Repair Part for Snapper

Not available

7031951

21

LATCH, Chute/Tube

Part# 7031951 (Superseded to 7031951YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $3.47

7031952

22

BASE, Handle

Part# 7031952 (Superseded to 7031952YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $4.98

7037745

23

HANDLE, Tube

Part# 7037745 (Superseded to 7037745YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $7.94

7091540

?24

SCREW, 5/16-18 x 1-1/2" Hex Head Cap, Grade 5

Part# 7091540 (Superseded to 703906)

Note: (Used on Hydro RER only!)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $3.13

7090053

25

WASHER, 1/4 Internal Tooth Lock

Part# 7090053 (Superseded to 703462)

Note: Was 91314

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $2.96

7091530

26

BOLT, 1/4-20 x 3/4" Round Hd. Short Nk. Carriage, Gr. 5

Part# 7091530 (Superseded to 703101)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $2.74

7091575

27

NUT, 5/16-18 Hex Ctr. Lock

Part# 7091575 (Superseded to 703164)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $2.29

7091576

28

NUT, 1/4-20 Hex

Part# 7091576 (Superseded to 703127)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $2.29

7091593

29

PIN, 3/8 Self Lock Cotter

Part# 7091593 (Superseded to 703355)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $2.74

7090122

30

WASHER, 3/8" Flat

Part# 7090122 (Superseded to 703878)

Note: Was 91514

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $2.96

7091601

31

NUT, 5/16-18 Flange Lock

Part# 7091601 (Superseded to 703409)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $4.03

7091811

32

BOLT, 5/16-18 x 5/8" Hex Flange Lock

Part# 7091811 (Superseded to 703823)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.74

7031954

33

SUPPORT, Bumper

Part# 7031954 (Superseded to 7031954YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $10.40

7033587

34

BUMPER, Rear

Part# 7033587 (Superseded to 7033587YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $120.13

7073272

35

SPACER, Bumper Bracket

Part# 7073272 (Superseded to 7073272YP)

OEM Warranty Repair Part for Snapper

Not available

7090509

36

WASHER, 1/2 Internal Tooth Lock

Part# 7090509 (Superseded to 7090509YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $2.96

7091270

37

SCREW, 5/16-18 x 1-3/4" Hex Washer Self-Tapping

Part# 7091270 (Superseded to 7091270YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.74

7090646

38

BOLT, 1/2-13 x 1" Hex Head Cap Grade 5

Part# 7090646

OEM Warranty Repair Part for Snapper

Not available

7091316

39

NUT, 1/2-13 Hex Grade B

Part# 7091316 (Superseded to 703340)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $5.81

7091299

40

NUT, 3/8-16 Hex Lock

Part# 7091299 (Superseded to 703117)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $2.29

7091304

41

SCREW, 3/8-16 x 1" Hex Head Cap, Grade 5

Part# 7091304 (Superseded to 703407)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $8.83

7044773

42

WELDMENT, LT Bumper

Part# 7044773 (Superseded to 7044773YP)

OEM Warranty Repair Part for Snapper

Not available

7090624

43

BOLT, #10-24 x 3/4" Hex Flange Lock, Grade 5

Part# 7090624 (Superseded to 7090624YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.74

7058658

44

ASSEMBLY, Chute

Part# 7058658 (Superseded to 7058658YP)

Note: Includes a bag adapter (p/n 29206) and two decals (p/n's 46720 & 29784).

OEM Warranty Repair Part for Snapper

Not available

7090188

45

WASHER, 5/16" Flat

Part# 7090188 (Superseded to 703350)

Note: Was 91296

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $2.80

7091298

46

NUT, 5/16-18 Hex Nyloc

Part# 7091298 (Superseded to 703902)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $2.85

7073172

47

LINK, Handle (Right Hand)

Part# 7073172 (Superseded to 7073172YP)

OEM Warranty Repair Part for Snapper

Not available

7073173

48

LINK, Handle (Left Hand)

Part# 7073173 (Superseded to 7073173YP)

OEM Warranty Repair Part for Snapper

Not available

7073171

49

PLATE, Hitch

Part# 7073171 (Superseded to 7073171BMYP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $18.67

7090517

50

WASHER, 7/16" Flat

Part# 7090517 (Superseded to 7090517SM)

Note: Was 91300

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $2.85

7091891

51

BOLT, 3/8-16 x 1" Hex Flange Lock

Part# 7091891 (Superseded to 7091891YP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.74

7060480

--

KIT, Air Lift

Part# 7060480 (Superseded to 7060480SM)

Note: (Incl. Items 52-55)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $21.02

7037723

52

Air Lift

Part# 7037723 (Superseded to 7037723BMYP)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $5.09

7091297

53

NUT, 5/16-24 Hex

Part# 7091297 (Superseded to 703331)

Note: Was 90223

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $2.57

7090228

54

SCREW, 5/16-24 x 5/8" Oval Head Machine

Part# 7090228 (Superseded to 7090228SM)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $3.30

7090391

55

WASHER, 5/16 Internal Tooth Lock

Part# 7090391 (Superseded to 703587)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $2.96

7091905

56

BOLT, 5/16-18 x 7/8" Hex Flange Lock

Part# 7091905 (Superseded to 7091905SM)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $2.74

7073262

57

BRACKET, Bumper Support (Right Hand)

Part# 7073262 (Superseded to 7073262YP)

OEM Warranty Repair Part for Snapper

Not available

7073263

58

BRACKET, Bumper Support (Left Hand)

Part# 7073263 (Superseded to 7073263YP)

OEM Warranty Repair Part for Snapper

Not available

7044726

59

BAFFLE, 38 Deck MY 97

Part# 7044726 (Superseded to 7044726YP)

OEM Warranty Repair Part for Snapper

Not available

7036547

60

ASS'Y, Air Lift Blade

Part# 7036547 (Superseded to 7036547YP)

Note: Was 54514

OEM Warranty Repair Part for Snapper

Not available

7036547

--

BLADE, 19.64" Hi-Lift

Part# 7036547 (Superseded to 7036547YP)

OEM Warranty Repair Part for Snapper

Not available

7044686

--

DECAL, Warning

Part# 7044686 (Superseded to 7044686YP)

OEM Warranty Repair Part for Snapper

Not available

7036404

61

NUT, Weld- 10/24 Thread

Part# 7036404 (Superseded to 7036404SM)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.29

7036415

62

SCREW, 10/24 x 5/8" Pan Head

Part# 7036415 (Superseded to 7036415SM)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.74

7036433

63

STRAP, Bag Adap./Tube

Part# 7036433 (Superseded to 7036433SM)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $20.91

7036543

?64

TEENUT, 5/16-18 Thread

Part# 7036543 (Superseded to 7036543SM)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.29

7058745

65

BRACE, Bumper

Part# 7058745 (Superseded to 7058745YP)

OEM Warranty Repair Part for Snapper

Not available

7091318

66

SCREW, 5/16-18 x 3/4" Hex Head Cap, Grade 5

Part# 7091318 (Superseded to 704287)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $2.57

7091552

67

WASHER, .219 I.D. Flat

Part# 7091552 (Superseded to 7091552SM)

OEM Warranty Repair Part for Snapper

Usually leaves our warehouse in 1 business day

Your price: $2.57

7073509

--

SCREEN, Clamshell

Part# 7073509 (Superseded to 7073509YP)

Note: (Not shown)

OEM Warranty Repair Part for Snapper

Not available
