7063130 - Snapper 38" Rider Clamshell Grass Catcher Clamshell Catcher Parts Diagram

38" Rider Clamshell Grass Catcher

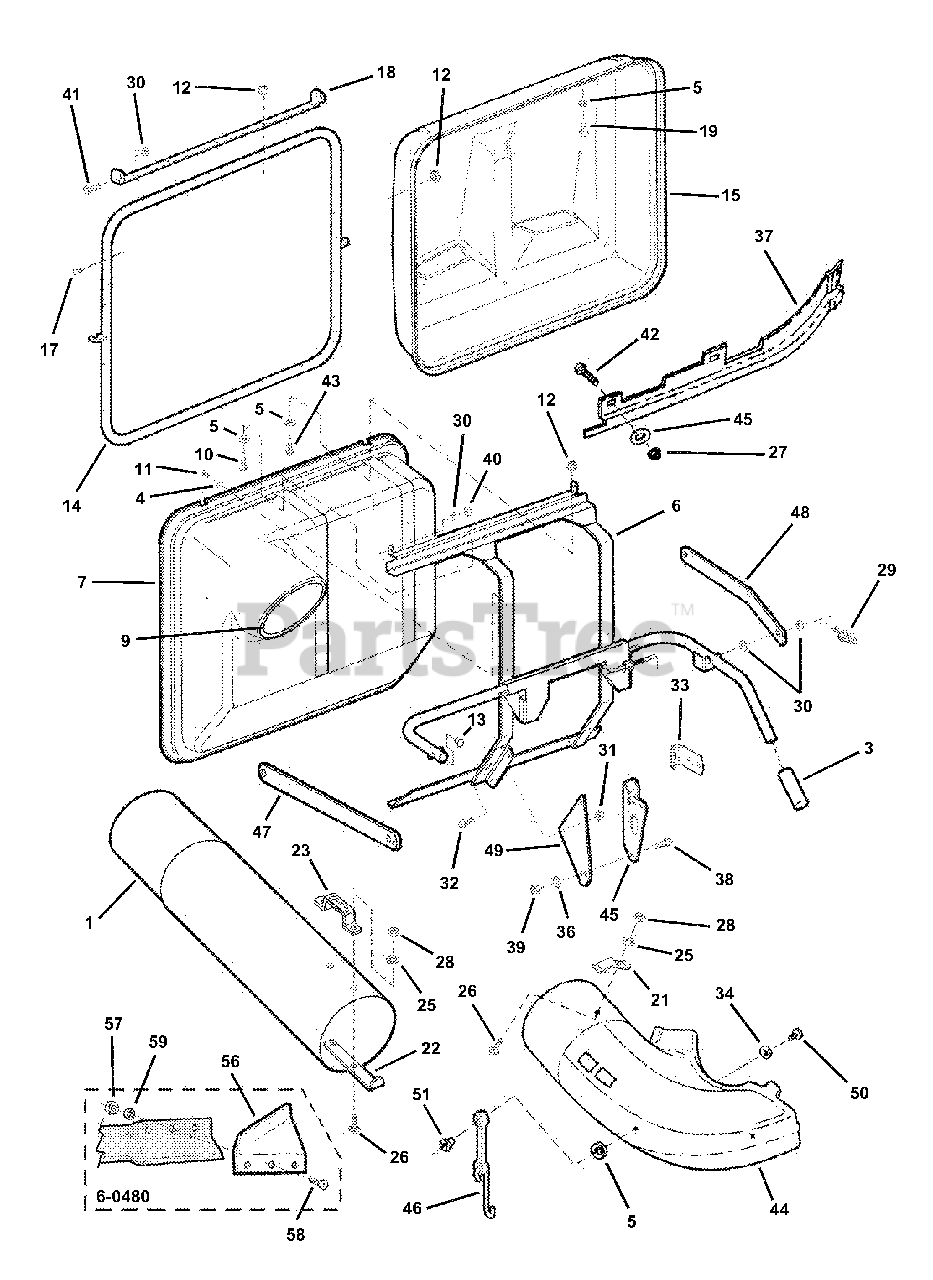

Clamshell Catcher Parts Diagram

  • Title

--

Snapper 7063130

KIT, Grass Catcher

$

$

Currently unavailable

1

Snapper 7073432

TUBE, Grass (23-3/4" long)
(Superseded to 7073432YP)

$51.99

$

Usually ships in 2-12 days

0

3

Snapper 7011870

GRIP
(Superseded to 1726317SM)

$8.49

$

In Stock, only 3 left!

0

4

Snapper 7016314

WASHER, 11/32 Flat
(Superseded to 7016314YP)

$5.49

$

Usually ships in 2-12 days

0

5

Snapper 7036422

WASHER, 3/16 Flat (3 in hardware bag)
(Superseded to 7036422SM)

$3.99

$

In Stock, only 2 left!

0

6

Snapper 7058615

WELDMENT, Front Cover Brace
(Superseded to 7058615YP)

$512.99

$

Usually ships in 2-12 days

0

7

Snapper 7072873

COVER, Front
(Superseded to 7072873YP)

$433.99

$

Usually ships in 2-12 days

0

8

Snapper 7072874

DEFLECTOR
(Superseded to 7072874YP)

Note: (Not Shown)

$207.99

$

Usually ships in 2-12 days

0

9

Snapper 7072950

GASKET, Chute

$

$

Not available

10

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

Note: Was 90307

$3.49

$

In Stock, Qty 12

0

11

Snapper 7090999

SCREW, 1/4-20 x 5/8" Pan Head Self-Tapping
(Superseded to 7090999FS)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7091079

NUT, #10-24 Hex Fl. Lock
(Superseded to 703917)

$3.49

$

In Stock, Qty 20+

0

13

Snapper 7072951

END CAP, Tube
(Superseded to 7072951YP)

$2.49

$

Usually ships in 2-12 days

0

14

Snapper 7058600

WELDMENT, Rear Cover Brace
(Superseded to 7058600YP)

$125.99

$

Usually ships in 2-12 days

0

15

Snapper 7072872

COVER, Rear
(Superseded to 7072872YP)

$253.99

$

Usually ships in 2-12 days

0

16

Snapper 7073509

SCREEN, Clamshell
(Superseded to 7073509YP)

Note: Was 72876 (Not Shown)

$233.99

$

Usually ships in 2-12 days

0

17

Snapper 7073145

BOLT, #10-24 x 1-1/2" Oval Head
(Superseded to 7073145YP)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper 7073179

HINGE, Rear Cover
(Superseded to 7073179YP)

$28.99

$

Usually ships in 2-12 days

0

19

Snapper 7091265

SCREW, #10-24 x 1-1/2" Machine
(Superseded to 7091265YP)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper 7031951

LATCH, Chute/Tube
(Superseded to 7031951YP)

Note: Included in Hardware Bag 58974

$5.99

$

In Stock, Qty 5

0

22

Snapper 7031952

BASE, Handle
(Superseded to 7031952YP)

Note: Included in Hardware Bag 58974

$7.49

$

In Stock, only 2 left!

0

23

Snapper 7037745

HANDLE, Tube
(Superseded to 7037745YP)

$10.99

$

Usually ships in 2-12 days

0

25

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

Note: Was 91314 (Included in Hardware Bag 58974)

$4.49

$

In Stock, Qty 13

0

26

Snapper 7091530

BOLT, 1/4-20 x 3/4" Round Hd. Short Nk. Carriage, Gr. 5
(Superseded to 7091530SM)

Note: Included in Hardware Bag 58974

$3.99

$

In Stock, Qty 5

0

27

Snapper 7091575

NUT, 5/16-18 Hex Ctr. Lock
(Superseded to 703164)

$3.49

$

In Stock, Qty 10

0

28

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Included in Hardware Bag 58974

$3.49

$

In Stock, only 4 left!

0

29

Snapper 7091593

PIN, 3/8 Self Lock Cotter
(Superseded to 703355)

Note: Included in Hardware Bag 58974

$3.99

$

In Stock, Qty 20+

0

30

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

Note: Was 91514, Included in Hardware Bag 58974

$3.99

$

In Stock, Qty 20+

0

31

Snapper 7091601

NUT, 5/16-18 Flange Lock
(Superseded to 703409)

Note: Included in Hardware Bag 58974

$5.49

$

In Stock, Qty 20+

0

32

Snapper 7091811

BOLT, 5/16-18 x 5/8" Hex Flange Lock
(Superseded to 7091811SM)

Note: Included in Hardware Bag 58974

$3.99

$

In Stock, Qty 7

0

33

Snapper 7031954

SUPPORT, Bumper
(Superseded to 7031954YP)

Note: Included in Hardware Bag 58974

$13.99

$

Usually ships in 2-12 days

0

34

Snapper 7091552

WASHER, .219 I.D. Flat
(Superseded to 7091552SM)

Note: Included in Hardware Bag 58974

$3.99

$

In Stock, only 4 left!

0

35

Snapper 7073509

SCREEN, Clamshell
(Superseded to 7073509YP)

Note: (Not shown)

$233.99

$

Usually ships in 2-12 days

0

36

Snapper 7090509

WASHER, 1/2 Internal Tooth Lock
(Superseded to 7090509YP)

Note: Included in Hardware Bag 58974

$4.49

$

In Stock, only 2 left!

0

37

Snapper 7044726

BAFFLE, 38 Deck MY 97
(Superseded to 7044726YP)

$66.99

$

Usually ships in 2-12 days

0

38

Snapper 7090646

BOLT, 1/2-13 x 1" Hex Head Cap Grade 5

Note: Included in Hardware Bag 58974

$

$

Not available

39

Snapper 7091316

NUT, 1/2-13 Hex Grade B
(Superseded to 703340)

Note: Included in Hardware Bag 58974

$7.99

$

Usually ships in 2-12 days

0

40

Snapper 7091299

NUT, 3/8-16 Hex Lock
(Superseded to 703117)

Note: Included in Hardware Bag 58974

$3.49

$

In Stock, Qty 20+

0

41

Snapper 7091304

SCREW, 3/8-16 x 1" Hex Head Cap, Grade 5
(Superseded to 703407)

Note: Included in Hardware Bag 58974

$11.99

$

In Stock, Qty 5

0

42

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, Grade 5
(Superseded to 704287)

Note: Included in Hardware Bag 58974

$3.99

$

In Stock, Qty 19

0

43

Snapper 7090624

BOLT, #10-24 x 3/4" Hex Flange Lock, Grade 5
(Superseded to 7090624YP)

Note: Included in Hardware Bag 58974

$3.49

$

Usually ships in 2-12 days

0

44

Snapper 7058658

ASS'Y, Chute
(Superseded to 7058658YP)

Note: (Incl. 44A & 44B)

$228.99

$

Usually ships in 2-12 days

0

45

Snapper 7058745

BRACE, Bumper
(Superseded to 7058745YP)

Note: Included in Hardware Bag 58974

$24.99

$

Usually ships in 2-12 days

0

46

Snapper 7036433

STRAP, Bag Adap./Tube
(Superseded to 7036433SM)

Note: Included in Hardware Bag 58974

$31.99

$

In Stock, only 3 left!

0

47

Snapper 7073172

LINK, Handle (Right Hand)
(Superseded to 7073172YP)

$31.99

$

Usually ships in 2-12 days

0

48

Snapper 7073173

LINK, Handle (Left Hand)
(Superseded to 7073173YP)

$22.99

$

Usually ships in 2-12 days

0

49

Snapper 7073171

PLATE, Hitch
(Superseded to 7073171BMYP)

$21.99

$

Usually ships in 2-12 days

0

50

Snapper 7036415

SCREW, 10/24 x 5/8" Pan Head
(Superseded to 7036415SM)

Note: Included in Hardware Bag 58974

$3.99

$

In Stock, only 2 left!

0

51

Snapper 7036404

NUT, Weld- 10/24 Thread
(Superseded to 7036404SM)

Note: Included in Hardware Bag 58974

$3.49

$

Usually ships in 2-12 days

0

56

Snapper 7037723

Air Lift
(Superseded to 7037723BMYP)

$8.49

$

Usually ships in 2-12 days

0

57

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

58

Snapper 7090228

SCREW, 5/16-24 x 5/8" Oval Head Machine
(Superseded to 7090228SM)

$5.49

$

In Stock, only 4 left!

0

59

Snapper 7090391

WASHER, 5/16 Int. Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0
