7063156 - Snapper 33" Yard Cruiser Twin Grass Catcher Catcher Group Parts Diagram

33" Yard Cruiser Twin Grass Catcher

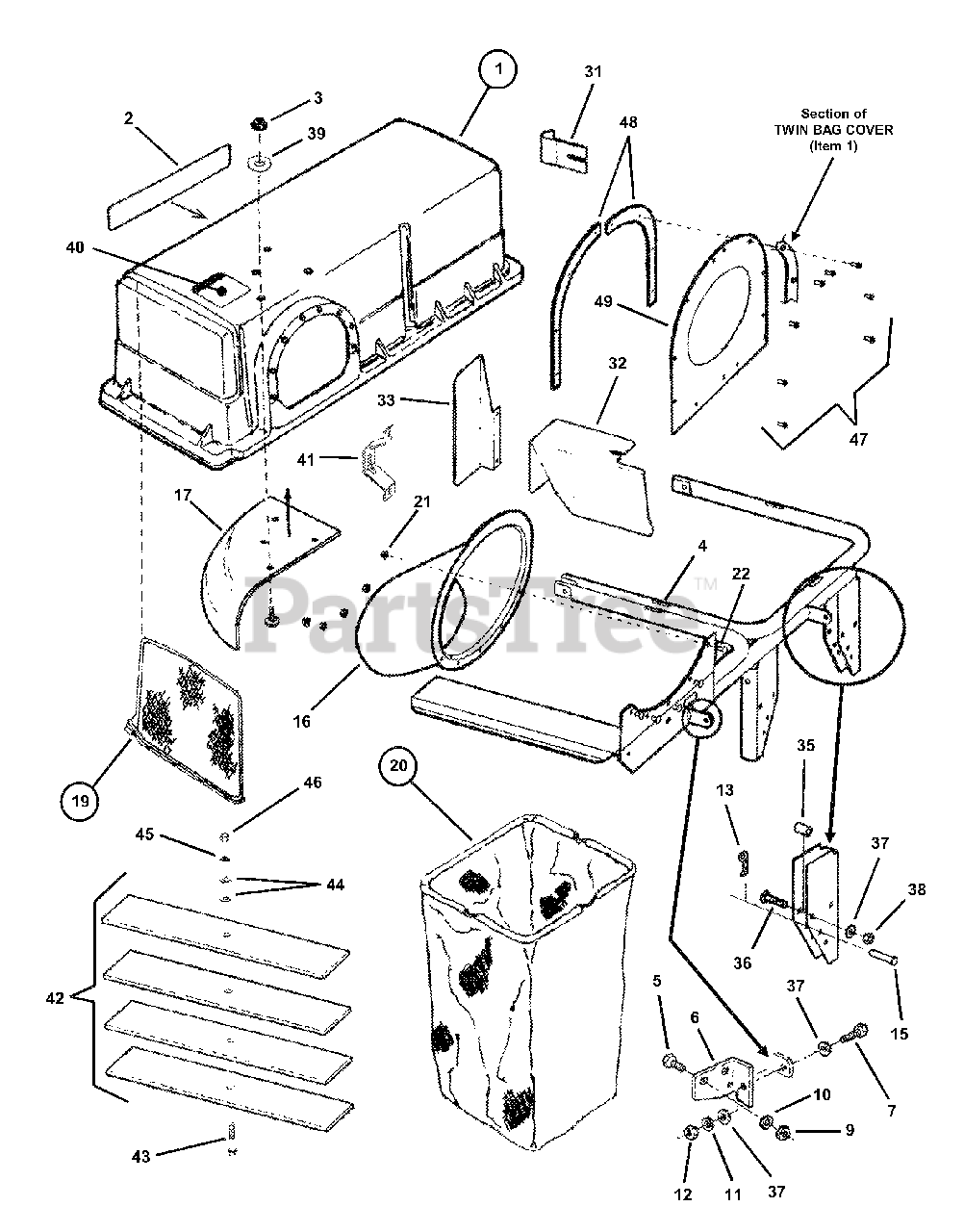

Catcher Group Parts Diagram

  • Title

--

Snapper 7063156

KIT, Grass Catcher

$

$

Currently unavailable

1

Snapper 7059710

ASS'Y, Cover
(Superseded to 7059710YP)

Note: (Incl. Decal 46627, item 47, 48 & 49)

$359.99

$

Usually ships in 2-12 days

0

2

Snapper 7019295

DECAL, Snapper
(Superseded to 7019295YP)

Note: Was 18593

$14.99

$

In Stock, only 2 left!

0

3

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Included in Hardware Bag 58913

$3.49

$

In Stock, Qty 14

0

4

Snapper 7054645

WELDMENT, Frame
(Superseded to 7054645YP)

$250.99

$

Usually ships in 2-12 days

0

5

Snapper 7091611

SCREW, 1/4-28 x 3/4"
(Superseded to 7091611YP)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper 7038087

HINGE, Top
(Superseded to 7038087YP)

$7.99

$

Usually ships in 2-12 days

0

7

Snapper 7090238

SCREW, 5/16-24 x 1"
(Superseded to 703301)

$4.49

$

In Stock, only 4 left!

0

9

Snapper 7090095

NUT, 1/4-28 Hex
(Superseded to 7090095FS)

Note: Was 91605

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 7090053

WASHER, 1/4" Lock
(Superseded to 703462)

Note: Was 91314 (Included in Hardware Bag 58913)

$4.49

$

In Stock, Qty 5

0

11

Snapper 7091315

WASHER, 5/16" Split
(Superseded to 703116)

$3.49

$

In Stock, Qty 6

0

12

Snapper 7091606

NUT, 5/16-24 Hex Center Lock
(Superseded to 703896)

$3.49

$

In Stock, Qty 11

0

13

Snapper 7091503

PIN, 3/32 x 1-1/2" Hair
(Superseded to 7091503SM)

Note: Included in Hardware Bag 58913

$3.99

$

In Stock, Qty 17

0

15

Snapper 7029841

PIN, 5/16 x 1-11/16" Clevis
(Superseded to 704029)

Note: Included in Hardware Bag 58913

$4.49

$

In Stock, only 2 left!

0

16

Snapper 7035706

INLET, Twin Bagger
(Superseded to 7035706YP)

$214.99

$

Usually ships in 2-12 days

0

17

Snapper 7019725

SECTOR
(Superseded to 7019725YP)

$87.99

$

Usually ships in 2-12 days

0

19

Snapper 7057652

ASS'Y, Screen (indented items)

$

$

Currently unavailable

--

Snapper 7019732

FRAME
(Superseded to 7019732YP)

$25.99

$

Usually ships in 2-12 days

0

--

Snapper 7019731

SCREEN
(Superseded to 7019731YP)

$32.99

$

Usually ships in 2-12 days

0

20

Snapper 7051930

ASS'Y, Bag (indented items)

$

$

Not available

--

Snapper 7019250

BAG, Grass Catcher
(Superseded to 7019250YP)

$86.99

$

In Stock, Qty 9

0

--

Snapper 7019965

ROD, Bag Support
(Superseded to 7019965YP)

$93.99

$

Usually ships in 2-12 days

0

--

Snapper 7014456

CONNECTOR, Rod
(Superseded to 7014456YP)

$6.49

$

Usually ships in 2-12 days

0

21

Snapper 7091545

NUT, 1/4-20 Hex Flange
(Superseded to 703916)

Note: Included in Hardware Bag 58913

$4.99

$

In Stock, only 2 left!

0

22

Snapper 7091604

BOLT, 1/4-20 x 1/2" Carriage
(Superseded to 703978)

Note: Included in Hardware Bag 58913

$3.99

$

In Stock, Qty 18

0

31

Snapper 7042716

SUPPORT, Bumper
(Superseded to 7042716YP)

$23.99

$

Usually ships in 2-12 days

0

32

Snapper 7058910

HEAT SHIELD
(Superseded to 7058910YP)

$37.99

$

Usually ships in 2-12 days

0

33

Snapper 7071677

GUARD, Muffler
(Superseded to 7071677YP)

$84.99

$

In Stock, only 1 left!

0

35

Snapper 7023797

PAD, Bumper Mount
(Superseded to 7023797YP)

$

$

Not available

36

Snapper 7091612

BOLT, 5/16-18 x 1-1/2" Carr.
(Superseded to 704210)

Note: Was 90582

$4.99

$

In Stock, only 3 left!

0

37

Snapper 7090188

WASHER, 5/16" Flat
(Superseded to 703350)

$4.49

$

Usually ships in 2-12 days

0

38

Snapper 7091575

NUT, 5/16-18 Hex Ctr. Lock
(Superseded to 703164)

Note: Was 90184

$3.49

$

In Stock, Qty 20+

0

39

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

Note: Included in Hardware Bag 58913

$4.49

$

In Stock, Qty 20+

0

40

Snapper 7046627

DECAL, Warning
(Superseded to 7046627YP)

$7.99

$

In Stock, only 2 left!

0

41

Snapper 7072239

BRACE, Twin Bag Catcher
(Superseded to 7072239YP)

$39.99

$

Usually ships in 2-12 days

0

42

Snapper 7058909

BALLAST
(Superseded to 7058909YP)

$

$

Not available

43

Snapper 7091305

SCREW, 3/8-16 x 2" Hex Cap
(Superseded to 7091305SM)

Note: Was 90588

$4.49

$

In Stock, Qty 17

0

44

Snapper 7090122

WASHER, 3/8" Flat
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

45

Snapper 7090118

WASHER, 3/8" Split Lock
(Superseded to 703454)

$3.49

$

In Stock, only 3 left!

0

46

Snapper 7091302

NUT, 3/8-16
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

In Stock, Qty 9

0

47

Snapper 7090896

SCREW, #10-24 x 1/2" Self-Tap
(Superseded to 7090896YP)

Note: Was 90853

$3.49

$

In Stock, only 3 left!

0

48

Snapper 7038276

CLAMP

$

$

Not available

49

Snapper 7019794

SEAL
(Superseded to 7019794YP)

$

$

Not available
