7063317 - Snapper 28" & 33" Rider Single Bag Grass Catcher Catcher Group Parts Diagram

28" & 33" Rider Single Bag Grass Catcher

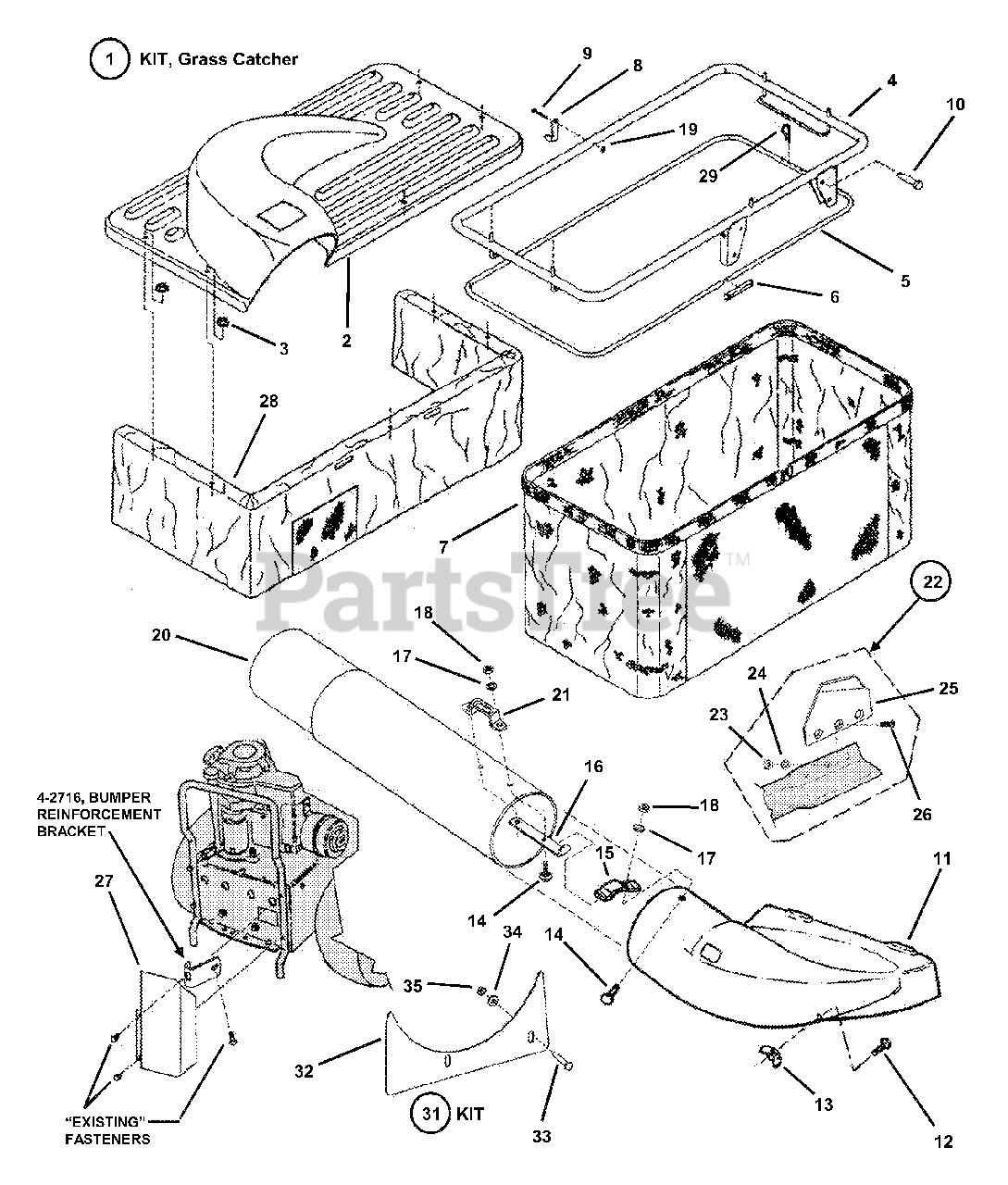

Catcher Group Parts Diagram

  • Title

1

Snapper 7063317

KIT, Grass Catcher (28" & 33") Models

Note: Was 61413 (Includes 2 thru 31)

$

$

Currently unavailable

2

Snapper 7053667

TOP, Container
(Superseded to 7053667YP)

Note: (Includes Decal Nos. 11910 & 29784)

$202.99

$

In Stock, only 1 left!

0

3

Snapper 7029840

WASHER, 5/16" Faceted
(Superseded to 704315)

Note: Included in Hardware Bag 60313

$4.49

$

Usually ships in 2-12 days

0

4

Snapper 7047973

FRAME, Weldment
(Superseded to 7047973YP)

$204.99

$

In Stock, only 1 left!

0

5

Snapper 7057248

ROD, Bag
(Superseded to 7057248YP)

Note: (Includes Item 6)

$103.99

$

Usually ships in 2-12 days

0

6

Snapper 7012556

CONNECTOR, Bag Rod
(Superseded to 7012556YP)

Note: Included in Hardware Bag 60313

$7.49

$

Usually ships in 2-12 days

0

7

Snapper 7024819

BAG, Grass
(Superseded to 7024819YP)

Note: Was 19251

$

$

Not available

8

Snapper 7031725

LATCH, Top
(Superseded to 7031725YP)

Note: Included in Hardware Bag 60313

$5.49

$

Usually ships in 2-12 days

0

9

Snapper 7090532

SCREW, #10-32 x 1-3/8" Hex Head Machine
(Superseded to 704316)

Note: Included in Hardware Bag 60313

$4.99

$

In Stock, only 1 left!

0

10

Snapper 7029841

PIN, 5/16 x 1-11/16" Clevis
(Superseded to 704029)

Note: Included in Hardware Bag 60313

$4.49

$

In Stock, Qty 6

0

11

Snapper 7019912

ADAPTER, Deck
(Superseded to 7019912YP)

Note: Was 53669 (Includes 29784 Decal) (28" & 33" Models)

$134.99

$

In Stock, only 1 left!

0

12

Snapper 7091303

BOLT, 5/16-18 x 1" Short Neck Carriage, Grade 5
(Superseded to 703800)

Note: Included in Hardware Bag 60313

$3.99

$

In Stock, Qty 18

0

13

Snapper 7091537

WING LOCK NUT, 5/16-18
(Superseded to 7091537YP)

Note: Included in Hardware Bag 60313

$4.49

$

In Stock, Qty 13

0

14

Snapper 7091530

BOLT, 1/4-20 x 3/4" Short Neck Carriage, Grade 5
(Superseded to 7091530SM)

Note: Included in Hardware Bag 60313

$3.99

$

In Stock, Qty 5

0

15

Snapper 7031951

LATCH, Tube
(Superseded to 7031951YP)

Note: Included in Hardware Bag 60313

$5.99

$

In Stock, Qty 5

0

16

Snapper 7031952

BASE, Handle
(Superseded to 7031952YP)

Note: Included in Hardware Bag 60313

$7.49

$

In Stock, only 2 left!

0

17

Snapper 7090053

WASHER, 1/4 Internal Tooth Lock
(Superseded to 703462)

Note: Was 91314 (Included in Hardware Bag 60313)

$4.49

$

In Stock, Qty 13

0

18

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Included in Hardware Bag 60313

$3.49

$

In Stock, only 4 left!

0

19

Snapper 7090376

NUT, #10-32 Hex Lock
(Superseded to 703937)

Note: Included in Hardware Bag 60313

$3.49

$

Usually ships in 2-12 days

0

20

Snapper 7014517

TUBE, Grass (36" long)
(Superseded to 7014517YP)

$125.99

$

Usually ships in 2-12 days

0

21

Snapper 7037745

HANDLE, Tube
(Superseded to 7037745YP)

Note: Included in Hardware Bag 60313

$10.99

$

Usually ships in 2-12 days

0

22

Snapper 7061777

KIT, Air Lift
(Superseded to 7061777YP)

Note: (Includes Items 23 Thru 26)

$30.99

$

Usually ships in 2-12 days

0

23

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$3.99

$

In Stock, Qty 20+

0

24

Snapper 7090391

WASHER, 5/16" Internal Tooth Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

25

Snapper 7034468

AIR-LIFT
(Superseded to 7034468BMYP)

$

$

Not available

26

Snapper 7090228

SCREW, 5-16-24 x 11/16" Machine
(Superseded to 7090228SM)

$5.49

$

In Stock, only 4 left!

0

27

Snapper 7071677

SHIELD, Muffler Heat (8 HP Engines)
(Superseded to 7071677YP)

$79.99

$

In Stock, only 1 left!

0

28

Snapper 7016108

DUST SKIRT
(Superseded to 7016108YP)

$39.99

$

In Stock, only 1 left!

0

29

Snapper 7091503

PIN, 3/32 x 1-1/2" Hair
(Superseded to 7091503SM)

Note: Included in Hardware Bag 60313

$3.99

$

In Stock, Qty 20+

0

--

Snapper 7031954

REINFORCEMENT, Bumper
(Superseded to 7031954YP)

$13.99

$

Usually ships in 2-12 days

0

31

Snapper 7063289

KIT, Catcher Debris Shield
(Superseded to 7063289YP)

Note: (Includes Items 32 Thru 35)

$29.99

$

Usually ships in 2-12 days

0

32

Snapper 7063287

SHIELD, Debris
(Superseded to 7063289YP)

$29.99

$

Usually ships in 2-12 days

0

33

Snapper 7090909

BOLT, 1/4-20 x 1-1/2" Hex
(Superseded to 703234)

$4.49

$

In Stock, only 3 left!

0

34

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 18

0

35

Snapper 7091705

NUT, 1/4-20 Hex Top Lock
(Superseded to 704319)

$3.49

$

Usually ships in 2-12 days
