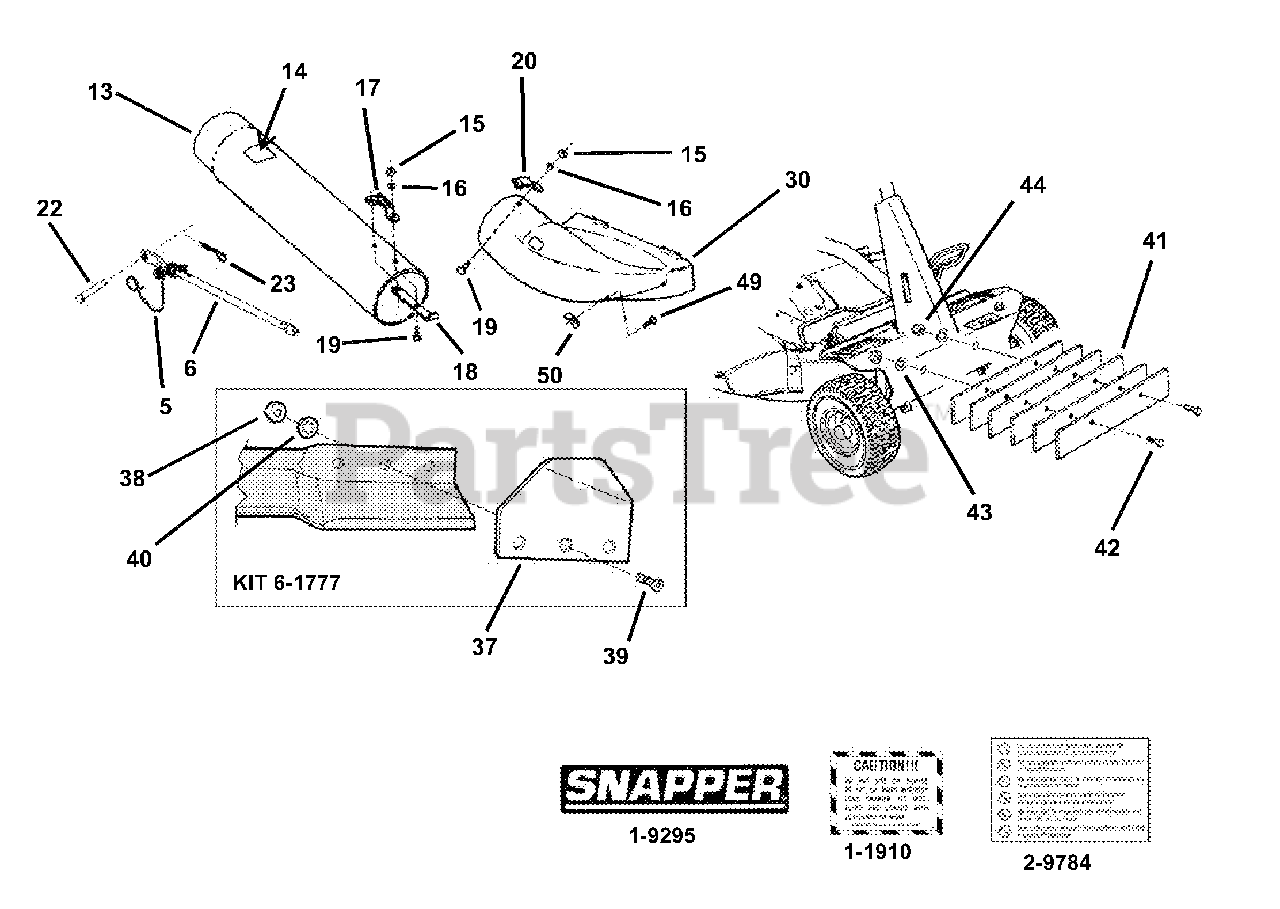

7063318 - Snapper 28" & 33" Rider Twin Bag Grass Catcher Chute Group Parts Diagram

28" & 33" Rider Twin Bag Grass Catcher

Chute Group Parts Diagram

  • Title

5

Snapper 7051407

ASSY, Spring & Hook
(Superseded to 7051407YP)

$39.99

$

Usually ships in 2-12 days

0

6

Snapper 7036073

BRACE, Rear (24-1/2" Long)
(Superseded to 7036073YP)

$49.99

$

Usually ships in 2-12 days

0

--

Snapper 7046573

BRACE, Rear (24-13/16" Long)

$

$

Not available

13

Snapper 7014517

TUBE, Grass (36" long)
(Superseded to 7014517YP)

$132.99

$

Usually ships in 2-12 days

0

14

Snapper 7011910

DECAL, Caution
(Superseded to 7011910YP)

$11.99

$

Usually ships in 2-12 days

0

15

Snapper 7091576

NUT, 1/4-20 Hex
(Superseded to 703127)

Note: Included in Hardware Bag 60589

$3.49

$

In Stock, Qty 17

0

16

Snapper 7090053

WASHER, 1/4 I.T.Lock
(Superseded to 703462)

Note: Was 91314 (Included in Hardware Bag 60589)

$4.49

$

In Stock, Qty 5

0

17

Snapper 7037745

HANDLE, Tube
(Superseded to 7037745YP)

Note: Included in Hardware Bag 60589

$11.99

$

In Stock, only 2 left!

0

18

Snapper 7031952

BASE, Tube Handle
(Superseded to 7031952YP)

Note: Included in Hardware Bag 60589

$7.99

$

In Stock, only 2 left!

0

19

Snapper 7091530

BOLT, 1/4-20 x 3/4" Carriage
(Superseded to 7091530SM)

Note: Included in Hardware Bag 60589

$4.49

$

In Stock, only 4 left!

0

20

Snapper 7031951

LATCH, Tube Chute
(Superseded to 7031951YP)

Note: Included in Hardware Bag 60589

$6.49

$

In Stock, only 2 left!

0

22

Snapper 7029841

PIN, 5/16 x 11/16" Clevis
(Superseded to 704029)

Note: Included in Hardware Bag 60589

$4.49

$

In Stock, only 2 left!

0

23

Snapper 7091503

PIN, 3/32 x 1-1/2" Hair
(Superseded to 7091503SM)

Note: Included in Hardware Bag 60589

$3.99

$

In Stock, Qty 20+

0

30

Snapper 7019912

ADAPTER, 28" & 33"
(Superseded to 7019912YP)

Note: Was 53669 (Incl. Decal 29784)

$142.99

$

In Stock, only 4 left!

0

37

Snapper 7034468

LIFT, Air
(Superseded to 7034468BMYP)

$

$

Not available

38

Snapper 7091297

NUT, 5/16-24 Hex
(Superseded to 703331)

Note: Was 90223

$4.49

$

In Stock, Qty 17

0

39

Snapper 7090228

SCREW, 5/16-24 x 21/32
(Superseded to 7090228SM)

$5.99

$

In Stock, Qty 20+

0

40

Snapper 7090391

WASHER, 5/16" I. T. Lock
(Superseded to 703587)

$4.49

$

In Stock, Qty 20+

0

41

Snapper 7072416

WEIGHT, Front Frame
(Superseded to 7072416YP)

$30.99

$

Usually ships in 2-12 days

0

42

Snapper 7091976

SCREW, 5/8-11 x 1-3/4" Cap
(Superseded to 7091976YP)

$3.99

$

Usually ships in 2-12 days

0

43

Snapper 7090333

WASHER, 5/8 Split Lock
(Superseded to 7090333YP)

$3.99

$

In Stock, only 1 left!

0

44

Snapper 7090537

NUT, 5/8-11 Hex
(Superseded to 703912)

$3.49

$

Usually ships in 2-12 days

0

49

Snapper 7091303

BOLT, 5/16-18 x 1" Carriage
(Superseded to 703800)

Note: Included in Hardware Bag 60589

$3.99

$

In Stock, Qty 20+

0

50

Snapper 7091537

WING LOCKNUT, 5/16-18
(Superseded to 7091537YP)

Note: Included in Hardware Bag 60589

$4.49

$

In Stock, only 2 left!

0

1-9295

Snapper 7019295

DECAL, SNAPPER
(Superseded to 7019295YP)

$14.99

$

In Stock, only 3 left!

0

1-1910

Snapper 7011910

DECAL, GRASS CATCHER
(Superseded to 7011910YP)

$11.99

$

Usually ships in 2-12 days

0

2-9784

Snapper 7029784

DECAL, DECK / CHUTE INT'L
(Superseded to 7029784SM)

$6.49

$

Usually ships in 2-12 days

0
