7063338 - Snapper Windshield Kit Grounds Cruiser Windshield Kit w/Muffler Parts Diagram

Windshield Kit

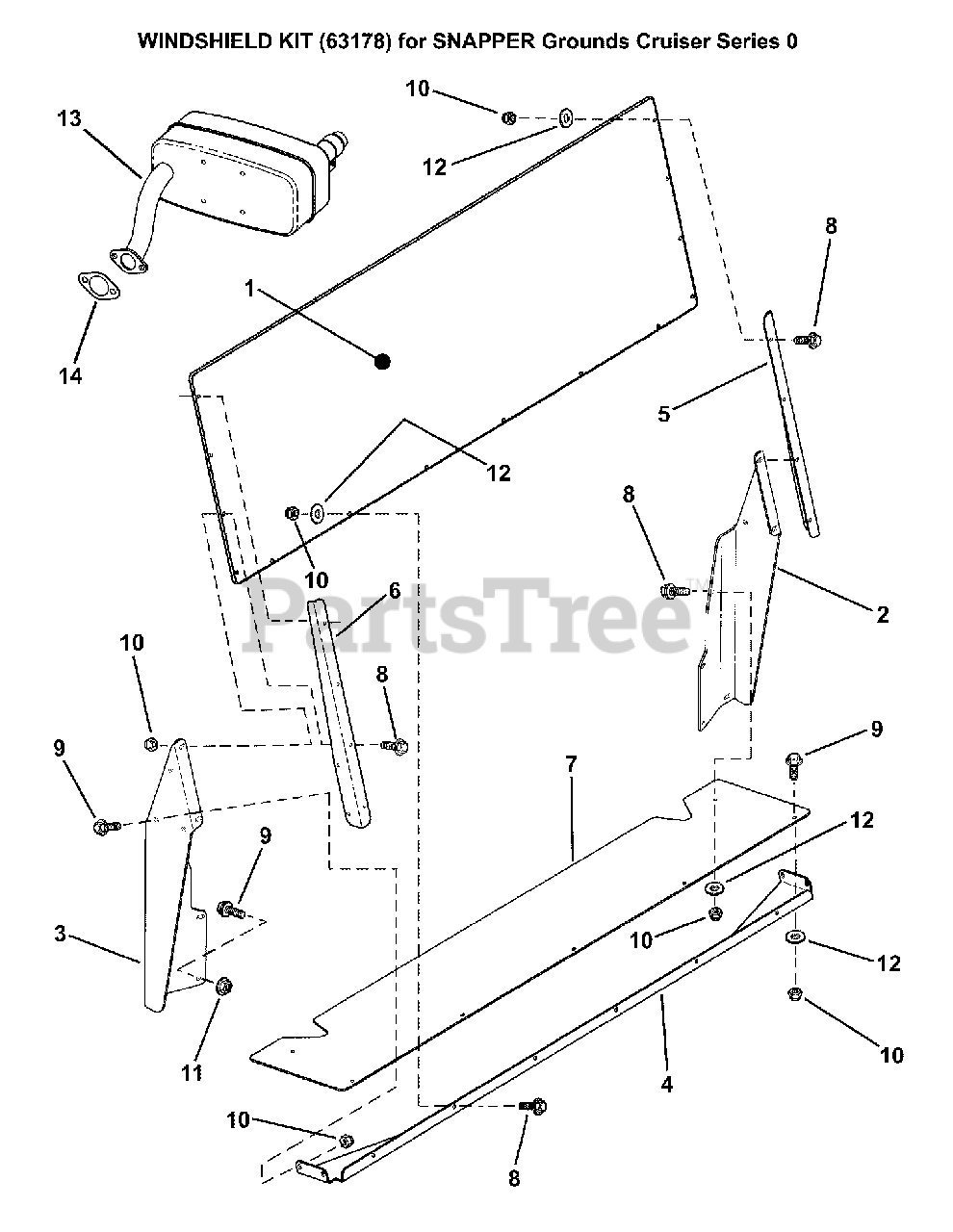

Grounds Cruiser Windshield Kit w/Muffler Parts Diagram

  • Title

--

Snapper 7063178

KIT, Windshield Kit (Replaced by 7063338)

Note: N/A 2005

$

$

Currently unavailable

1

Snapper 7073906

WINDSHIELD, Grounds Cruiser
(Superseded to 7073906YP)

$598.99

$

Usually ships in 2-12 days

0

2

Snapper 7073907

BRACKET, LH Windshield Mount
(Superseded to 7073907YP)

$119.99

$

Usually ships in 2-12 days

0

3

Snapper 7073908

BRACKET, RH Windshield Mount
(Superseded to 7073908YP)

$119.99

$

Usually ships in 2-12 days

0

4

Snapper 7073909

BRACKET, Lower Windshield Frame

$

$

Currently unavailable

5

Snapper 7073910

BRACKET, LH Windshield Frame
(Superseded to 7073910YP)

$51.99

$

Usually ships in 2-12 days

0

6

Snapper 7073911

BRACKET, RH Windshield Frame
(Superseded to 7073911YP)

$51.99

$

Usually ships in 2-12 days

0

7

Snapper 7073960

WIND GUARD, Rubber

$

$

Not available

8

Snapper 7090986

BOLT, 1/4-20 x 1" Hex Flange Lock

$

$

Not available

9

Snapper 7090596

BOLT, 1/4-20 x 5/8" Hex Flange Lock, GR5

$

$

Not available

10

Snapper 7091603

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock, GR5
(Superseded to 703233)

$4.49

$

In Stock, only 1 left!

0

12

Snapper 7091294

WASHER, 1/4" Flat
(Superseded to 703332)

$4.49

$

In Stock, Qty 11

0

--

Snapper 7073976

INSTRUCTION SHEET, Windshield Kit

Note: not shown

$

$

Currently unavailable

--

Snapper 7063337

KIT, Welded Muffler, Utility Vehicle
(Superseded to 7063337YP)

Note: includes 3 items shown below

$253.99

$

Usually ships in 2-12 days

0

13

Snapper 7075732

MUFFLER, Welded, Utility Vehicle
(Superseded to 7063337YP)

Note: Muffler comes with spark arrestor, clamp and screw installed.

$253.99

$

Usually ships in 2-12 days

0

14

Snapper 7075739

GASKET, Kawasaki Exhaust

Note: Kaw. #11009-2487

$

$

Currently unavailable

--

Snapper 7075733

INSTRUCTIONS, Welded Muffler, Utility Vehicle

Note: not shown

$

$

Currently unavailable
