7063347 - Snapper 61" Z-VAC Triple Bag Grass Catcher BLOWER MOUNT GROUP 61 Parts Diagram

61" Z-VAC Triple Bag Grass Catcher

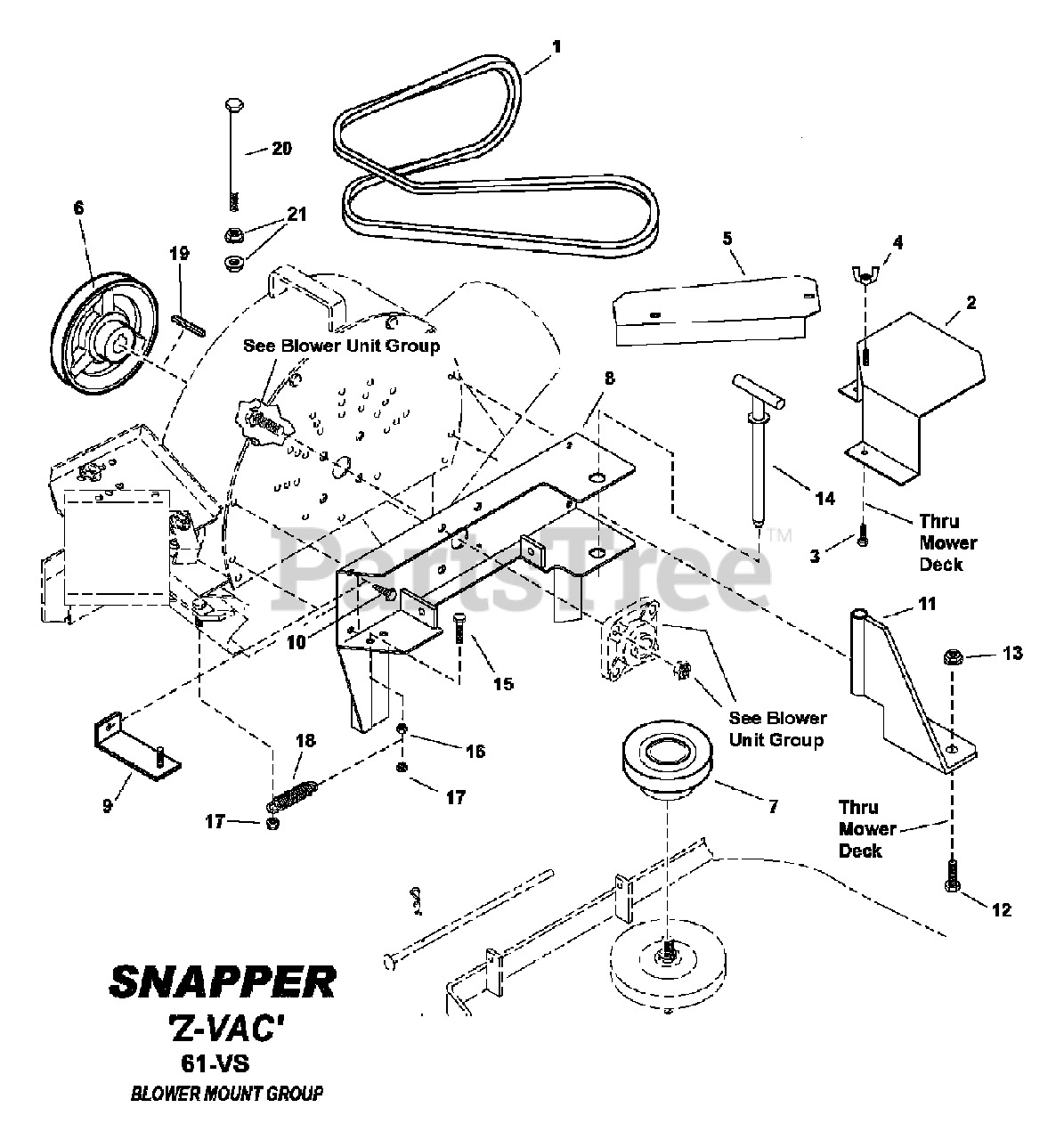

BLOWER MOUNT GROUP 61 Parts Diagram

  • Title

1

Snapper 3022844

BELT, A Section, 92.0" effective length
(Superseded to 5022844SM)

$62.99

$

Usually ships in 2-12 days

0

2

Snapper 7033867

GUARD, Pulley
(Superseded to 7033867YP)

$74.99

$

Usually ships in 2-12 days

0

3

Snapper 7091527

SCREW, 5/16-18 x 1-1/4" Hex Head Cap, GR5
(Superseded to 7091527YP)

$4.49

$

In Stock, only 4 left!

0

4

Snapper 7091537

WING LOCKNUT 5/16-18
(Superseded to 7091537YP)

$4.49

$

In Stock, Qty 20+

0

5

Snapper 7033847

BELT GUARD, 61" Deck
(Superseded to 7033847YP)

$34.99

$

Usually ships in 2-12 days

0

6

Snapper 3046809

PULLEY, Blower Input, 61"
(Superseded to 3046809YP)

$145.99

$

Usually ships in 2-12 days

0

7

Snapper 3036324

PULLEY, 48"/ 52" Spindle
(Superseded to 3036324YP)

$75.99

$

Usually ships in 2-12 days

0

8

Snapper 7033873

WELDMENT, 61" Blower Mount
(Superseded to 7033873A)

$

$

Not available

9

Snapper 3027507

WELDMENT, Guard Support Bracket

$35.99

$

Usually ships in 2-12 days

0

10

Snapper 7091541

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

11

Snapper 3027508

WELDMENT, Deck Mount Bracket
(Superseded to 3027508YP)

$68.99

$

Usually ships in 2-12 days

0

12

Snapper 7091304

* SCREW, 3/8-16 x 1" Hex Head Cap, GR5
(Superseded to 703407)

$11.99

$

Usually ships in 2-12 days

0

13

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 20+

0

14

Snapper 3032118

WELDMENT, T-Handle Pin
(Superseded to 3032118YP)

$49.99

$

Usually ships in 2-12 days

0

15

Snapper 7027168

* SCREW, 5/16-18 x 1" Hex Head Cap, GR5
(Superseded to 703585)

$4.99

$

Usually ships in 2-12 days

0

16

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

17

Snapper 7091575

NUT, 5/16-18 Hex Center Lock, GR B
(Superseded to 703164)

Note: Was 91067

$3.49

$

In Stock, Qty 20+

0

18

Snapper 3020807

SPRING, Idler, Fast Vac
(Superseded to 3020807SM)

$20.99

$

Usually ships in 2-12 days

0

19

Snapper 7012315

KEY, 1/4 Square x 1.44
(Superseded to 7012315YP)

$2.99

$

Usually ships in 2-12 days

0

20

Snapper 7091617

SCREW, 3/8-16 x 6" Hex Head Cap, GR5
(Superseded to 7091617YP)

$6.99

$

Usually ships in 2-12 days

0

21

Snapper 7090951

* NUT, 5/16-18 Hex Large Flange Center Lock
(Superseded to 704001)

$4.49

$

In Stock, only 2 left!

0
