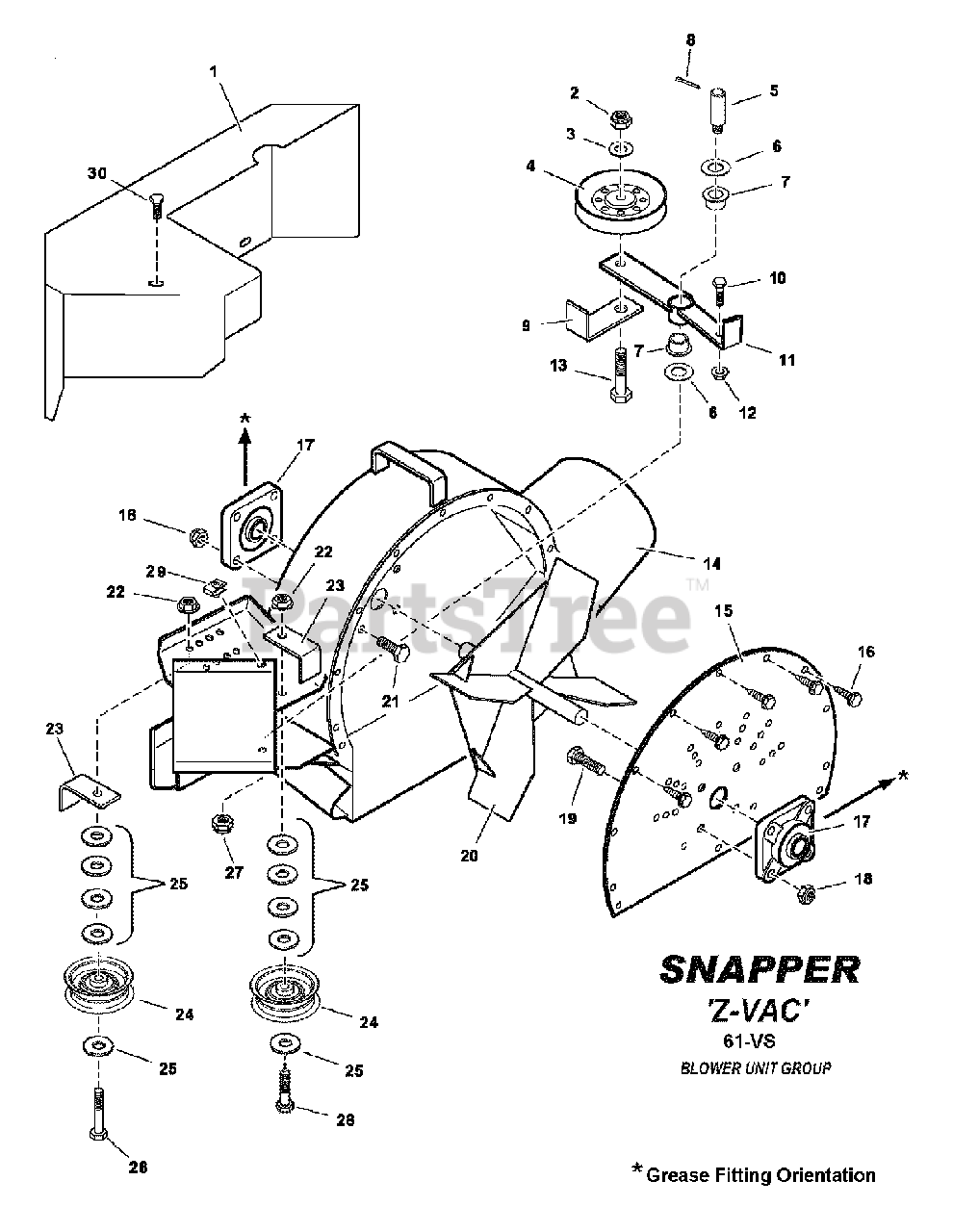

7063347 - Snapper 61" Z-VAC Triple Bag Grass Catcher BLOWER UNIT GROUP 61 Parts Diagram

61" Z-VAC Triple Bag Grass Catcher

BLOWER UNIT GROUP 61 Parts Diagram

  • Title

1

Snapper 3046782

WELDMENT, Blower Belt Guard
(Superseded to 5403736A)

$145.99

$

Usually ships in 2-12 days

0

2

Snapper 7091121

NUT, 1/2-13 Hex Nyloc

$

$

Not available

3

Snapper 7090250

* WASHER, 1/2" Flat SAE
(Superseded to 704123)

$4.49

$

In Stock, Qty 20+

0

4

Snapper 3021097

PULLEY, A Groove Idler, Steel
(Superseded to 3021097YP)

$70.99

$

Usually ships in 2-12 days

0

5

Snapper 7035816

IDLER STUD (3/8-24 thread)
(Superseded to 7035816YP)

$

$

Not available

6

Snapper 7091804

FLAT WASHER, 9/16 Type Narrow
(Superseded to 5103679)

$4.49

$

Usually ships in 2-12 days

0

7

Snapper 7014409

FLANGE BEARING, 9/16" I.D. (powdered metal)
(Superseded to 7014409SM)

$7.49

$

In Stock, Qty 6

0

8

Snapper 7091598

PIN, 1/8 x 3/4" Cotter
(Superseded to 703958)

$4.49

$

In Stock, Qty 14

0

9

Snapper 3046824

BELT RETAINER, Idler
(Superseded to 3046824YP)

$20.99

$

Usually ships in 2-12 days

0

10

Snapper 7091527

SCREW, 5/16-18 x 1-1/4" Hex Head Cap, GR5
(Superseded to 7091527YP)

$4.49

$

In Stock, only 4 left!

0

11

Snapper 3047253

WELDMENT, Idler Arm
(Superseded to 3047253YP)

$116.99

$

Usually ships in 2-12 days

0

12

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

13

Snapper 7091218

SCREW, 1/2-13 x 2-1/2" Hex Head Cap, GR5
(Superseded to 703449)

$4.99

$

Usually ships in 2-12 days

0

14

Snapper 3046781

WELDMENT, Blower Housing
(Superseded to 5403723A)

$762.99

$

Usually ships in 2-12 days

0

15

Snapper 3046853

BACK PLATE, Blower
(Superseded to 3046853YP)

$60.99

$

Usually ships in 2-12 days

0

16

Snapper 7091541

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

17

Snapper 3022832

BEARING, Pillow Block, Blower
(Superseded to 5022832)

Note: includes grease fitting

$75.99

$

Usually ships in 2-12 days

0

18

Snapper 7090839

NUT, 7/16-14 Hex Center Lock, GR5 or B
(Superseded to 7090839SM)

$5.49

$

In Stock, Qty 7

0

19

Snapper 3031920

SCREW, 7/16-14 x 1-1/2" Hex Head Cap, GR5

$

$

Not available

20

Snapper 3046854

IMPELLER, Fast Vac Blower (weldment)
(Superseded to 5403741SM)

$265.99

$

Usually ships in 2-12 days

0

21

Snapper 3031919

SCREW, 7/16-14 x 1-1/4" Hex Head Cap, GR5

$

$

Not available

22

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 13

0

23

Snapper 3046813

BELT RETAINER
(Superseded to 5403749A)

$20.99

$

Usually ships in 2-12 days

0

24

Snapper 7035867

PULLEY, Flat Idler, 2-3/4" O.D.
(Superseded to 7035867YP)

$78.99

$

In Stock, only 2 left!

0

25

Snapper 7090122

WASHER, 3/8" Flat SAE
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

26

Snapper 7091560

SCREW, 3/8-16 x 2-1/4" Hex Head Cap, GR5
(Superseded to 703872)

$4.99

$

In Stock, Qty 18

0

27

Snapper 7091518

NUT, 3/8-24 Hex Nyloc
(Superseded to 703901)

$3.49

$

In Stock, Qty 5

0

28

Snapper 7091305

SCREW, 3/8-16 x 2" Hex Head Cap, GR5
(Superseded to 7091305SM)

$4.49

$

In Stock, Qty 20+

0

29

Snapper 7092111

U-CLIP, 5/16-18
(Superseded to 7092111YP)

$3.99

$

Usually ships in 2-12 days

0

30

Snapper 7091541

SCREW, 5/16-18 x 3/4" Hex Washer Self-Tap
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0
