7063375 - Snapper 48" Z-VAC CZT/VZT Twin Grass Catcher Z-Vac CZT/HZT Catcher Group Parts Diagram

48" Z-VAC CZT/VZT Twin Grass Catcher

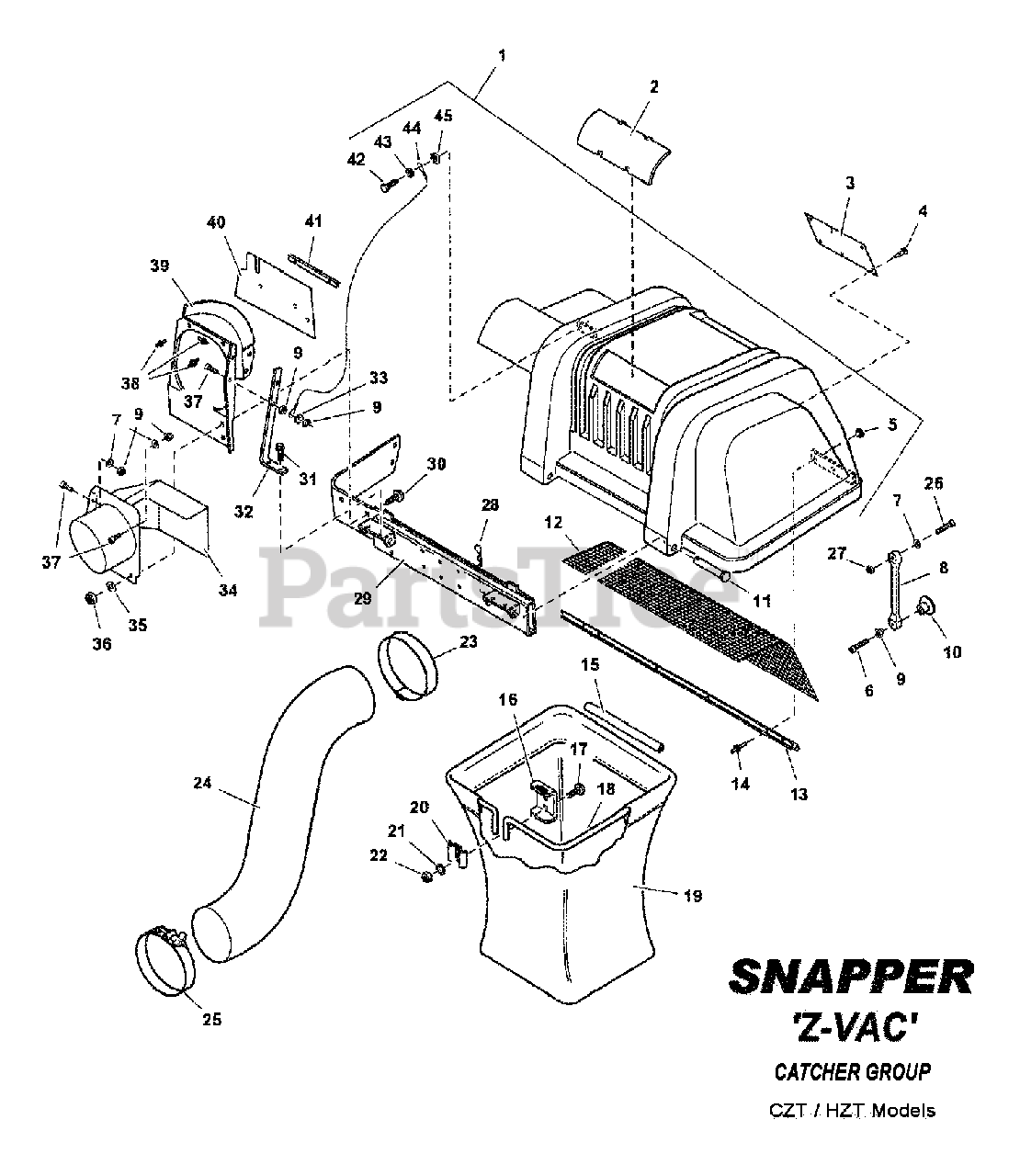

Z-Vac CZT/HZT Catcher Group Parts Diagram

  • Title

1

Snapper 3046861

ASSEMBLY, 2 Bag Cover and Screen
(Superseded to 1704056SM)

Note: (includes Item No. 1a, 5, 12, 13, 14, 42, 43, 44, 45)

$975.99

$

Usually ships in 2-12 days

0

1a

Snapper 1704033

CATCHER TOP, 2 Bag
(Superseded to 1704056SM)

$975.99

$

Usually ships in 2-12 days

0

2

Snapper 1704180

WINDOW, Cover
(Superseded to 1704180SM)

$

$

Not available

3

Snapper 1704405

DECAL, Safety, Grass Bag
(Superseded to 1732820SM)

$77.99

$

In Stock, only 1 left!

0

4

Snapper 1667248

CLIP, Canoe
(Superseded to 1667248SM)

$3.49

$

Usually ships in 2-12 days

0

5

Snapper 1910531

WASHER, .188 Rivet
(Superseded to 1910531SM)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper 7090922

SCREW, #10-32 x 1-1/2 Hex Washer Head Machine w/Nylon Patch
(Superseded to 7090922YP)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper 7091702

WASHER, .19 x .38 x .06 Flat
(Superseded to 7091702YP)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper 3021670

STRAP, Rubber

$

$

Currently unavailable

9

Snapper 7090376

NUT, #10-32 Hex Nyloc
(Superseded to 703937)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 3022838

KNOB

$

$

Currently unavailable

11

Snapper 2960367

PIN, Round Head
(Superseded to 2860367SM)

$9.49

$

Usually ships in 2-12 days

0

12

Snapper 1703700

SCREEN
(Superseded to 1703700SM)

$18.99

$

Usually ships in 2-12 days

0

13

Snapper 1704057

SEAL, Clip
(Superseded to 1704057SM)

$51.99

$

In Stock, only 1 left!

0

14

Snapper 7091578

POP RIVET, 3/16 x .265 Alum.
(Superseded to 7091578YP)

$2.49

$

Usually ships in 2-12 days

0

15

Snapper 1675707

TUBE CLIP, Grass Bag
(Superseded to 1675707SM)

$6.49

$

In Stock, only 4 left!

0

16

Snapper 1703807A

HANGER, Grass Bag
(Superseded to 1703807ASM)

$21.99

$

In Stock, only 3 left!

0

17

Snapper 7090316

BOLT, 5/16-18 x 3/4" Square Neck Carriage, GR5
(Superseded to 703225)

$3.99

$

In Stock, Qty 20+

0

18

Snapper 1703855A

HOOP, Grass Bag
(Superseded to 1703855ASM)

$139.99

$

In Stock, only 1 left!

0

19

Snapper 3000847

GRASS BAG
(Superseded to 1703764SM)

$96.99

$

In Stock, only 2 left!

0

20

Snapper 1672023A

CLAMP, Grass Bag
(Superseded to 1672023ASM)

$11.99

$

Usually ships in 2-12 days

0

21

Snapper 7090187

WASHER, 5/16" Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

22

Snapper 7091511

NUT, 5/16-18 Hex, GR5 or B
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

23

Snapper 3022875

HOSE CLAMP, Upper
(Superseded to 3022875YP)

$42.99

$

Usually ships in 2-12 days

0

24

Snapper 3022833

HOSE, Snapper Fast Vac
(Superseded to 3022833SM)

$318.99

$

In Stock, only 1 left!

0

25

Snapper 3022876

HOSE CLAMP, Lower, Fast Vac
(Superseded to 3022876YP)

$75.99

$

Usually ships in 2-12 days

0

26

Snapper 7091757

SCREW, #10-24 x 1-1/4" Hex Head Cap, GR5
(Superseded to 7091757SM)

$3.49

$

In Stock, Qty 8

0

27

Snapper 7091290

NUT, #10-24 Hex Nyloc
(Superseded to 703412)

$4.49

$

In Stock, Qty 12

0

28

Snapper 7091503

HAIR PIN, 1.6
(Superseded to 7091503SM)

Note: Was 15067

$3.99

$

In Stock, Qty 20+

0

29

Snapper 1703822

CROSS ASSEMBLY
(Superseded to 1727129ASM)

$185.99

$

Usually ships in 2-12 days

0

30

Snapper 7091530

BOLT, 1/4-20 x 3/4" Carriage
(Superseded to 7091530SM)

$3.99

$

In Stock, Qty 5

0

31

Snapper 7091084

SCREW, 1/4-20 x 3/8" Hex Washer Self-Tap
(Superseded to 703583)

$4.99

$

Usually ships in 2-12 days

0

32

Snapper 1704507

STRAP, Tube Support
(Superseded to 1704507SM)

$7.99

$

Usually ships in 2-12 days

0

33

Snapper 7091702

WASHER, .191 I.D. Flat
(Superseded to 7091702YP)

$3.49

$

Usually ships in 2-12 days

0

34

Snapper 3046722

WELDMENT, Hose Adapter/Deflector

$

$

Not available

35

Snapper 7091098

WASHER, 1/4" Flat
(Superseded to 703302)

Note: Was 90598

$4.49

$

In Stock, Qty 20+

0

36

Snapper 7091603

NUT, 1/4-20 Hex Nyloc
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

37

Snapper 7090883

SCREW, 10F x 7/8" Pan Head Cross Recess

$

$

Currently unavailable

38

Snapper 7091241

POP RIVET, 3/16"
(Superseded to 1687588YP)

$35.99

$

Usually ships in 2-12 days

0

39

Snapper 1704075

SUPPORT, Tube
(Superseded to 1704075SM)

$71.99

$

Usually ships in 2-12 days

0

40

Snapper 3046774

SEAL, 2 Bag Catcher

$

$

Currently unavailable

41

Snapper 1704508

BRACKET, Seal
(Superseded to 1704508SM)

$4.49

$

Usually ships in 2-12 days

0

42

Snapper 1960400

SCREW, #10-12 x 5/8 Hex Washer Self-Tap
(Superseded to 1960400SM)

$2.49

$

Usually ships in 2-12 days

0

43

Snapper 7090052

WASHER, 1/4 Split Lock
(Superseded to 7090052SM)

$3.49

$

In Stock, Qty 5

0

44

Snapper 1705876

CABLE, Double Loop
(Superseded to 1705876SM)

$4.99

$

Usually ships in 2-12 days

0

45

Snapper 1933886

NUT, Speed
(Superseded to 1933886SM)

$2.49

$

Usually ships in 2-12 days
