7063375 - Snapper 48" Z-VAC CZT/VZT Twin Grass Catcher Z-Vac CZT/HZT Catcher Mount Group Parts Diagram

48" Z-VAC CZT/VZT Twin Grass Catcher

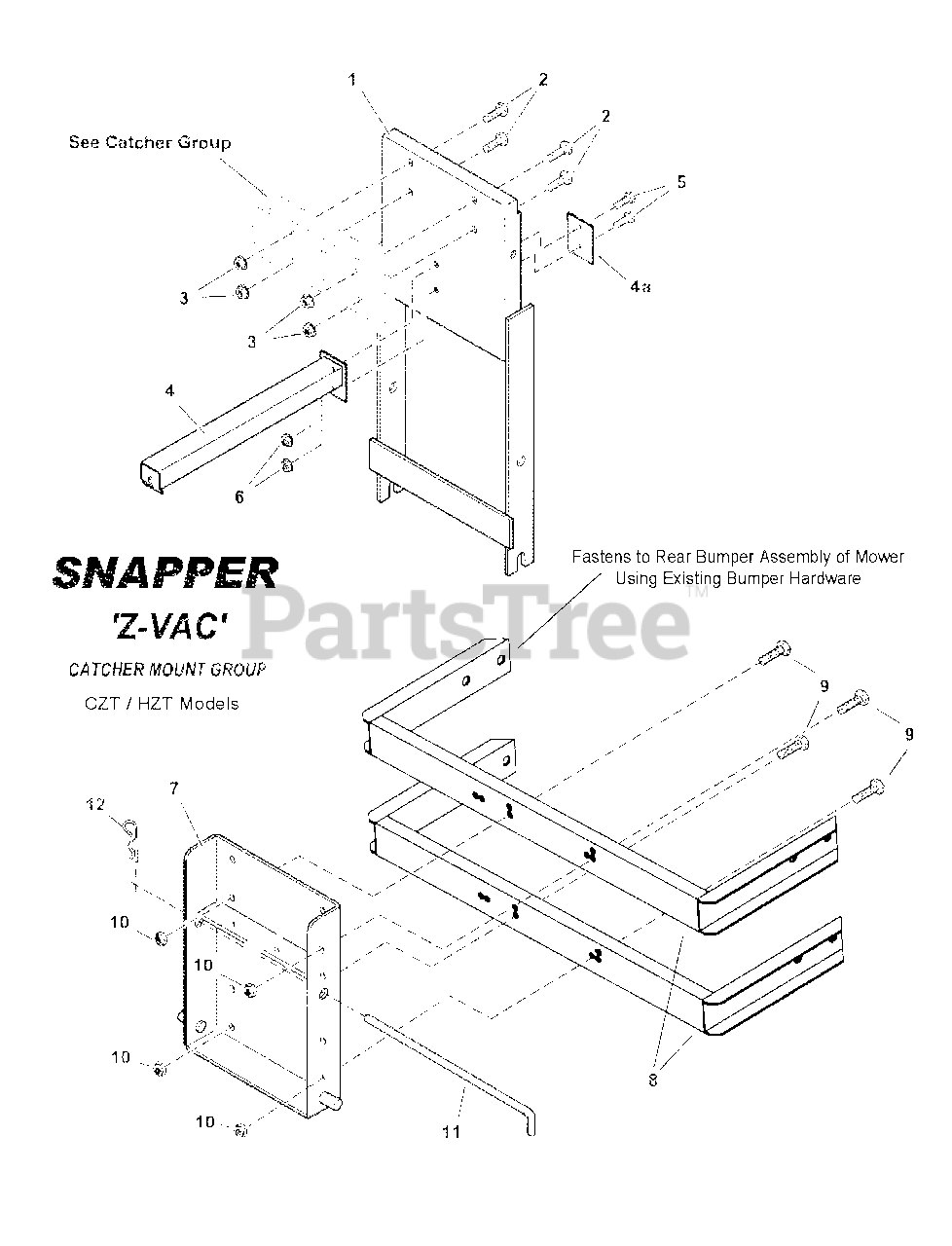

Z-Vac CZT/HZT Catcher Mount Group Parts Diagram

  • Title

0010

Snapper 1758016BMYP

GUARD, Engine Pulley

$65.99

$

Usually ships in 2-12 days

0

0020

Snapper 1752160BMYP

BRACKET, Guard Support

$11.99

$

Usually ships in 2-12 days

0

3

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

$4.99

$

In Stock, Qty 15

0

0040

Snapper 1760016CJYP

GUARD, Rear

$19.99

$

Usually ships in 2-12 days

0

4a

Snapper 3046829

REINFORCEMENT PLATE

$

$

Not available

5

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap, GR5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

6

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

7

Snapper 3046995

WELDMENT, Bumper Mounting Plate

$

$

Not available

8

Snapper 7050551

STANDOFF, Bumper Mount
(Superseded to 7050551YP)

$205.99

$

Usually ships in 2-12 days

0

9

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex Head Cap
(Superseded to 5025011X6SM)

$3.99

$

In Stock, only 2 left!

0

10

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

$5.99

$

In Stock, Qty 20+

0

11

Snapper 3046693

ROD, Support

$

$

Not available

12

Snapper 7091503

HAIRPIN, Clip
(Superseded to 7091503SM)

Note: Was 15067

$3.99

$

In Stock, Qty 20+

0

--

Snapper 3039122

EXHAUST DEFLECTOR (Not Shown)
(Superseded to 3039122YP)

$119.99

$

Usually ships in 2-12 days

0

--

Snapper 3039123

MUFFLER CLAMP (Not Shown)
(Superseded to 3039123YP)

$5.99

$

Usually ships in 2-12 days

0
