7072 A - Lawn-Boy Walk-Behind Mower (SN: E00000001 - E99999999) (1986) CARBURETOR GROUP MODELS: 7072A Parts Diagram

Walk-Behind Mower

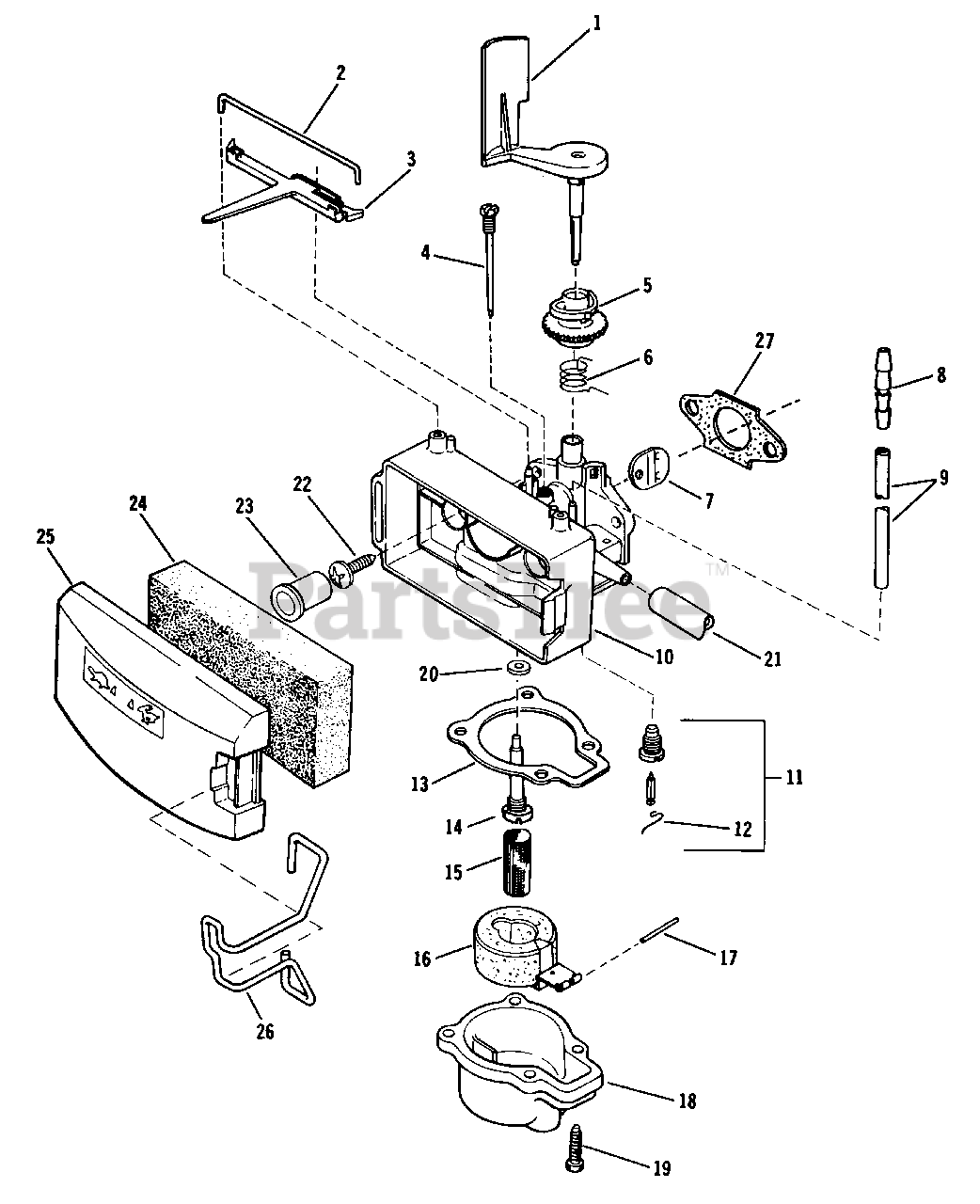

CARBURETOR GROUP MODELS: 7072A Parts Diagram

  • Title

Lawn-Boy 683501

Carburetor and Air Vane Ass'y.
(Superseded to 92-9696)

Note: Important Note: Replacement parts may not always be available in matching colors.

$284.99

$

In Stock, only 1 left!

0

1

Lawn-Boy 611405

Air Vane and Shaft
(Superseded to 104-4430)

Note: Important Note: Replacement parts may not always be available in matching colors.

$11.99

$

In Stock, Qty 20+

0

2

Lawn-Boy 610165

Retainer-Speed Control Lever

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, Qty 20+

0

3

Lawn-Boy 611070

Speed Control Lever

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 682567

Needle Adj. Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

5

Lawn-Boy 610834

Collar

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 20+

0

6

Lawn-Boy 611069

Spring

Note: Important Note: Replacement parts may not always be available in matching colors.

$14.99

$

In Stock, only 2 left!

0

7

Lawn-Boy 609632

Disc-Throttle

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

Usually ships in 3-6 days

0

8

611419

Connector-Reducer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

9

Lawn-Boy 611420

Primer Tubing

Note: Important Note: Replacement parts may not always be available in matching colors. Used on Models 4261, 4600, 5253, 7035, 8125, 8241 & R8242AE.

$10.99

$

In Stock, only 1 left!

0

Lawn-Boy 612399

Tube-Primer

Note: Important Note: Replacement parts may not always be available in matching colors.

$8.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 611421

Carburetor Body

Note: Important Note: Replacement parts may not always be available in matching colors.

$72.99

$

In Stock, only 1 left!

0

11

Lawn-Boy 681741

Float Valve and Seat Assembly
(Superseded to 92-9697)

Note: Important Note: Replacement parts may not always be available in matching colors.

$21.99

$

In Stock, Qty 20+

0

12

Lawn-Boy 603145

Clip
(Superseded to 92-9697)

Note: Important Note: Replacement parts may not always be available in matching colors.

$21.99

$

In Stock, Qty 20+

0

13

Lawn-Boy 602850

Gasket
(Superseded to 98-1362)

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 20+

0

14

Lawn-Boy 683441

Nozzle Kit

Note: Important Note: Replacement parts may not always be available in matching colors.

$87.99

$

In Stock, only 1 left!

0

15

Lawn-Boy 611071

Filter-Carburetor

Note: Important Note: Replacement parts may not always be available in matching colors.

$15.99

$

In Stock, only 3 left!

0

16

Lawn-Boy 396514

Float and Arm Assembly
(Superseded to 678113)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

17

Lawn-Boy 300096

Pin-Float
(Superseded to 92-6389)

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

In Stock, only 3 left!

0

18

Lawn-Boy 610416

Float Chamber
(Superseded to 92-6374)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 608850

Screw-Float Chamber

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, Qty 5

0

20

Lawn-Boy 612383

Washer-Nozzle

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, only 4 left!

0

21

Lawn-Boy 610741

Fuel Line

Note: Important Note: Replacement parts may not always be available in matching colors. Used on Models 4261, 772A, 8035 and R8035AE.

$

$

Not available

21

Lawn-Boy 611582

Fuel Line

Note: Important Note: Replacement parts may not always be available in matching colors. Used on Models 4261, 4600, 5253, 7035, 8125, 8241 & R8242AE.

$

$

Not available

22

Lawn-Boy 609482

Screw-Carburetor Mounting

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.49

$

In Stock, Qty 8

0

23

Lawn-Boy 611545

Plug
(Superseded to 93-4320)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

24

Lawn-Boy 609493

Element-Air Filter
(Superseded to 107-4621)

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

In Stock, Qty 20+

0

25

Lawn-Boy 610384

Cover-Air Filter
(Superseded to 93-1231)

Note: Important Note: Replacement parts may not always be available in matching colors. Used on Models 4261, 772A, 8035 and R8035AE.

$

$

Not available

25

Lawn-Boy 611376

Cover-Air Filter
(Superseded to 93-1231)

Note: Important Note: Replacement parts may not always be available in matching colors. Used on Models 4261, 4600, 5253, 7035, 8125, 8241 & R8242AE.

$

$

Not available

26

Lawn-Boy 610383

Retainer-Filter Cover

Note: Important Note: Replacement parts may not always be available in matching colors.

$7.99

$

In Stock, Qty 20+

0

27

Lawn-Boy 609476

Gasket-Carb. to C'case Cover

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available
