7072 A - Lawn-Boy Walk-Behind Mower (SN: E00000001 - E99999999) (1986) HANDLE GROUP MODELS: 7072A Parts Diagram

Walk-Behind Mower

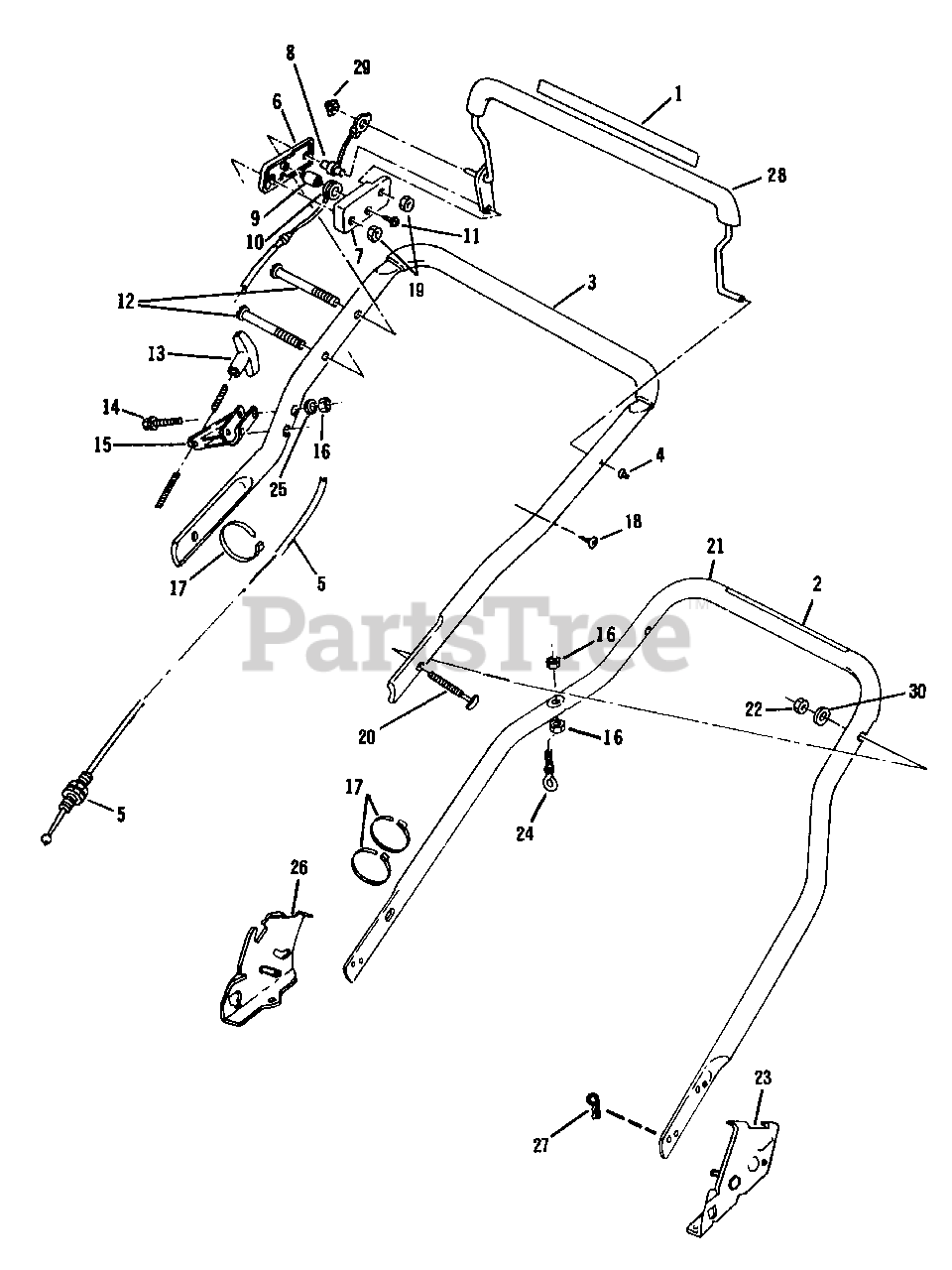

HANDLE GROUP MODELS: 7072A Parts Diagram

  • Title

1

Lawn-Boy 611244

Decal-Eng./Blade Control

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 611238

Decal-Starting Inst.

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 611544

Top Handle

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

4

Lawn-Boy 605546

Pushnut
(Superseded to 32112-11)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 16

0

5

Lawn-Boy 683041

Control Cable Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$114.99

$

Usually ships in 3-6 days

0

Lawn-Boy 683171

Control Case Assembly

Note: Important Note: Replacement parts may not always be available in matching colors. Not Shown.

$

$

Not available

6

Lawn-Boy 611782

Control Case-Outer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 611781

Control Case-Inner
(Superseded to 153702)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 611541

Column

Note: Important Note: Replacement parts may not always be available in matching colors.

$12.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 611542

Pin

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

10

Lawn-Boy 611195

Pulley
(Superseded to 612564)

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

11

Lawn-Boy 611543

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

In Stock, only 4 left!

0

12

Lawn-Boy 145289

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

13

Lawn-Boy 611340

Handle-Starter

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 611233

Screw-Truss Head

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 682684

Rope Guide Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 602315

Locknut

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

17

Lawn-Boy 320107

Tie Strap
(Superseded to 614249)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

18

Lawn-Boy 611381

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.99

$

In Stock, only 3 left!

0

19

Lawn-Boy 611258

Nut-Hex-Centerlock

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

20

Lawn-Boy 611205

Screw
(Superseded to 322-7)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

21

Lawn-Boy 612321

Handle-Bottom
(Superseded to 612787)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 608311

Nut

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

Usually ships in 3-6 days

0

23

Lawn-Boy 682714

Bracket-Handle-L.H.
(Superseded to 683925-03)

Note: Important Note: Replacement parts may not always be available in matching colors.

$80.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 611571

Eyebolt

Note: Important Note: Replacement parts may not always be available in matching colors.

$14.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 602945

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 682715

Bracket-Handle-R.H.
(Superseded to 683926-03)

Note: Important Note: Replacement parts may not always be available in matching colors.

$75.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 605803

Hair Pin-Handle Bracket

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 683480

Control Lever and Nut Assem.

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 612168

Nut-Acorn

Note: Important Note: Replacement parts may not always be available in matching colors.

$17.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 609739

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

In Stock, Qty 10

0

Lawn-Boy 679966

Grass Bag

Note: Important Note: Replacement parts may not always be available in matching colors. Not Shown. Used on Model 7035

$

$

Not available

Lawn-Boy 679487

Chute Assem.
(Superseded to 99-6411)

Note: Important Note: Replacement parts may not always be available in matching colors. Not Shown. Used on Model 7035

$

$

Not available

Lawn-Boy 607561

Grass Bag Rod

Note: Important Note: Replacement parts may not always be available in matching colors. Not Shown. Used on Model 7035

$

$

Not available
