7073 - Lawn-Boy Walk-Behind Mower (SN: G00000001 - G99999999) (1988) HANDLE GROUP MODEL: 7073 Parts Diagram

Walk-Behind Mower

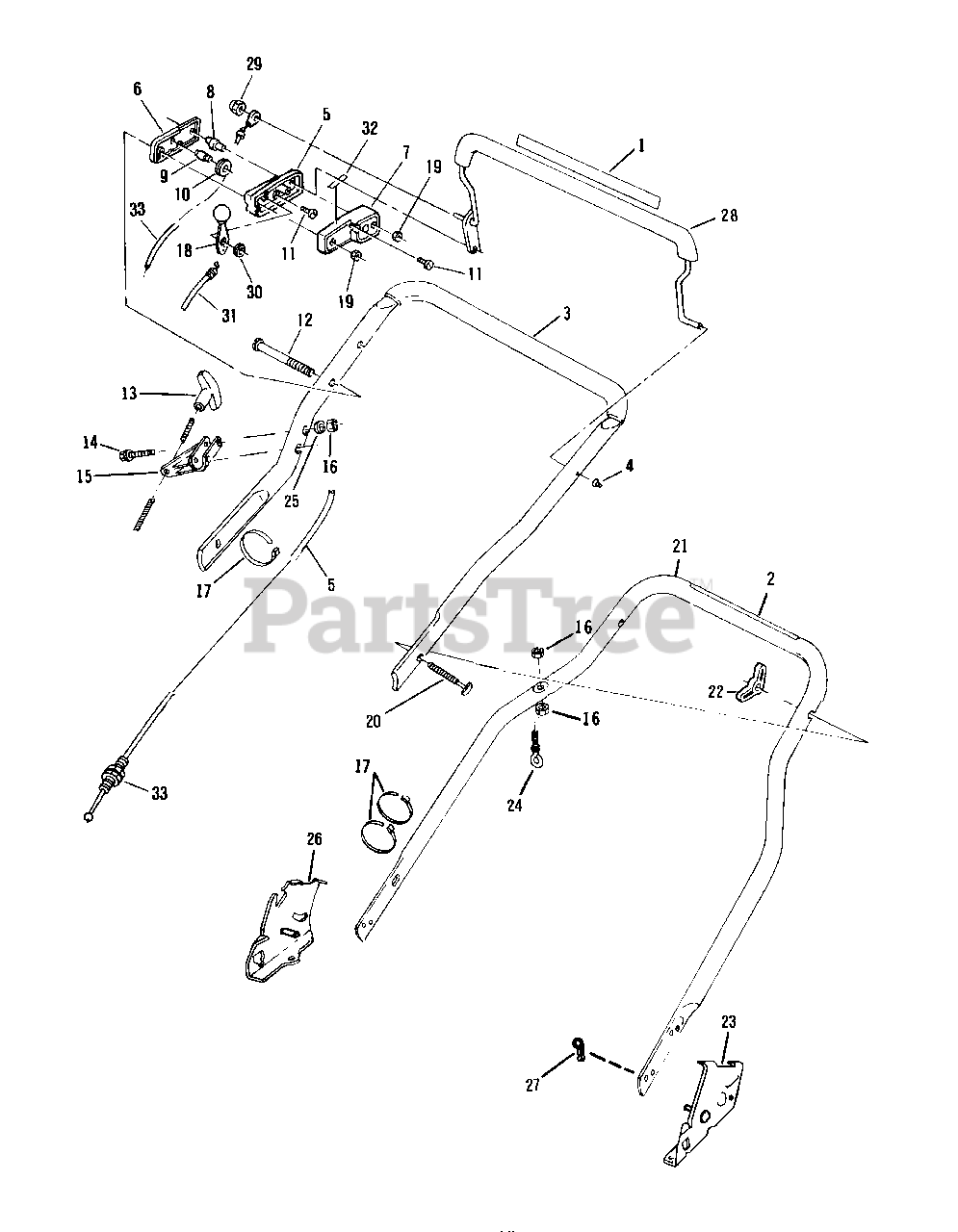

HANDLE GROUP MODEL: 7073 Parts Diagram

  • Title

1

Lawn-Boy 612651

Decal-Engine/Blade Control

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

2

Lawn-Boy 612579

Decal-Starting Instructions

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

3

Lawn-Boy 611554

Top Handle

Note: Important Note: Replacement parts may not always be available in matching colors.

$154.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 605546

Pushnut
(Superseded to 32112-11)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 15

0

5

Lawn-Boy 612569

Control Case-Center
(Superseded to 612633)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

6

Lawn-Boy 611782

Control Case-Outer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

7

Lawn-Boy 612571

Control Case-Inner

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

8

Lawn-Boy 611541

Column

Note: Important Note: Replacement parts may not always be available in matching colors.

$12.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 611542

Pin

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

10

Lawn-Boy 612564

Pulley

Note: Important Note: Replacement parts may not always be available in matching colors.

$5.49

$

Usually ships in 3-6 days

0

11

Lawn-Boy 611543

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 611799

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 612430

Handle Starter

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

14

Lawn-Boy 611233

Screw-Truss Head

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

15

Lawn-Boy 153254

Rope Guide Assembly
(Superseded to 682684)

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

16

Lawn-Boy 602315

Locknut

Note: Important Note: Replacement parts may not always be available in matching colors.

$4.49

$

In Stock, only 2 left!

0

17

Lawn-Boy 320107

Tie Strap
(Superseded to 614249)

Note: Important Note: Replacement parts may not always be available in matching colors.

$1.49

$

In Stock, Qty 20+

0

18

Lawn-Boy 683663

Lever and Knob Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

19

Lawn-Boy 611258

Nut-Hex-Centerlock

Note: Important Note: Replacement parts may not always be available in matching colors.

$3.49

$

Usually ships in 3-6 days

0

20

Lawn-Boy 611184

Screw

Note: Important Note: Replacement parts may not always be available in matching colors.

$6.99

$

In Stock, only 2 left!

0

21

Lawn-Boy 612787

Handle-Bottom

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

22

Lawn-Boy 607544

Knob

Note: Important Note: Replacement parts may not always be available in matching colors.

$22.99

$

In Stock, only 4 left!

0

23

Lawn-Boy 682714

Bracket-Handle-L.H.
(Superseded to 683925-03)

Note: Important Note: Replacement parts may not always be available in matching colors.

$80.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 611571

Eyebolt

Note: Important Note: Replacement parts may not always be available in matching colors.

$14.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 602945

Washer

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

26

Lawn-Boy 682715

Bracket-Handle-R.H.
(Superseded to 683926-03)

Note: Important Note: Replacement parts may not always be available in matching colors.

$75.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 605803

Hair Pin-Handle Bracket

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

28

Lawn-Boy 683727

Control Lever and Nut Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

29

Lawn-Boy 612168

Nut-Acorn

Note: Important Note: Replacement parts may not always be available in matching colors.

$17.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 612586

Washer-Spring

Note: Important Note: Replacement parts may not always be available in matching colors.

$2.99

$

In Stock, Qty 5

0

31

Lawn-Boy 612588

Cable-Throttle

Note: Important Note: Replacement parts may not always be available in matching colors.

$50.99

$

In Stock, only 1 left!

0

32

Lawn-Boy 612568

Decal-Throttle

Note: Important Note: Replacement parts may not always be available in matching colors.

$

$

Not available

33

Lawn-Boy 683041

Control Cable Assembly

Note: Important Note: Replacement parts may not always be available in matching colors.

$114.99

$

Usually ships in 3-6 days

0
