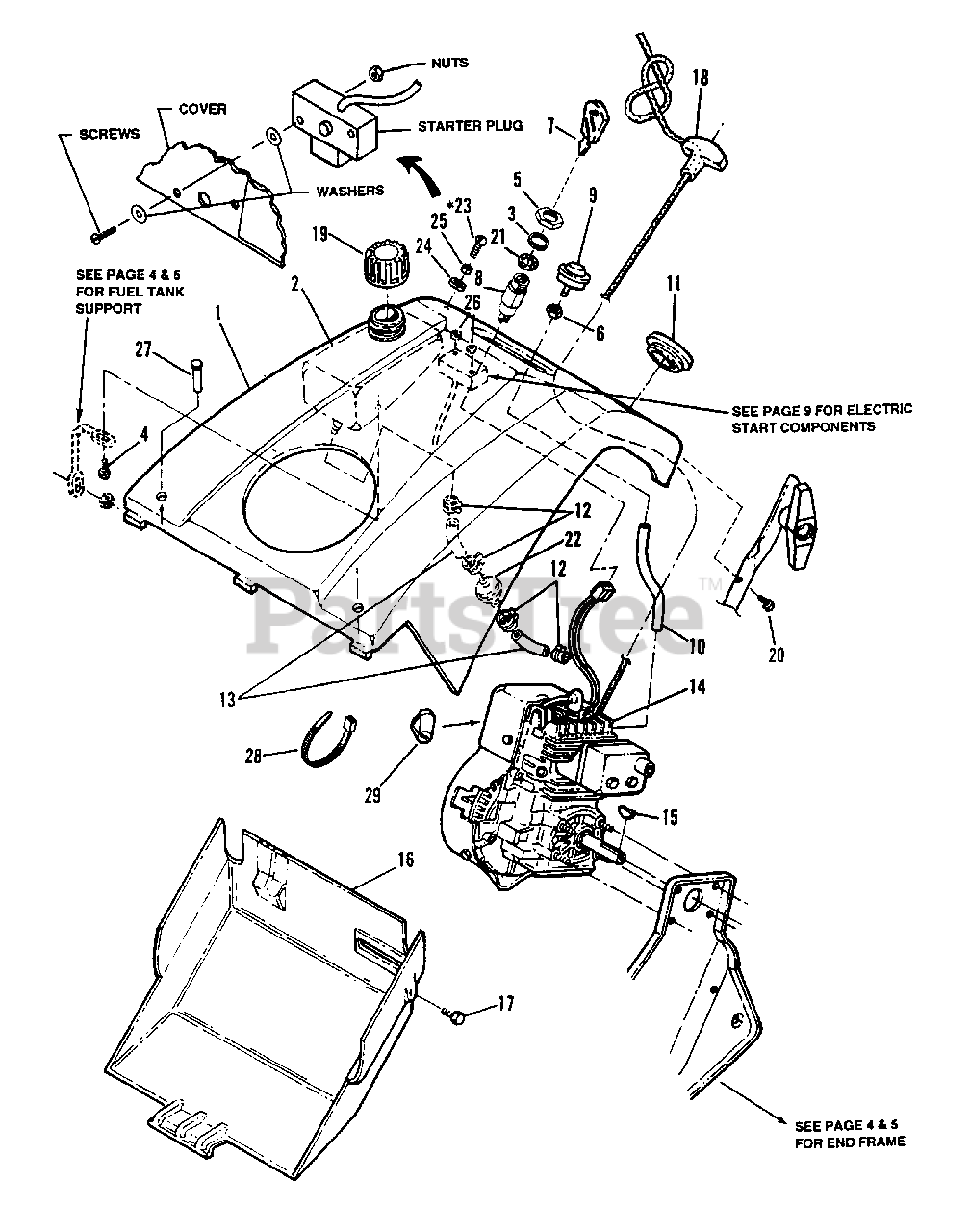

7080426 - Snapper Lady Garden 19" Snow Thrower Covers, Engine Parts Diagram

Lady Garden 19" Snow Thrower

Covers, Engine Parts Diagram

  • Title

1

Snapper 7054282

COVER, Top

Note: (Includes Eyelet #24636)

$

$

Currently unavailable

2

Snapper 7052974

ASSEMBLY, Fuel Tank
(Superseded to 7052974SM)

Note: (Includes #24495 Cap)

$152.99

$

Usually ships in 2-12 days

0

3

Snapper 7016132

SPACER
(Superseded to 7016132SM)

$3.99

$

In Stock, only 1 left!

0

4

Snapper 7091148

SCREW, 1/4-20 x 1/2" Machine
(Superseded to 7091148SM)

$4.99

$

In Stock, Qty 7

0

5

Snapper 7012685

NUT, 5/8-32 Hex
(Superseded to 7012685YP)

$3.99

$

Usually ships in 2-12 days

0

6

Snapper 7091584

NUT, 1/4-20 Hex Flange Lock
(Superseded to 703233)

Note: Was 91065

$4.49

$

In Stock, only 2 left!

0

7

Snapper 7011138

KEY
(Superseded to 7011138YP)

$7.49

$

In Stock, Qty 8

0

8

Snapper 7017817

SWITCH, Ignition
(Superseded to 7017817YP)

$31.99

$

In Stock, only 2 left!

0

9

Snapper 7014638

PRIMER
(Superseded to 7014638SM)

$

$

Not available

10

Snapper 7014639

HOSE, Primer
(Superseded to 7014639SM)

$7.99

$

Usually ships in 2-12 days

0

11

Snapper 7091183

PLUG, Hole
(Superseded to 7091183SM)

$3.49

$

Usually ships in 2-12 days

0

12

Snapper 7029900

CLAMP, Fuel Hose
(Superseded to 791850)

Note: Was 12222

$3.49

$

In Stock, Qty 20+

0

13

Snapper 7076272

HOSE, Fuel 8-1/2" Long
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

14

Snapper HSK600-1702W

* ENGINE, 3 HP (TEC HSK600-1702W)

$

$

Currently unavailable

15

Snapper 7010783

KEY, 5/32 x 5/8" Woodruff
(Superseded to 7010783YP)

$3.99

$

In Stock, only 2 left!

0

16

Snapper 7024923

COVER, Bottom
(Superseded to 7024923SM)

$20.99

$

Usually ships in 2-12 days

0

17

Snapper 7090913

SCREW, #10-24 x 1/2" Hex Washer Self-Tap (Torx)
(Superseded to 704060)

$3.49

$

In Stock, Qty 12

0

18

Snapper 7024478

HANDLE, Pull Rope

$

$

Not available

19

Snapper 7024495

CAP, Fuel Tank
(Superseded to 7024495SM)

$10.99

$

Usually ships in 2-12 days

0

20

Snapper 7091196

SCREW, 08-18 x 1-1/2" Self-Tapping
(Superseded to 7091196SM)

$4.99

$

Usually ships in 2-12 days

0

21

Snapper 7091546

WASHER, 5/8 Internal Tooth Lock
(Superseded to 1960547SM)

Note: Was 90880

$4.49

$

In Stock, Qty 6

0

22

Snapper 7014359

FILTER, In-Line
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

23

Snapper 7091246

SCREW, 1/4-20 x 3/4" Self-Tapping (Torx)
(Superseded to 7091246YP)

$3.99

$

In Stock, only 4 left!

0

24

Snapper 7027910

ISOLATOR, Fuel Tank/Cover
(Superseded to 7027910SM)

$4.49

$

Usually ships in 2-12 days

0

25

Snapper 7027911

SPACER
(Superseded to 7027911SM)

$5.99

$

Usually ships in 2-12 days

0

26

Snapper 7090010

WASHER, #10 Flat
(Superseded to 7091552SM)

Note: (Electric Start Models Only)

$3.99

$

In Stock, only 4 left!

0

27

Snapper 7091708

PIN, Clevis 1/4 x 5/8"
(Superseded to 7091708YP)

$5.99

$

Usually ships in 2-12 days

0

28

Snapper 7012080

CABLE TIE
(Superseded to 7012080SM)

$4.99

$

Usually ships in 2-12 days

0

29

Snapper 7028599

KNOB, Red
(Superseded to 7028599SM)

Note: (For Engine Choke Lever)

$3.49

$

Usually ships in 2-12 days

0
