7080426 - Snapper Lady Garden 19" Snow Thrower Discharge Chute, Deflector, Control Handle Parts Diagram

Lady Garden 19" Snow Thrower

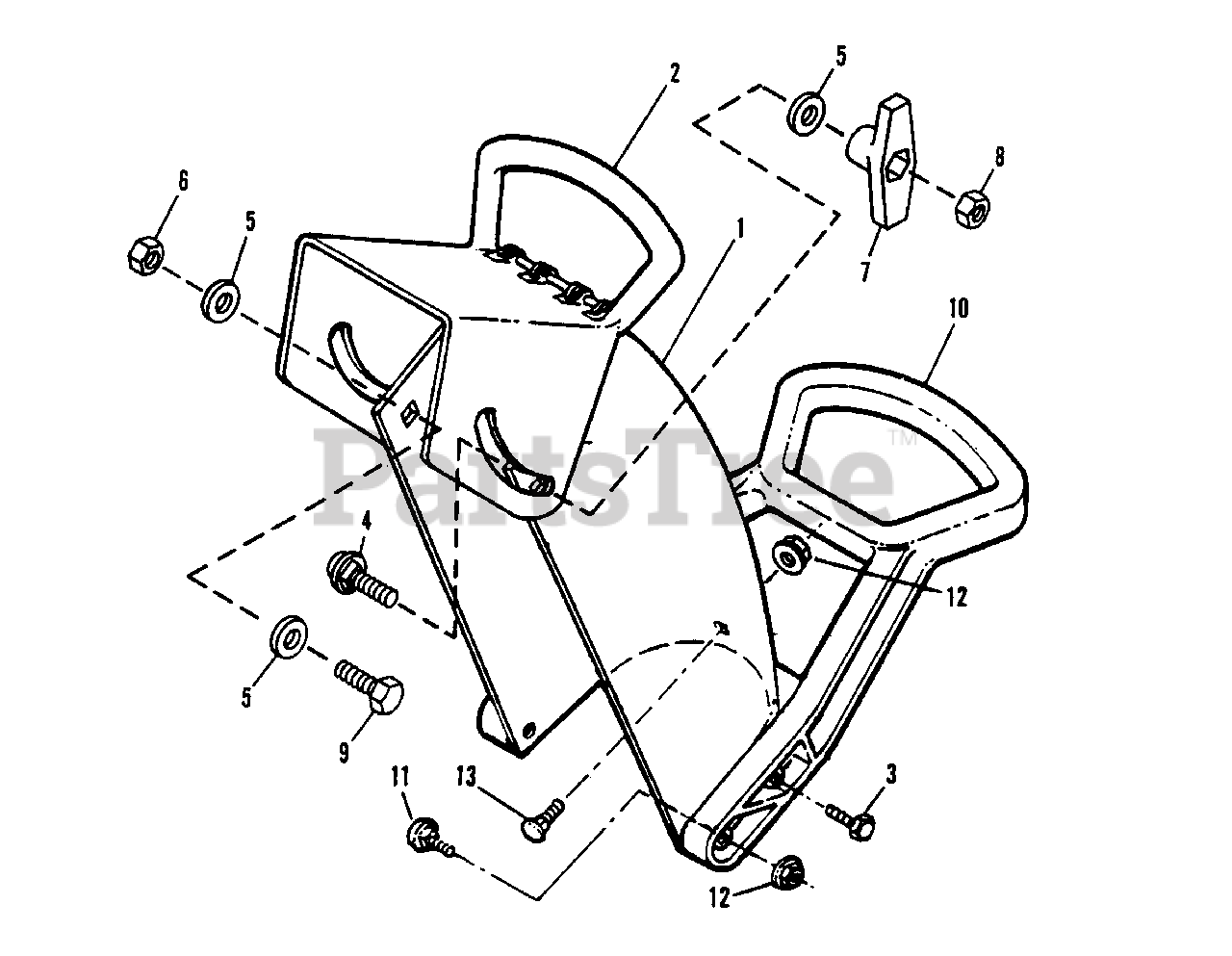

Discharge Chute, Deflector, Control Handle Parts Diagram

  • Title

1

Snapper 7052967

CHUTE, Discharge

Note: (Includes Decal #24845)

$

$

Not available

2

Snapper 7052975

DEFLECTOR, Chute
(Superseded to 7052975SM)

Note: (Includes Decal #24844)

$70.99

$

Usually ships in 2-12 days

0

3

Snapper 7091318

SCREW, 5/16-18 x 3/4" Hex Cap
(Superseded to 704287)

Note: Was 90206

$3.99

$

In Stock, Qty 19

0

4

Snapper 7091303

BOLT, 5/16-18 x 1" Short Neck Carriage (Gr. 5)
(Superseded to 703800)

Note: Was 91072

$3.99

$

In Stock, Qty 16

0

5

Snapper 7091076

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 7091606

NUT, 5/16-24 Hex Center Lock
(Superseded to 703896)

Note: Was 91074

$3.49

$

In Stock, Qty 8

0

7

Snapper 7035744

T-KNOB, Plastic
(Superseded to 7105085YP)

Note: Was 16324

$3.99

$

In Stock, Qty 20+

0

8

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 91069

$3.49

$

In Stock, Qty 20+

0

9

Snapper 7091021

SCREW, 5/16-24 x 3/4" Hex Cap
(Superseded to 703336)

$4.49

$

In Stock, Qty 5

0

10

Snapper 7024485

HANDLE, Chute Control
(Superseded to 7046340SM)

$58.99

$

Usually ships in 2-12 days

0

11

Snapper 7091928

BOLT, 5/16-18 x 1-1/4" Short Neck Carriage (Gr. 5)
(Superseded to 703446)

Note: Was 90978

$4.49

$

Usually ships in 2-12 days

0

12

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 91070

$5.49

$

In Stock, Qty 20+

0

13

Snapper 7090316

BOLT, 5/16-18 x 3/4" Short Neck Carriage
(Superseded to 703225)

Note: Was 91097

$3.99

$

In Stock, Qty 20+

0
