7080426 - Snapper Lady Garden 19" Snow Thrower Handles, Auger Control Parts Diagram

Lady Garden 19" Snow Thrower

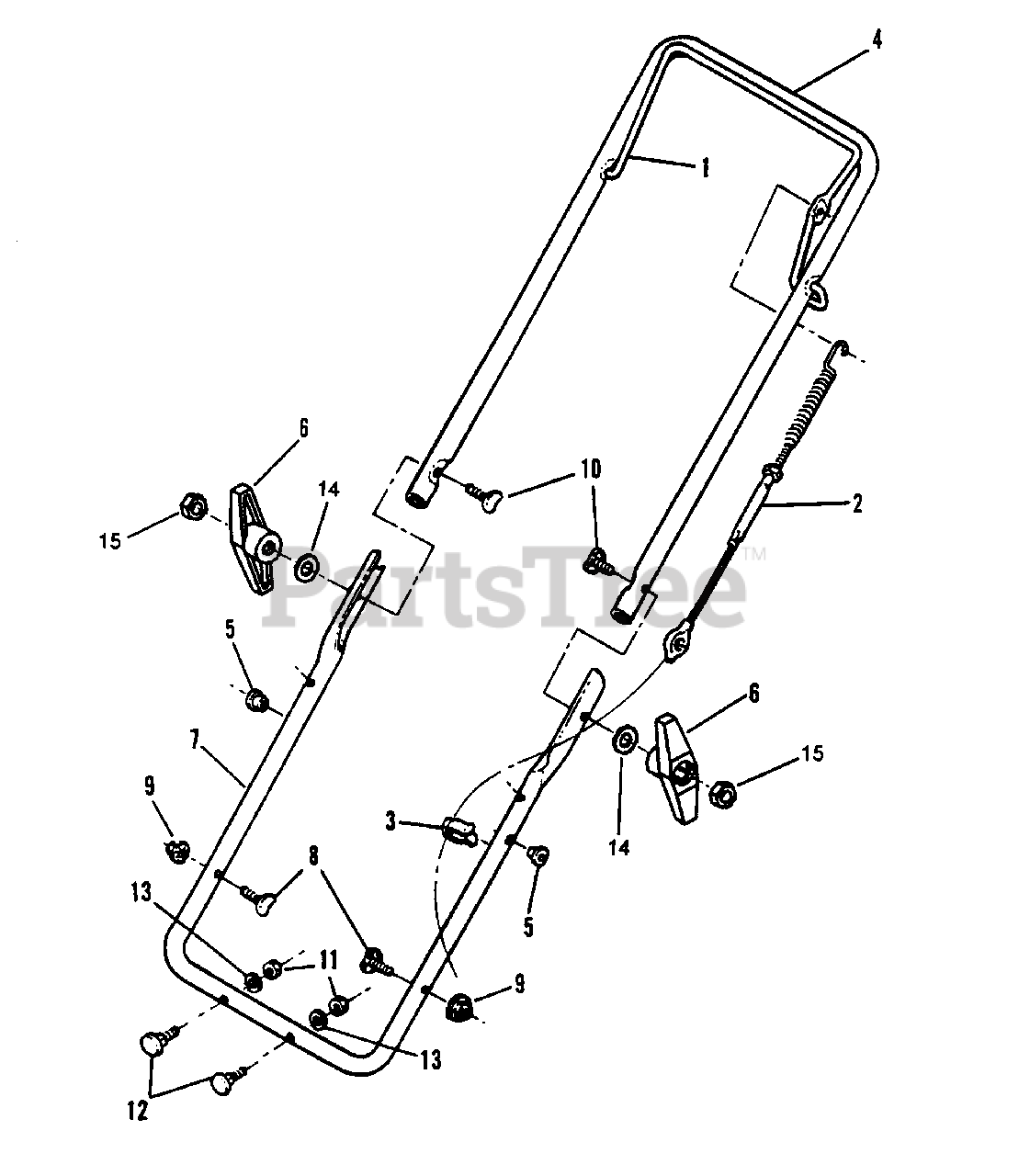

Handles, Auger Control Parts Diagram

  • Title

1

Snapper 7024645

BAIL, Drive Control
(Superseded to 7024645SM)

$56.99

$

In Stock, only 1 left!

0

2

Snapper 7024662

CABLE, Drive Control
(Superseded to 7024662SM)

$15.99

$

In Stock, only 3 left!

0

3

Snapper 7023813

CLIP, Wiring Harness
(Superseded to 7023813SM)

$3.49

$

In Stock, Qty 16

0

4

Snapper 7033496

HANDLE, Upper
(Superseded to 7033496SM)

$94.99

$

Usually ships in 2-12 days

0

5

Snapper 7091182

INSERT, Nylon
(Superseded to 7091182SM)

$3.49

$

In Stock, only 4 left!

0

6

Snapper 7035744

T-KNOB, Plastic
(Superseded to 7105085YP)

Note: Was 16324

$3.99

$

In Stock, Qty 16

0

7

Snapper 7033482

HANDLE, Lower
(Superseded to 7036570SM)

$168.99

$

Usually ships in 2-12 days

0

8

Snapper 7091190

BOLT, 5/16-18 x 1-3/8" Curved Head
(Superseded to 704063)

$5.99

$

Usually ships in 2-12 days

0

9

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 91070

$5.99

$

In Stock, Qty 13

0

10

Snapper 7091013

BOLT, 5/16-18 x 2" Curved Head
(Superseded to 7091013SM)

$5.99

$

In Stock, only 2 left!

0

11

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, only 4 left!

0

12

Snapper 7091612

BOLT, 5/16-18 x 1-1/2 Carriage
(Superseded to 704210)

Note: Was 90582

$4.99

$

In Stock, only 3 left!

0

13

Snapper 7090187

WASHER, 5/16 Split Lock
(Superseded to 703116)

$3.49

$

In Stock, Qty 6

0

14

Snapper 7091076

WASHER, 5/16 Flat
(Superseded to 703350)

$4.49

$

In Stock, only 1 left!

0

15

Snapper 7091511

NUT, 5/16-18 Hex
(Superseded to 7091511SM)

Note: Was 91069

$3.49

$

In Stock, only 4 left!

0
