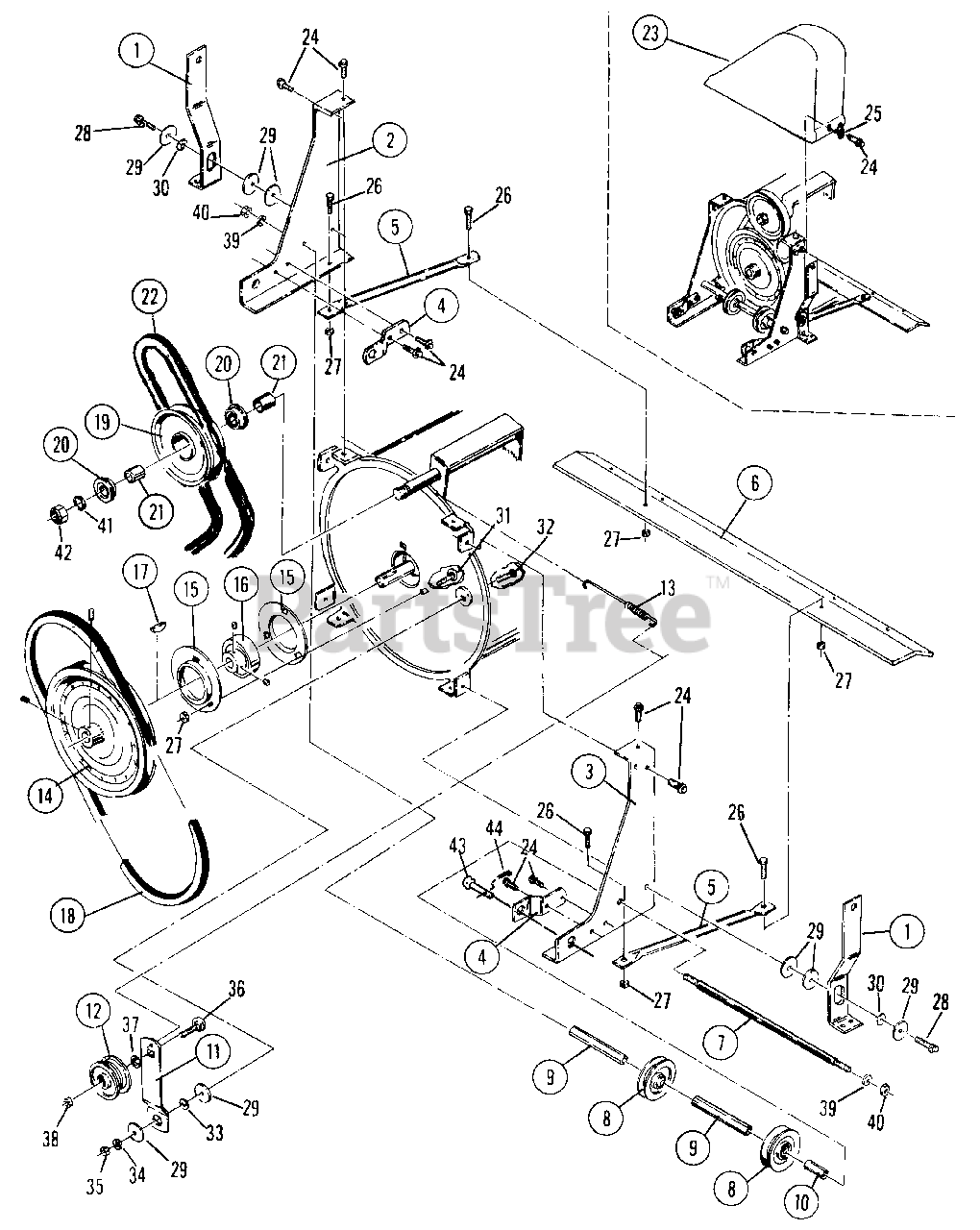

7082099 - Snapper 30" RER Snow Thrower Attachment Blower (Rear View) & Belts Parts Diagram

30" RER Snow Thrower Attachment

Blower (Rear View) & Belts Parts Diagram

  • Title

1

Snapper 38011

LINK, Lift

$

$

Currently unavailable

2

Snapper 36409

BRACKET, Left Side Mounting

$

$

Currently unavailable

3

Snapper 36008

BRACKET, Right Side Mounting

$

$

Currently unavailable

4

Snapper 32195

BRACKET, Lower Mounting

$

$

Currently unavailable

5

Snapper 38008

BRACE

$

$

Currently unavailable

6

Snapper 7038009

BAR, Stiffener

$

$

Not available

7

Snapper 27622

ROD, Idler

$

$

Currently unavailable

8

Snapper 7014208

IDLER, Belt
(Superseded to 7014208YP)

$25.99

$

In Stock, only 3 left!

0

9

Snapper 21854

SPACER, (Long)
(Superseded to 5021854)

$110.99

$

Usually ships in 2-12 days

0

10

Snapper 21855

SPACER, (Short)

$

$

Currently unavailable

11

Snapper 7032192

ARM, Idler

$

$

Currently unavailable

12

Snapper 7013850

IDLER
(Superseded to 7013850YP)

$20.99

$

In Stock, only 2 left!

0

13

Snapper 7014211

SPRING, Idler
(Superseded to 7014211YP)

$7.49

$

In Stock, only 2 left!

0

14

Snapper 7013867

PULLEY, 8.36" O.D.
(Superseded to 7013867YP)

Note: (Includes 2 Setscrews)

$87.99

$

Usually ships in 2-12 days

0

15

Snapper 7013931

HOUSING, Bearing

$

$

Not available

16

Snapper 7013924

BEARING
(Superseded to 7013924YP)

Note: (Includes 2 Setscrews)

$43.99

$

Usually ships in 2-12 days

0

17

Snapper 7013861

KEY, 3/16 x 7/8" Woodruff
(Superseded to 7013861YP)

$3.99

$

In Stock, only 2 left!

0

18

Snapper 7013939

BELT, Blower (short)
(Superseded to 7013939YP)

$26.99

$

In Stock, Qty 7

0

19

Snapper 18516

SHEAVE, Reduction

$

$

Currently unavailable

20

Snapper 7010756

BEARING
(Superseded to 7010756YP)

$11.99

$

In Stock, Qty 20+

0

21

Snapper 7021849

SPACER, Bearing

$

$

Not available

22

Snapper 7014225

BELT, Carrier to Blower (Long)
(Superseded to 7014225YP)

$62.99

$

Usually ships in 2-12 days

0

23

Snapper 7019707

COVER, Belt Guard
(Superseded to 7019707YP)

$31.99

$

Usually ships in 2-12 days

0

24

Snapper 7090361

SCREW, 5/16-18x5/8 Self tap
(Superseded to 703949)

$3.99

$

In Stock, Qty 16

0

25

Snapper 7090188

WASHER, 3/8 SAE (Flat)
(Superseded to 703350)

$4.49

$

In Stock, only 4 left!

0

26

Snapper 7090606

BOLT, 5/16-18x5/8 Flange Lock
(Superseded to 703823)

$3.99

$

Usually ships in 2-12 days

0

27

Snapper 7091601

LOCKNUT, 5/16 Hex Flange
(Superseded to 703409)

Note: Was 12625

$5.99

$

In Stock, Qty 20+

0

28

Snapper 7090369

SCREW, 5/16-18x1 Self tap
(Superseded to 7091841SM)

$3.49

$

Usually ships in 2-12 days

0

29

Snapper 7016314

WASHER, 5/16" x 1-1/4" x 3/32" Flat
(Superseded to 7016314YP)

Note: Was 13848

$5.49

$

Usually ships in 2-12 days

0

30

Snapper 7014206

SPACER

$

$

Not available

31

Snapper 7091508

BOLT, 5/16Cx3/4 S.N. Carriage
(Superseded to 703185)

Note: Was 90001

$3.49

$

In Stock, Qty 20+

0

32

Snapper 7091303

BOLT, 5/16-18x1 S.N. Carriage
(Superseded to 703800)

Note: Was 90383

$3.99

$

In Stock, Qty 19

0

33

Snapper 7013849

SPACER
(Superseded to 703970)

$4.49

$

Usually ships in 2-12 days

0

34

Snapper 7090187

LOCKWASHER, 5/16 Split
(Superseded to 703116)

$3.49

$

In Stock, Qty 7

0

35

Snapper 7091511

NUT, 5/16-18
(Superseded to 7091511SM)

Note: Was 90196

$3.49

$

In Stock, only 4 left!

0

36

Snapper 7090791

BOLT, 3/8-16x1-1/2 S.N. Carriage
(Superseded to 7091945YP)

$4.49

$

In Stock, Qty 10

0

37

Snapper 7090500

WASHER, 7/16 SAE

$2.99

$

In Stock, Qty 7

0

38

Snapper 7090499

LOCKNUT, 3/8-16 Hex
(Superseded to 7090499YP)

$3.49

$

Usually ships in 2-12 days

0

39

Snapper 7090118

LOCKWASHER, 3/8 Split
(Superseded to 703454)

$3.49

$

In Stock, Qty 7

0

40

Snapper 7091302

NUT, 3/8-16
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

In Stock, Qty 10

0

41

Snapper 7010690

WASHER
(Superseded to 7010690YP)

$3.99

$

Usually ships in 2-12 days

0

42

Snapper 7090356

LOCKNUT, 5/8-18 Jam
(Superseded to 7090356YP)

$5.49

$

In Stock, Qty 12

0

43

Snapper 7014243

PIN, Clevis

$

$

Currently unavailable

44

Snapper 7011714

HAIR-PIN
(Superseded to 7011714YP)

$4.49

$

In Stock, only 4 left!

0
