7082597 - Snapper 36" Snow Thrower for Large Frame Tractors Accessory, Snow Thrower - Mounting Assembly & Drive Parts Diagram

36" Snow Thrower for Large Frame Tractors

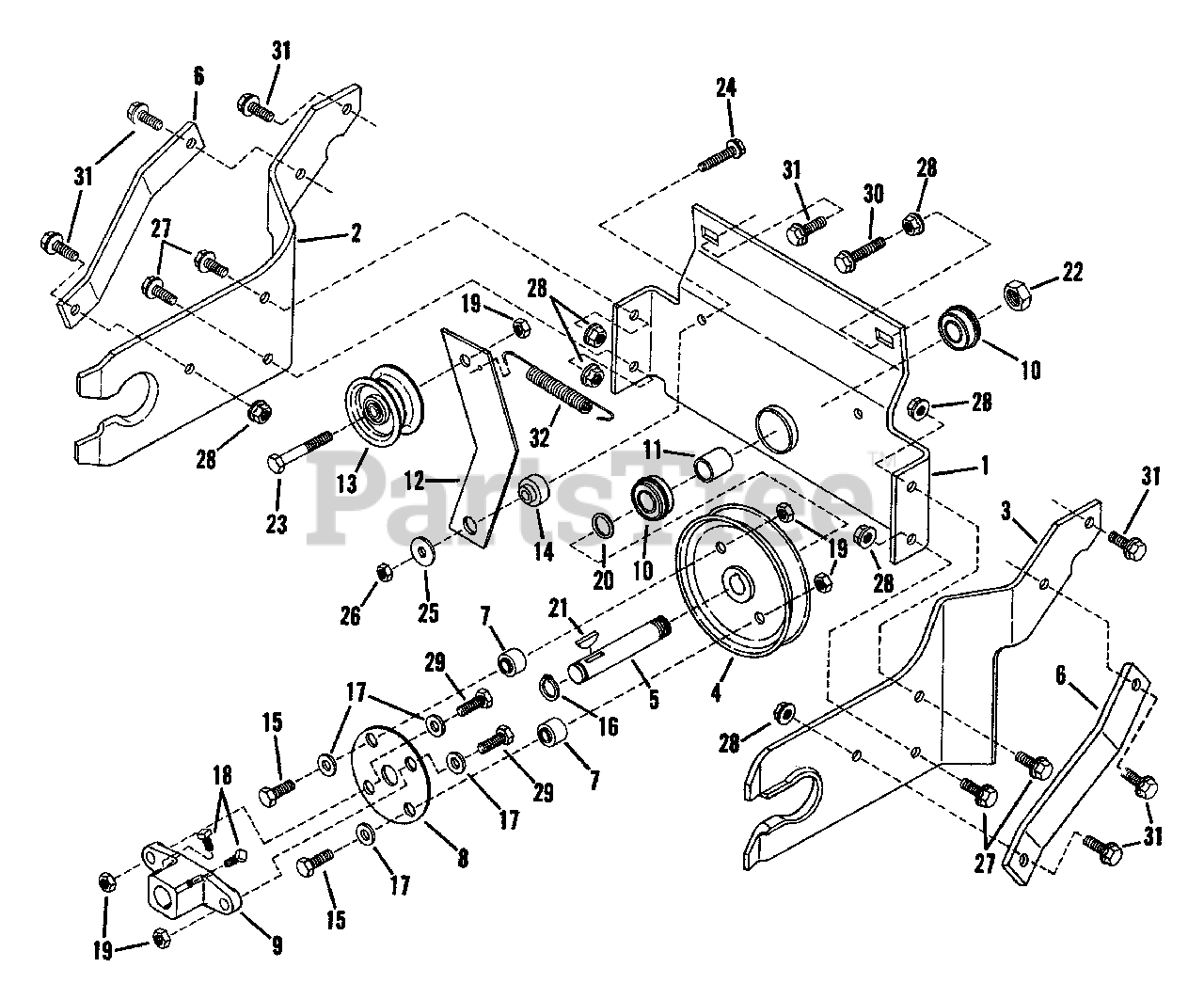

Accessory, Snow Thrower - Mounting Assembly & Drive Parts Diagram

  • Title

1

Snapper 7049739

WELDMENT, Hitch & Bearing
(Superseded to 7049739YP)

$131.99

$

Usually ships in 2-12 days

0

2

Snapper 7049747

HITCH, Right Hand
(Superseded to 7049747YP)

Note: Was 36181

$333.99

$

Usually ships in 2-12 days

0

3

Snapper 7049746

HITCH, Left Hand

Note: Was 36182

$

$

Currently unavailable

4

Snapper 7018837

PULLEY, 5.25" O.D.
(Superseded to 7018837YP)

$62.99

$

Usually ships in 2-12 days

0

5

Snapper 7021986

SHAFT, Pulley
(Superseded to 7021986YP)

$70.99

$

Usually ships in 2-12 days

0

6

Snapper 7038254

STRAP, Gusset

$

$

Not available

7

Snapper 7014803

SPACER, Flex-Coupling
(Superseded to 7014803YP)

$62.99

$

Usually ships in 2-12 days

0

8

Snapper 7014718

DISC, Flex-Coupling

$

$

Not available

9

Snapper 7018626

HUB, Flex-Coupling
(Superseded to 7018626YP)

$432.99

$

Usually ships in 2-12 days

0

10

Snapper 7010756

BEARING, Ball
(Superseded to 7010756YP)

$11.99

$

In Stock, Qty 20+

0

11

Snapper 7021926

SPACER

$

$

Not available

12

Snapper 7032359

ARM, Idler

$

$

Currently unavailable

13

Snapper 7014340

IDLER, 2.50" O.D.
(Superseded to 7014340YP)

$20.99

$

In Stock, only 2 left!

0

14

Snapper 7021984

SPACER, Shoulder

$

$

Not available

15

Snapper 7091328

SCREW, 3/8-16x1-1/4" Hex Head Cap
(Superseded to 703871)

Note: Was 90587

$4.99

$

Usually ships in 2-12 days

0

16

Snapper 7010739

RING, 5/8" External Retaining
(Superseded to 7010739SM)

$3.49

$

In Stock, only 1 left!

0

17

Snapper 7032070

WASHER, 3/8" Flat
(Superseded to 7032070YP)

$4.99

$

In Stock, only 1 left!

0

18

Snapper 7090848

SCREW, 5/16-18x1/2" Square Head Set
(Superseded to 7090848SM)

$10.99

$

Usually ships in 2-12 days

0

19

Snapper 7091585

NUT, 3/8-16 Hex Lock
(Superseded to 703347)

Note: Was 90546

$4.99

$

In Stock, only 4 left!

0

20

Snapper 7010690

WASHER, Shim
(Superseded to 7010690YP)

$3.99

$

Usually ships in 2-12 days

0

21

Snapper 7010008

KEY, (#6) 5/32 x 5/8" Woodruff
(Superseded to 7010008YP)

$4.49

$

Usually ships in 2-12 days

0

22

Snapper 7090356

NUT, 5/8-18 Hex Lock
(Superseded to 7090356YP)

$5.49

$

In Stock, Qty 7

0

23

Snapper 7091497

SCREW, 3/8-16x1-1/2" Hex Head Cap
(Superseded to 703406)

Note: Was 90655

$4.99

$

In Stock, Qty 6

0

24

Snapper 7090627

SCREW, 5/16-18x1-1/4" Hex Head Cap

$

$

Not available

25

Snapper 7014098

WASHER, 5/16 Flat
(Superseded to 7014098SM)

$16.99

$

In Stock, only 1 left!

0

26

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock
(Superseded to 703409)

Note: Was 90585

$5.99

$

In Stock, Qty 20+

0

27

Snapper 7091588

BOLT, 3/8-16x3/4" Hex Flange Lock
(Superseded to 703955)

Note: Was 90612

$4.49

$

In Stock, Qty 8

0

28

Snapper 7091619

NUT, 3/8-16 Hex Flange Lock
(Superseded to 703333)

Note: Was 90613

$4.99

$

In Stock, Qty 5

0

29

Snapper 7090138

SCREW, 3/8-16x1" Hex Head Cap
(Superseded to 7090138YP)

$3.99

$

Usually ships in 2-12 days

0

30

Snapper 7091328

SCREW, 3/8-16x1-1/4" Hex Head Cap
(Superseded to 703871)

Note: Was 90587

$4.99

$

Usually ships in 2-12 days

0

31

Snapper 7090620

BOLT, 3/8-16x7/8" Hex Flange Lock

$

$

Not available

32

Snapper 7014211

SPRING, Idler
(Superseded to 7014211YP)

$7.49

$

In Stock, only 2 left!

0
