7082809 - Snapper 44" Snow Thrower Attachment Lift Components Parts Diagram

44" Snow Thrower Attachment

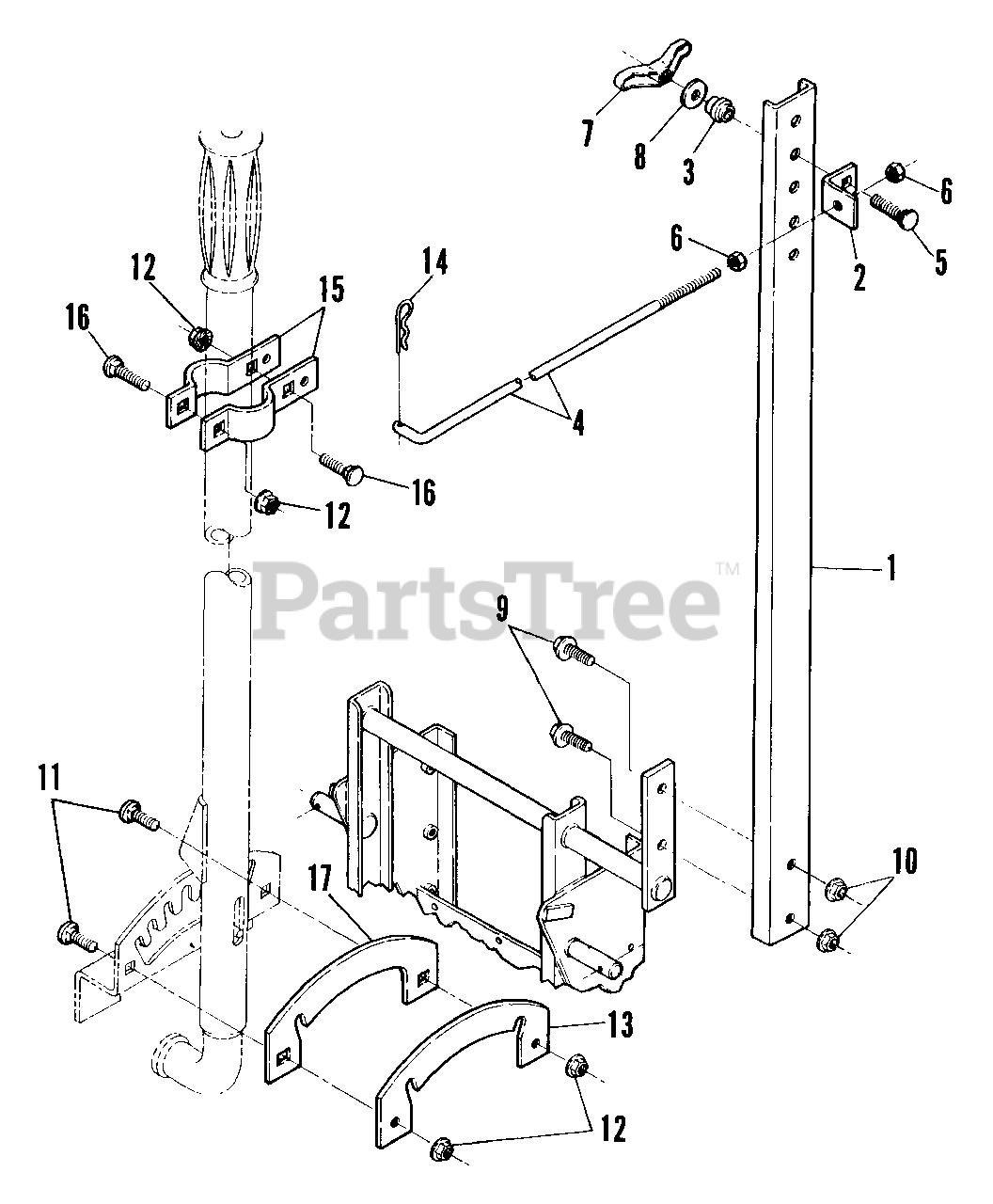

Lift Components Parts Diagram

  • Title

1

Snapper 7036185

ARM, Lift

$

$

Not available

2

Snapper 7032522

SWIVEL, Lift Rod

$

$

Currently unavailable

3

Snapper 7015515

SPACER
(Superseded to 7015515YP)

$16.99

$

Usually ships in 2-12 days

0

4

Snapper 7032519

ROD, Lift

$

$

Not available

5

Snapper 7090790

BOLT, 5/16 - 18 x 1-3/8" Carriage

$

$

Not available

6

Snapper 7091302

NUT, 3/8 - 16 Hex
(Superseded to 7091302SM)

Note: Was 90130

$4.49

$

In Stock, Qty 5

0

7

Snapper 7014468

NUT, 5/16 - 18 Wing
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

8

Snapper 7016314

WASHER, 5/16" x 1-1/4" x 3/32" Flat
(Superseded to 7016314YP)

Note: Was 13848

$5.49

$

Usually ships in 2-12 days

0

9

Snapper 7090622

SCREW, 1/2 - 13 x 1" Hex Head Cap Flange Lock
(Superseded to 7090622YP)

$4.99

$

Usually ships in 2-12 days

0

10

Snapper 7090619

NUT, 1/2 - 13 Hex Flange Lock
(Superseded to 703918)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper 7090803

BOLT, 1/4 - 20 x 5/8" Flat Head Carriage
(Superseded to 703841)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7091584

NUT, 1/4 - 20 Hex Flange Lock
(Superseded to 703233)

Note: Was 90583

$4.49

$

In Stock, only 2 left!

0

13

Snapper 7032914

PLATE, Quadrant
(Superseded to 7032914YP)

$28.99

$

Usually ships in 2-12 days

0

14

Snapper 7091503

HAIR PIN
(Superseded to 7091503SM)

Note: Was 15067

$3.99

$

In Stock, Qty 20+

0

15

Snapper 7032763

TAB
(Superseded to 7032763YP)

$11.99

$

Usually ships in 2-12 days

0

16

Snapper 7091604

BOLT, 1/4 - 20 x 1/2" Short Neck Carriage
(Superseded to 703978)

Note: Was 90005

$3.99

$

In Stock, only 3 left!

0

17

Snapper 7033010

PLATE, Quadrant Float

$

$

Not available
