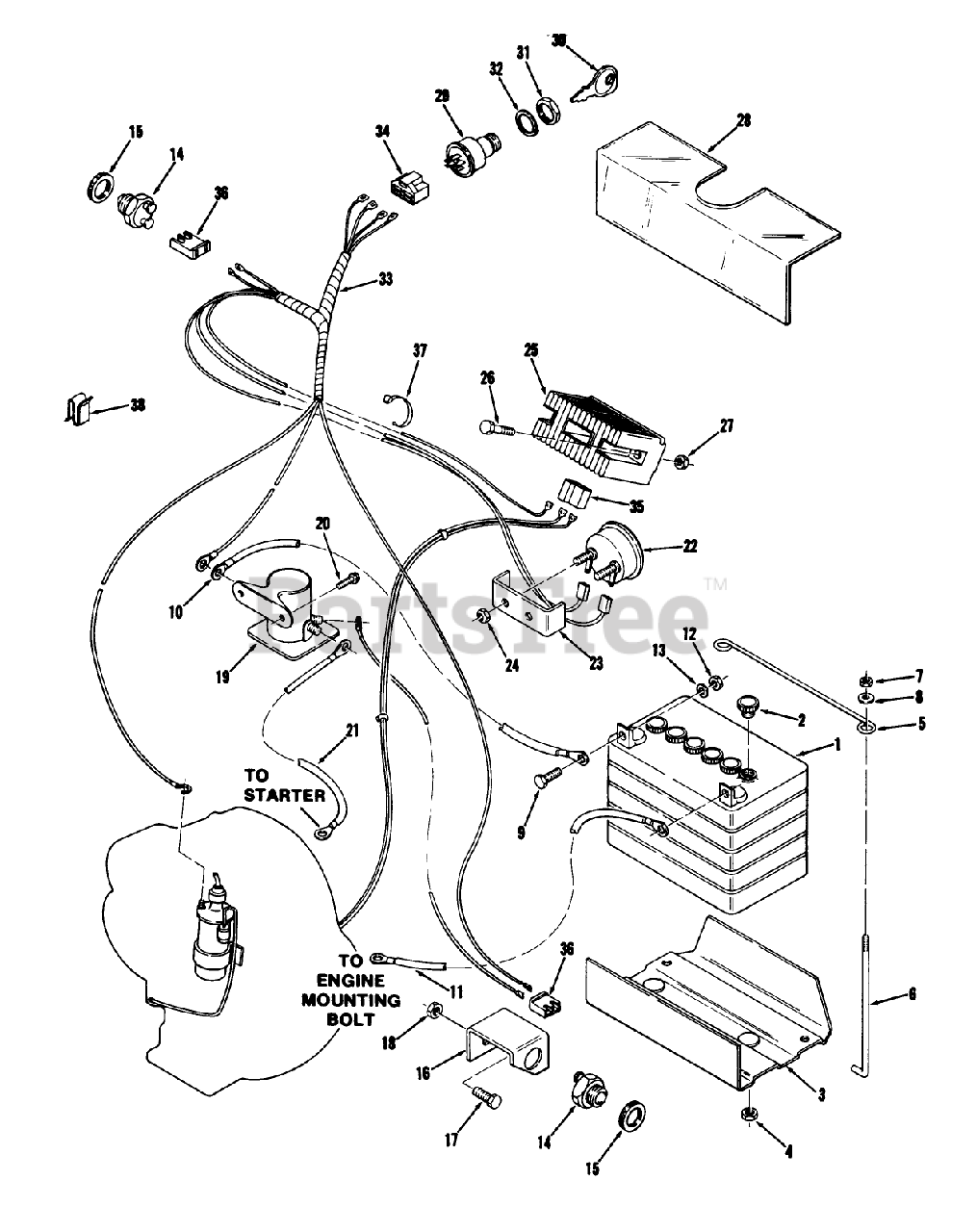

71-10K801 (B-100) - Toro Lawn Tractor (1977) Electrical System Parts Diagram

Lawn Tractor

Electrical System Parts Diagram

  • Title

1

Toro 105842

See Supercession: 104-8162
(Superseded to 104-8162)

$

$

Not available

2

Toro 100438

DISCONTINUED

$

$

Not available

3

Toro 105853

DISCONTINUED

$

$

Not available

4

Toro 915112

See Supercession: 3217-6
(Superseded to 3217-6)

$1.49

$

In Stock, Qty 5

0

5

Toro 105504

ROD-HOLD DOWN

$25.99

$

In Stock, only 4 left!

0

6

Toro 8107

See Supercession: 109547
(Superseded to 109547)

$10.99

$

In Stock, only 2 left!

0

7

Toro 915111

See Supercession: 3217-5
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 6

0

8

Toro 920007

See Supercession: 3256-22
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 15

0

9

Toro 908003

See Supercession: 321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

10

Toro 8555

Wire Assembly

$

$

Currently unavailable

11

Toro 8655

See Supercession: 111078
(Superseded to 111078)

$28.99

$

Usually ships in 3-6 days

0

12

Toro 915111

See Supercession: 3217-5
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 6

0

13

Toro 920007

See Supercession: 3256-22
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 15

0

14

Toro 105877

See Supercession: 38-0430
(Superseded to 38-0430)

$62.99

$

Usually ships in 3-6 days

0

15

Toro 102277

NUT-SPECIAL 9/16-18

$

$

Not available

16

Toro 101827

DISCONTINUED

$

$

Not available

17

Toro 908034

See Supercession: 323-6
(Superseded to 323-6)

$2.99

$

In Stock, Qty 20+

0

18

Toro 915113

See Supercession: 32153-2
(Superseded to 32153-2)

$

$

Not available

19

Toro 8658

See Supercession: 108544
(Superseded to 108544)

$144.99

$

Usually ships in 3-6 days

0

20

Toro 960151

See Supercession: 3234-13
(Superseded to 3234-13)

$1.49

$

In Stock, only 1 left!

0

21

Toro 8655

See Supercession: 111078
(Superseded to 111078)

$28.99

$

Usually ships in 3-6 days

0

22

Toro 102046

DISCONTINUED

$

$

Not available

23

Toro 102047

DISCONTINUED
(Superseded to 109604)

$

$

Not available

24

Toro 5924

HEX NUT 10-32 E.S. + + USE 3296-21 + +

$

$

Not available

25

Toro 101450

REGULATOR-RECTIFIER

$357.99

$

Usually ships in 3-6 days

0

26

Toro 908003

See Supercession: 321-4
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

27

Toro 915111

See Supercession: 3217-5
(Superseded to 3217-5)

$0.99

$

In Stock, Qty 6

0

28

Toro 101446

CONTROL PROTECTOR

$

$

Not available

29

Toro 103990

SWITCH-IGNITION

$29.99

$

In Stock, only 3 left!

0

30

Toro 7262

See Supercession: 62-7770
(Superseded to 62-7770)

$5.49

$

In Stock, Qty 14

0

31

Toro 101884

NUT

$7.99

$

In Stock, only 1 left!

0

32

Toro 920160

See Supercession: 9201604
(Superseded to 9201604)

$0.99

$

In Stock, only 2 left!

0

33

Toro 106051

DISCONTINUED

$

$

Not available

34

Toro 105302

See Supercession: 32160-014
(Superseded to 32160-014)

$6.49

$

In Stock, Qty 15

0

35

Toro 101476

DISCONTINUED

$

$

Not available

36

Toro 106024

Connector Housing Pedal Switch

$

$

Currently unavailable

37

Toro 100571

DISCONTINUED

$

$

Not available

38

Toro 3023

DISCONTINUED

$

$

Not available

1

Toro 104962

See Supercession: 105-1692
(Superseded to 105-1692)

$

$

Not available

37

Toro 518017

DISCONTINUED

$

$

Not available
