71-12KS02 (C-120) - Toro Lawn Tractor (1977) HYDROSTATIC TRANSMISSION Parts Diagram

Lawn Tractor

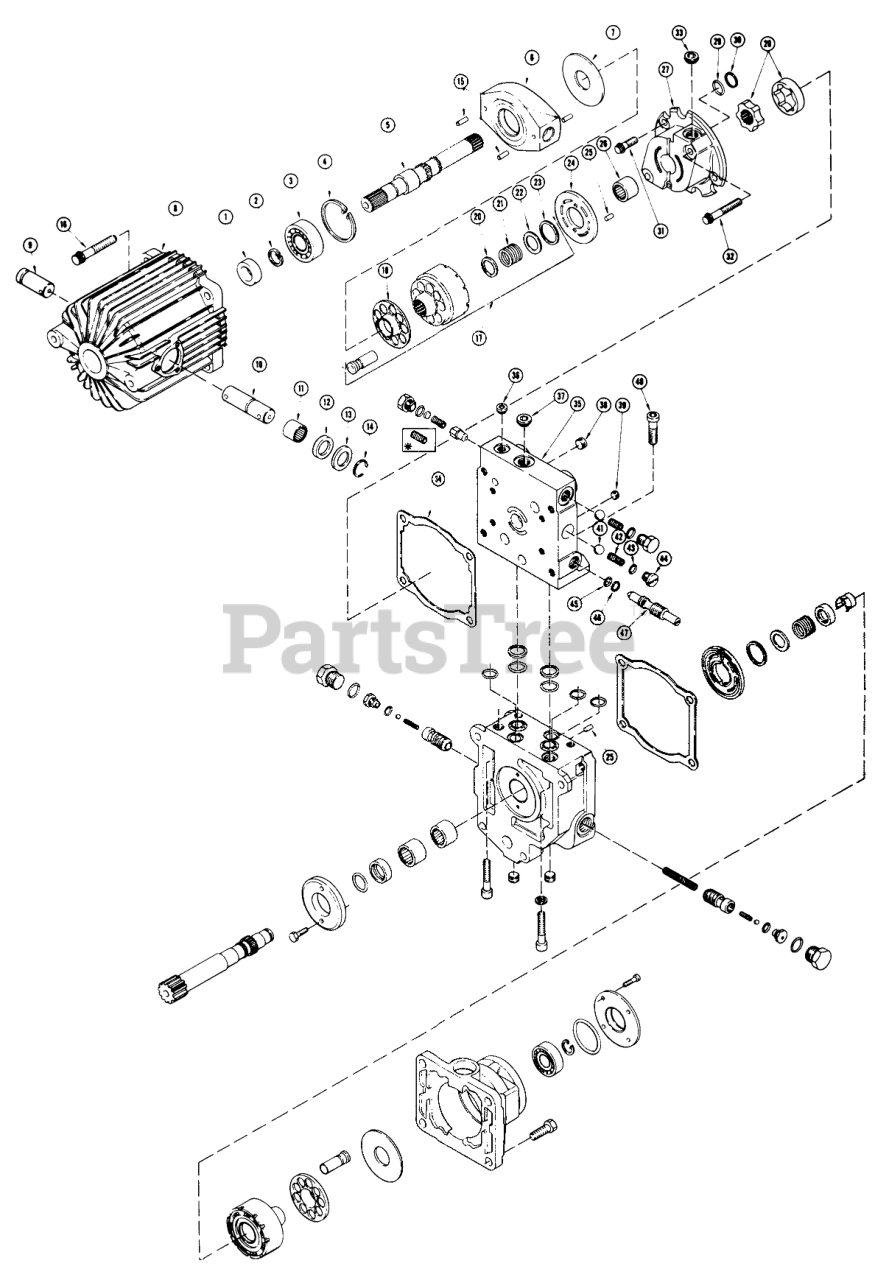

HYDROSTATIC TRANSMISSION Parts Diagram

  • Title

1

Toro 7877

SEAL

$

$

Not available

2

Toro 200229

Snap Ring

$

$

Not available

3

Toro 922214

Ball Bearing

$

$

Currently unavailable

4

Toro 200215

RING

$

$

Not available

5

Toro 200213

Pump Shaft

$

$

Not available

6

Toro 200217

Variable Swash Plate

$

$

Not available

7

Toro 200188

Thrust Plate

$

$

Not available

8

Toro 200216

Pump Housing

$

$

Not available

9

Toro 200236

Stub Trunnion Shaft

$

$

Not available

10

Toro 200235

Trunnion Shaft

$

$

Not available

11

Toro 200237

Needle Bearing

$

$

Not available

12

Toro 103461

SEAL
(Superseded to 25-3210)

$26.99

$

Usually ships in 3-6 days

0

13

Toro 103462

WASHER-LAMBERT

$

$

Not available

14

Toro 103463

RING-LAMBERT

$

$

Not available

15

Toro 200234

Spirol Pin

$

$

Not available

16

Toro 200239

Cap Screw

$

$

Not available

17

Toro 200219

Cylinder Block Kit Inc 18-22
(Superseded to 48-1800)

$2818.99

$

Usually ships in 3-6 days

0

18

Toro 200212

RETAINER-SUN 3100194

$

$

Not available

20

Toro 200243

Spacer

$

$

Not available

21

Toro 200244

Spring

$

$

Not available

22

Toro 200245

Front Washer

$

$

Not available

23

Toro 200208

RING-SUN9006250-0112

$

$

Not available

24

Toro 200220

PLATE-VALVE

$722.99

$

Usually ships in 3-6 days

0

25

Toro 200198

Locating Pin

$

$

Not available

26

Toro 200222

Needle Bearing

$

$

Not available

27

Toro 200224

Charge Pump Housing

$

$

Not available

28

Toro 200225

Assy-Gerotor

$

$

Not available

29

Toro 971018

O RING

$9.49

$

In Stock, only 4 left!

0

30

Toro 103184

RING BACKUP

$10.99

$

Usually ships in 3-6 days

0

31

Toro 200231

Cap Screw Short

$

$

Not available

32

Toro 200230

Cap Screw Long

$

$

Not available

33

Toro 200226

Socket Head Plug

$

$

Not available

34

Toro 200223

Gasket-Pump

$

$

Not available

35

Toro 200238

End Cap-Pump

$

$

Not available

36

Toro 200241

Socket Head Plug

$

$

Not available

37

Toro 200226

Socket Head Plug

$

$

Not available

38

Toro 200227

Pipe Plug

$

$

Not available

39

Toro 200199

Pipe Plug

$

$

Not available

40

Toro 200184

Cap Screw

$

$

Not available

41

Toro 103216

Ball
(Superseded to 25-2490)

$16.99

$

Usually ships in 3-6 days

0

42

Toro 103457

Spring
(Superseded to 25-2640)

$4.99

$

Usually ships in 3-6 days

0

43

Toro 973310

O RING

$6.99

$

In Stock, only 1 left!

0

44

Toro 103458

PLUG
(Superseded to 25-2650)

$101.99

$

Usually ships in 3-6 days

0

45

Toro 971012

O-RING

$

$

Not available

46

Toro 103459

Back Up Ring
(Superseded to 25-2630)

$4.49

$

In Stock, only 3 left!

0

47

Toro 103460

VALVE

$

$

Not available
