71-20KS01 (D-200) - Toro Lawn Tractor (1977) BRAKE AND MOTION CONTROL LINKAGE Parts Diagram

Lawn Tractor

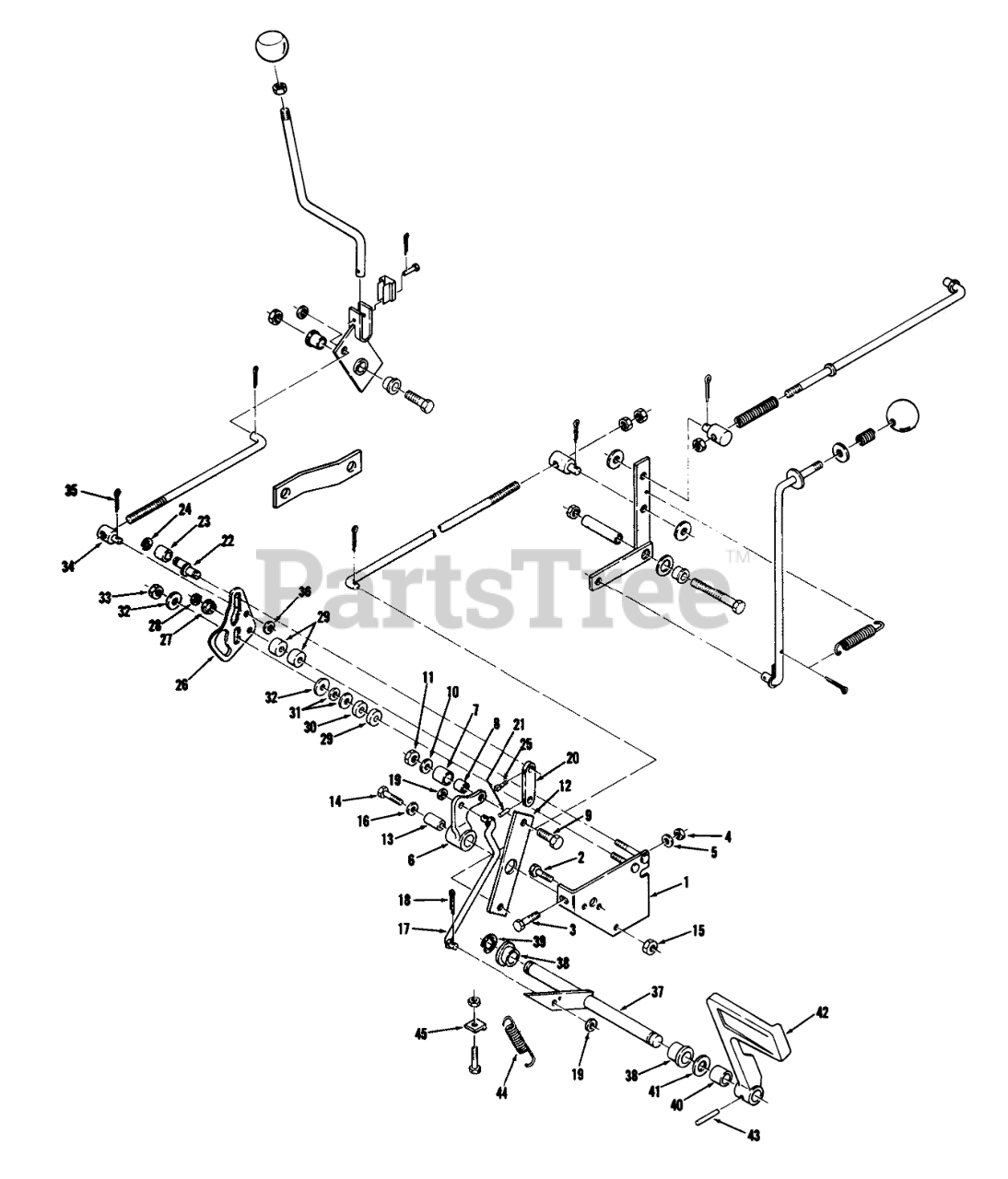

BRAKE AND MOTION CONTROL LINKAGE Parts Diagram

  • Title

1

Toro 104158

Assy-Plate

$

$

Not available

2

Toro 960152

Screw
(Superseded to 3234-33)

$0.99

$

In Stock, Qty 10

0

3

Toro 908018

HHCS
(Superseded to 322-4)

$0.99

$

In Stock, Qty 20+

0

4

Toro 915662

Nut
(Superseded to 3296-29)

$2.49

$

In Stock, Qty 20+

0

5

Toro 920008

WASHER 5/16 SAE

$0.99

$

In Stock, Qty 10

0

6

Toro 104913

Lever-Neutral Return

$

$

Not available

7

Toro 100656

BEARING-CAM RETURN

$5.99

$

In Stock, Qty 5

0

8

Toro 100357

SPACER

$

$

Not available

9

Toro 908036

BOLT
(Superseded to 323-8)

$1.49

$

In Stock, Qty 20+

0

10

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

11

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

12

Toro 104910

Bar

$

$

Not available

13

Toro 104907

Spacer

$

$

Not available

14

Toro 908040

Bolt
(Superseded to 323-12)

$2.49

$

In Stock, Qty 20+

0

15

Toro 915663

NUT
(Superseded to 3296-39)

$2.99

$

In Stock, Qty 20+

0

16

Toro 920211

WASHER

$

$

Not available

17

Toro 104908

ROD ASSY

$

$

Not available

18

Toro 932008

Cotter Pin
(Superseded to 3-2726)

$

$

Not available

19

Toro 920009

Washer
(Superseded to 3256-24)

$0.99

$

In Stock, Qty 20+

0

20

Toro 104163

Arm-Speed Control

$

$

Not available

21

Toro 933269

PIN-ROLL 1/4 X 1 1/4

$1.79

$

In Stock, only 2 left!

0

22

Toro 104164

ECCENTRIC-CAM FOLLOW

$174.99

$

Usually ships in 3-6 days

0

23

Toro 100304

Spacer

$6.49

$

In Stock, only 1 left!

0

24

Toro 100307

E RING

$

$

Not available

25

Toro 909532

SET SCREW

$

$

Not available

26

Toro 104165

Cam-Speed Control

$

$

Not available

27

Toro 100309

CAM-SPACER

$9.99

$

In Stock, only 1 left!

0

28

Toro 915113

Nut
(Superseded to 32153-2)

$0.99

$

In Stock, Qty 20+

0

29

Toro 102427

Spacer

$

$

Not available

30

Toro 100687

SPACER

$

$

Not available

31

Toro 100365

WASHER-SPRING DISC

$

$

Not available

32

Toro 100305

FRICTION WASHER

$5.99

$

In Stock, only 2 left!

0

33

Toro 915833

Nut Conlok 3/8-16
(Superseded to 108881)

$6.49

$

In Stock, Qty 10

0

34

Toro 104456

Stud

$

$

Not available

35

Toro 932017

See Supercession: 9320174
(Superseded to 9320174)

$0.99

$

Usually ships in 3-6 days

0

36

Toro 920011

Washer
(Superseded to 3256-26)

$0.99

$

In Stock, Qty 20+

0

37

Toro 101089

Assy-Shaft

$

$

Not available

38

Toro 101442

BEARING

$

$

Not available

39

Toro 5618

E-RING

$0.99

$

In Stock, Qty 15

0

40

Toro 979120

Spacer
(Superseded to 9791204)

$

$

Not available

41

Toro 1278

WASHER

$2.99

$

In Stock, Qty 20+

0

42

Toro 102004

Brake Pedal

$

$

Not available

43

Toro 933216

PIN-ROLL, SPIROL

$2.99

$

In Stock, only 1 left!

0

44

Toro 9170

SPRING-EXTENSION

$

$

Not available

45

Toro 2534

CLIP - SPRING

$4.99

$

In Stock, only 2 left!

0
