710 (1690062) - AGCO Garden Tractor, 10hp 7010-7016-7016H ENGINE & DRIVE SHAFT Parts Diagram

Garden Tractor, 10hp

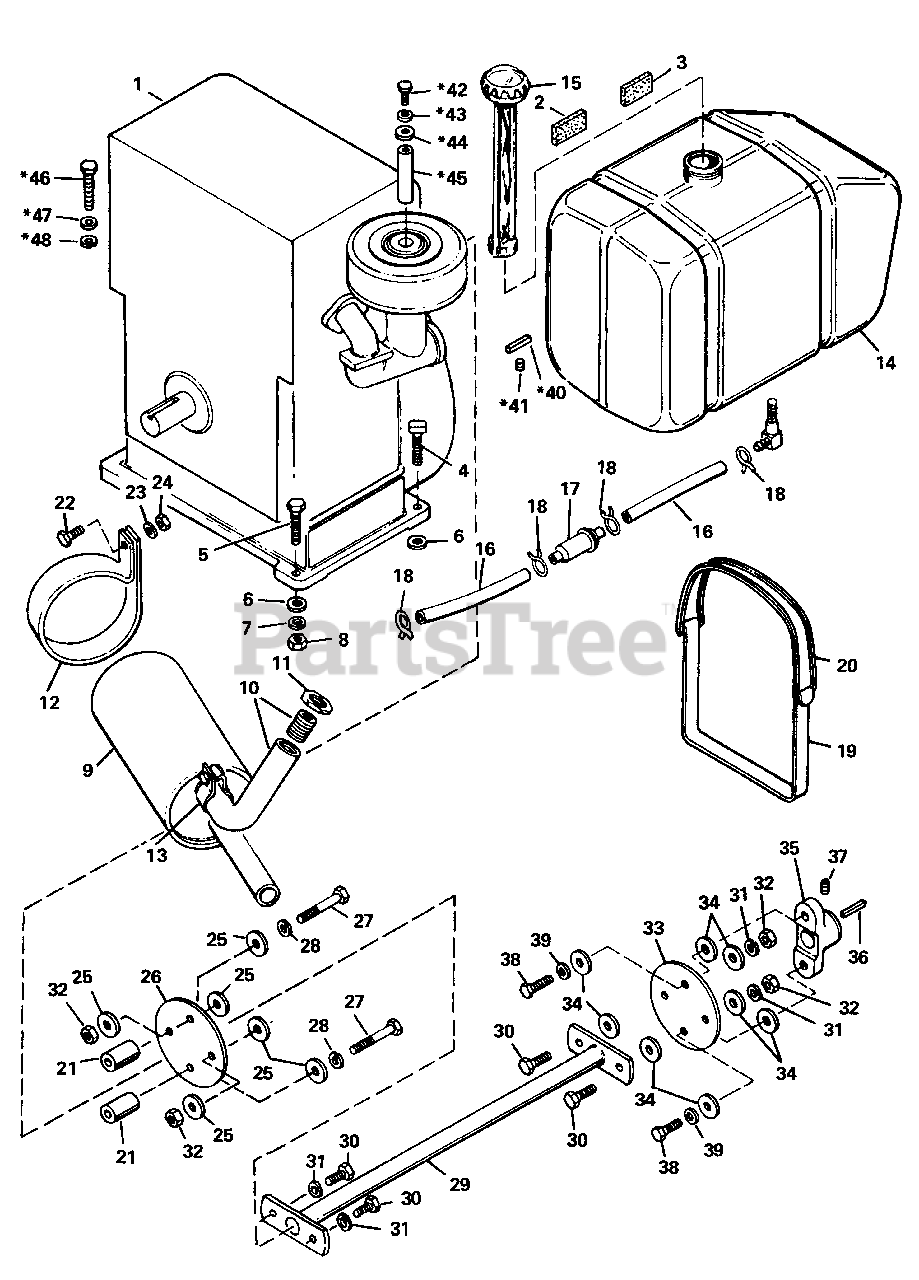

7010-7016-7016H ENGINE & DRIVE SHAFT Parts Diagram

  • Title

1

ENGINE, Briggs & Stratton, Model 326431, Type 0127-01

$

$

Not available

2

Simplicity 2173335

PAD, Fuel Tank

$

$

Not available

3

Simplicity 106582

GASKET, Felt

$

$

Not available

4

Simplicity 172455

SCREW, Rec. Hd., 3/8-16 x 1-5/16" lg.

$

$

Not available

5

Simplicity 2819360

CAPSCREW, Hex, 3/8-16, x 1-1/2" lg.

$

$

Not available

6

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

7

Simplicity 917965

LOCKWASHER, 3/8

$

$

Not available

8

Simplicity 2816950SM

NUT, full hex, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

9

Simplicity 2170456

MUFFLER, Exhaust

$

$

Not available

10

Simplicity 2172195

ELBOW & NIPPLE ASSY.

$

$

Not available

11

Simplicity 2154378SM

LOCKNUT

$6.99

$

Usually ships in 2-12 days

0

12

Simplicity 2171880SM

STRAP, Muffler

$32.99

$

Usually ships in 2-12 days

0

13

Simplicity 2172061SM

CLAMP, Muffler
(Superseded to 2831893SM)

$5.49

$

Usually ships in 2-12 days

0

14

Simplicity 2171115

TANK, Fuel

$

$

Not available

15

Simplicity 2171252SM

CAP, Fuel tank

$31.99

$

In Stock, Qty 14

0

16

Simplicity 2173204

HOSE, Fuel

$

$

Not available

17

Simplicity 2173206SM

FILTER, Fuel
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

18

Simplicity 2154372

CLAMP, Fuel

$

$

Not available

19

Simplicity 2171330SM

STRAP, Tank

$43.99

$

In Stock, only 1 left!

0

20

Simplicity 2172744SM

STRAP, Fuel tank

$18.99

$

In Stock, only 3 left!

0

21

Snapper 1729273SM

BEARING, Pivot black

$76.99

$

In Stock, only 1 left!

0

22

Simplicity 2819318

CAPSCREW, Hex, 5/16 18 x 5/8" lg.

$

$

Not available

23

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

24

Simplicity 1917372SM

NUT, full hex, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 20+

0

25

Simplicity 2157424SM

WASHER, Special

$7.49

$

In Stock, Qty 5

0

26

Simplicity 2173026SM

COUPLING

$39.99

$

In Stock, only 1 left!

0

27

Simplicity 2822130

CAPSCREW, Hex, 3/8-16 x 2-1/4" lg.

$

$

Not available

28

Simplicity 1916965SM

LOCK WASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

29

Simplicity 2172328SM

SHAFT ASSY., Drive
(Superseded to 2172328ASM)

$

$

Not available

30

Simplicity 2172677

CAPSCREW, Hex, 3/8-16

$

$

Not available

31

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

32

Simplicity 2816950SM

NUT, Hex, full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, Qty 11

0

33

Simplicity 2173026SM

COUPLING

$39.99

$

In Stock, only 1 left!

0

34

Simplicity 2157424SM

WASHER, Special

$7.49

$

In Stock, Qty 5

0

35

Simplicity 2172264SM

FLANGE, Drive shaft

$63.99

$

Usually ships in 2-12 days

0

36

Simplicity 2157427SM

SHAFT, Key Drive

$5.49

$

In Stock, only 1 left!

0

37

Simplicity 2824624

SETSCREW, 3/8-24 x 3/8" lg.

$

$

Not available

38

Simplicity 2172677

CAPSCREW, Hex,3/8-16 x 1" lg.

$

$

Not available

39

Simplicity 1916965SM

LOCK WASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 11

0

40

Simplicity 2171241SM

KEY, Hi-Pro

Note: Indicates 10 HP Tractor

$5.99

$

Usually ships in 2-12 days

0

41

Simplicity 2830544

SETSCREW, 5/16-18 X 3/8" lg.

Note: Indicates 10 HP Tractor

$

$

Not available

42

Simplicity 2821959

CAPSCREW, Hex,1/4-20 x 5/8" lg.

Note: Indicates 10 HP Tractor

$

$

Not available

43

Simplicity 2816964SM

LOCKWASHER, 1/4
(Superseded to 704133)

Note: Indicates 10 HP Tractor

$3.99

$

In Stock, only 1 left!

0

44

Simplicity 2817377

WASHER, Plain, 1/4"

Note: Indicates 10 HP Tractor

$

$

Not available

45

Simplicity 157126

SPACER

Note: Indicates 10 HP Tractor

$

$

Not available

46

Simplicity 912978

CAPSCREW, Hex, 5/16-18 x 2" lg.

Note: Indicates 10 HP Tractor

$

$

Not available

47

Simplicity 2817642

WASHER, Plain, 5/16

Note: Indicates 10 HP Tractor

$

$

Not available

48

Simplicity 1916965SM

LOCKWASHER, 1/2
(Superseded to 703454)

Note: Indicates 10 HP Tractor

$3.49

$

In Stock, Qty 11

0
