710 (1690062) - AGCO Garden Tractor, 10hp 7010-7016-7016H REAR WHEELS AND AXLE Parts Diagram

Garden Tractor, 10hp

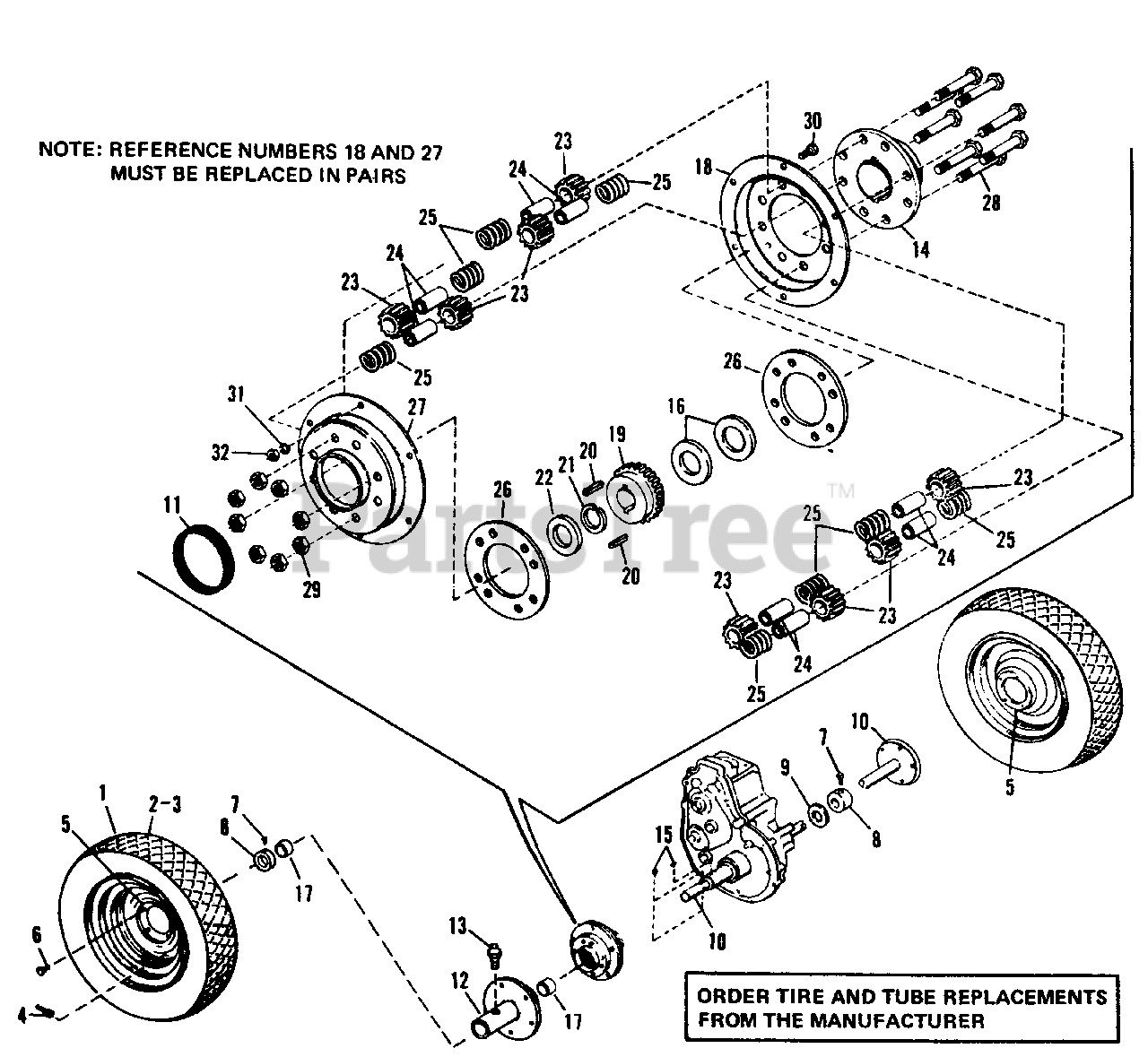

7010-7016-7016H REAR WHEELS AND AXLE Parts Diagram

  • Title

1

Simplicity 173432

WHEEL & TIRE ASSEMBLY

$

$

Not available

2

Simplicity 2157637

TIRE

$

$

Not available

3

Simplicity 2157638SM

TUBE

$86.99

$

In Stock, only 2 left!

0

4

Simplicity 2172353SM

STEM, Valve & Cap
(Superseded to 024373MA)

$

$

Not available

5

Simplicity 2173430

WHEEL, Drive

$

$

Not available

6

Simplicity 1729280SM

BOLT, Hub

$6.49

$

In Stock, Qty 7

0

7

Simplicity 2828709

SCREW, Set, 5/16"-18 x 3/8" lg.

$

$

Not available

8

Simplicity 2154065SM

COLLAR, Set

$113.99

$

Usually ships in 2-12 days

0

9

Simplicity 2105050

WASHER

$

$

Not available

10

Simplicity 2177900ASM

REAR AXLE ASSEMBLY

$158.99

$

Usually ships in 2-12 days

0

11

Simplicity 2121190SM

SEAL, Diff. Cover

$

$

Not available

12

Simplicity 2176945SM

HUB ASSEMBLY

$291.99

$

Usually ships in 2-12 days

0

13

Simplicity 2727004

FITTING, Grease

$

$

Not available

14

Simplicity 2164217SM

CARRIER, Diff.

$125.99

$

Usually ships in 2-12 days

0

15

Simplicity 2157120SM

KEY

$6.99

$

In Stock, only 3 left!

0

16

Simplicity 2171515

WASHER, Axle

$

$

Not available

17

Simplicity 2153068SM

BEARING

$31.99

$

Usually ships in 2-12 days

0

18

Simplicity 2171853SM

COVER, Diff.

$

$

Not available

19

Simplicity 2177041SM

GEAR, Diff.

$125.99

$

In Stock, only 1 left!

0

20

Simplicity 2830671SM

KEY

$8.49

$

In Stock, only 1 left!

0

21

Simplicity 2154291SM

RING, Retaining

$6.99

$

Usually ships in 2-12 days

0

22

Simplicity 2154277

WASHER, Axle

$

$

Not available

23

Simplicity 2158579SM

PINION, Diff.

$

$

Not available

24

Simplicity 2121083SM

SPINDLE, Pinion, Diff.

$13.99

$

In Stock, only 1 left!

0

25

Simplicity 2162085SM

SPRING

$6.99

$

In Stock, Qty 9

0

26

Simplicity 2171517SM

RING, Spacer

$9.49

$

Usually ships in 2-12 days

0

27

Simplicity 2103189SM

COVER, Diff.

$

$

Not available

28

Simplicity 2821972

CAPSCREW, Hex, 3/8"-18 x 2-1/2" lg.

$

$

Not available

29

Simplicity 2823428

NUT, Hex, Full, Lock, 3/8"-16

$

$

Not available

30

Simplicity 2807727

CAPSCREW, Hex, 1/4"-20 x 5/8" lg.

$

$

Not available

31

Simplicity 2816964SM

LOCKWASHER, 1/4"
(Superseded to 704133)

$3.99

$

In Stock, only 2 left!

0

32

Simplicity 2816622SM

NUT, Hex, Full, 1/4"-20
(Superseded to 703127)

$3.49

$

In Stock, only 4 left!

0
