710 (1690062) - AGCO Garden Tractor, 10hp 7010-7016 TRANSMISSION Parts Diagram

Garden Tractor, 10hp

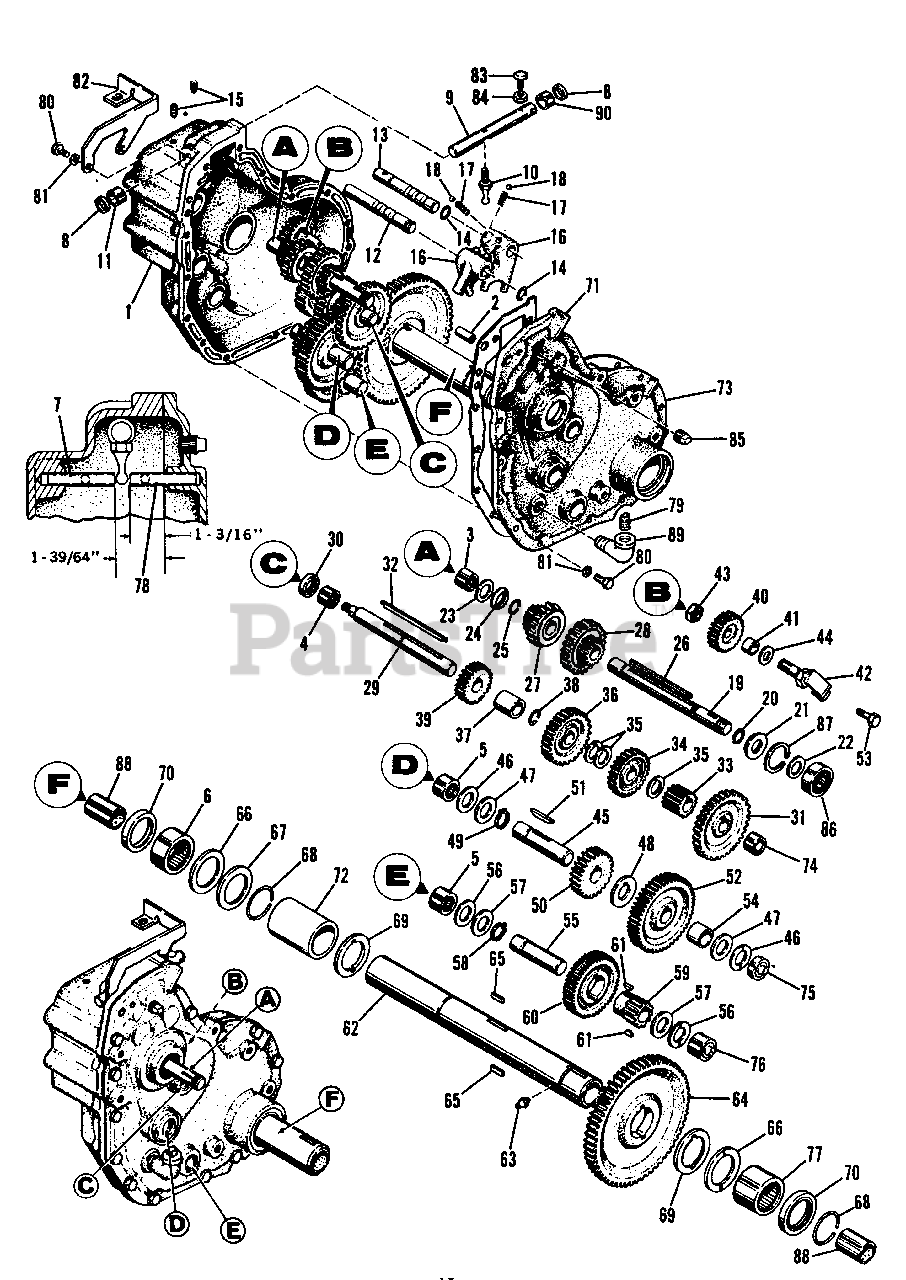

7010-7016 TRANSMISSION Parts Diagram

  • Title

1

Simplicity 157516

GEAR CASE SUB ASSEMBLY W/BEARINGS (Includes 1 Thru 7)

$

$

Not available

2

Simplicity 2818113

PIN, Roll

$

$

Not available

3

Simplicity 2154257SM

BEARING, Needle

$27.99

$

In Stock, only 1 left!

0

4

Simplicity 2154258SM

BEARING, Needle

$26.99

$

In Stock, only 2 left!

0

5

Simplicity 154259

BEARING, Needle

$

$

Not available

6

Simplicity 2157519SM

BEARING, Needle

$

$

Not available

7

Simplicity 154538

ROLL PIN SUB ASSEMBLY

$

$

Not available

8

Simplicity 2157619SM

SEAL, Oil

$20.99

$

In Stock, only 3 left!

0

9

Simplicity 164250

ROD, Shift

$

$

Not available

10

Simplicity 2172779SM

STEM, Shift

$

$

Not available

11

Simplicity 2121084SM

SPACER

$12.99

$

Usually ships in 2-12 days

0

12

Simplicity 154067

SHAFT, Shifter

$

$

Not available

13

Simplicity 154068

SHAFT, Shifter, Hi-Lo

$

$

Not available

14

Simplicity 1729260SM

RING, Retaining

$5.99

$

Usually ships in 2-12 days

0

15

Simplicity 917231

SCREW, Set, 5/16"-18 x 1/2" lg.

$

$

Not available

16

Simplicity 2154069SM

FORK, Shifter

$227.99

$

Usually ships in 2-12 days

0

17

Simplicity 2154323SM

SPRING

$30.99

$

Usually ships in 2-12 days

0

18

Simplicity 2154262

BALL, Shift, Lock

$

$

Not available

19

Simplicity 174338

SHAFT, Pulley

$

$

Not available

20

Simplicity 2118134SM

RING, Retaining

$

$

Not available

21

Simplicity 154462

WASHER

$

$

Not available

22

Simplicity 2108472

WASHER

$

$

Not available

23

Simplicity 2172982SM

WASHER

$37.99

$

Usually ships in 2-12 days

0

24

Simplicity 172981

WASHER

$

$

Not available

25

Simplicity 2154264SM

RING, Retaining

$5.99

$

In Stock, only 2 left!

0

26

Simplicity 2164294SM

KEY

$16.99

$

Usually ships in 2-12 days

0

27

Simplicity 2154072

PINION ASSEMBLY, Rev II

$

$

Not available

28

Simplicity 2154075

PINION ASSEMBLY, I & II

$

$

Not available

29

Simplicity 2157290

SHAFT, 1st Intermediate

$

$

Not available

30

Simplicity 1612093SM

SEAL, Oil

$10.99

$

In Stock, Qty 6

0

31

Simplicity 154078

GEAR, Driven, I

$

$

Not available

32

Simplicity 2154354SM

KEY

$15.99

$

Usually ships in 2-12 days

0

33

Simplicity 154079

PINION, 1st Intermediate

$

$

Not available

34

Simplicity 2154080SM

PINION, Driven, III

$96.99

$

Usually ships in 2-12 days

0

35

Simplicity 1729259SM

WASHER

$5.99

$

In Stock, Qty 11

0

36

Simplicity 154081

GEAR, Driven, II

$

$

Not available

37

Simplicity 154082

SPACER

$

$

Not available

38

Simplicity 2154264SM

RING, Retaining

$5.99

$

In Stock, only 2 left!

0

39

Simplicity 2174228

PINION, Rev-IV

$

$

Not available

40

Simplicity 2154087SM

GEAR, Rev.

$70.99

$

Usually ships in 2-12 days

0

41

Simplicity 154352

SPACER

$

$

Not available

42

Simplicity 154352

PIN ASSEMBLY, Rev. Gear

$

$

Not available

43

Simplicity 2830245

NUT, Hex, Full, Lock, 1/2"-20

$

$

Not available

44

Simplicity 2154325

WASHER

$

$

Not available

45

Simplicity 154086

SHAFT, II Intermediate

$

$

Not available

46

Simplicity 2172979

WASHER

$

$

Not available

47

Simplicity 2172978

WASHER

$

$

Not available

48

Simplicity 2154038SM

WASHER

$5.49

$

Usually ships in 2-12 days

0

49

Simplicity 154266

RING, Retaining

$

$

Not available

50

Simplicity 164062

PINION, II Intermediate

$

$

Not available

51

Simplicity 2154267SM

KEY

$

$

Not available

52

Simplicity 154089

GEAR, II Intermediate

$

$

Not available

53

Simplicity 2817400

CAPSCREW, Hex, 3/8-16 x 1-1/4" lg.

$

$

Not available

54

Simplicity 154090

SPACER

$

$

Not available

55

Simplicity 154091

SHAFT, III Intermediate

$

$

Not available

56

Simplicity 2172979

WASHER

$

$

Not available

57

Simplicity 2172978

WASHER

$

$

Not available

58

Simplicity 154266

RING, Retaining

$

$

Not available

59

Simplicity 2154092SM

PINION, III Intermediate

$

$

Not available

60

Simplicity 164051

GEAR, III Intermediate

$

$

Not available

61

Simplicity 2810224SM

KEY

$3.99

$

Usually ships in 2-12 days

0

62

Simplicity 2164222SM

TUBE & BUSHING ASSEMBLY

$353.99

$

Usually ships in 2-12 days

0

63

Simplicity 2812808SM

FITTING, Lub.

$4.49

$

In Stock, only 2 left!

0

64

Simplicity 154095

GEAR, Drive

$

$

Not available

65

Simplicity 2154096SM

KEY

$6.99

$

In Stock, only 2 left!

0

66

Simplicity 2172977

WASHER

$

$

Not available

67

Simplicity 2154097SM

WASHER

$

$

Not available

68

Simplicity 2154268SM

RING, Snap

$7.49

$

In Stock, only 1 left!

0

69

Simplicity 2154269SM

WASHER

$

$

Not available

70

Simplicity 2154269SM

SEAL

$

$

Not available

71

Simplicity 2164234SM

GASKET, Gear Case

$39.99

$

In Stock, only 3 left!

0

72

Simplicity 154098

SPACER

$

$

Not available

73

Simplicity 164226

COVER ASSEMBLY, Gear Case W/Bearings

$

$

Not available

74

Simplicity 2154257SM

BEARING, Needle

$27.99

$

In Stock, only 1 left!

0

75

Simplicity 2154271SM

BEARING, Needle

$37.99

$

Usually ships in 2-12 days

0

76

Simplicity 154259

BEARING, Needle

$

$

Not available

77

Simplicity 154520

BEARING, Needle

$

$

Not available

78

Simplicity 154537

ROLL PIN ASSEMBLY

$

$

Not available

79

Simplicity 2801653

PLUG, Pipe

$

$

Not available

80

Simplicity 2816431

CAPSCREW, Hex, 5/16"-18 x 1" lg.

$

$

Not available

81

Simplicity 1917356SM

LOCKWASHER, 5/16"
(Superseded to 703116)

$3.49

$

In Stock, Qty 20+

0

82

Simplicity 164251

SUPPORT, Switch

$

$

Not available

83

Simplicity 172241

BOLT, Carriage, 5/16"-18 x 1" lg.

$

$

Not available

84

Simplicity 2820161

NUT, Hex, Jam, 5/16-18

$

$

Not available

85

Simplicity 2801653

PLUG, Pipe

$

$

Not available

86

Simplicity 2108202SM

BEARING, Ball

$11.99

$

In Stock, Qty 20+

0

87

Simplicity 164064

RING, Retaining

$

$

Not available

88

Simplicity 2164224

BUSHING

$

$

Not available

89

Simplicity 2801723

ELBOW, 90ø

$

$

Not available
