710 (1690218) - AGCO 42" Garden Tractor, 10hp Kohler Hood & Lights Group (7010 & 7016) Parts Diagram

42" Garden Tractor, 10hp Kohler

Hood & Lights Group (7010 & 7016) Parts Diagram

  • Title

1

Simplicity 1656400

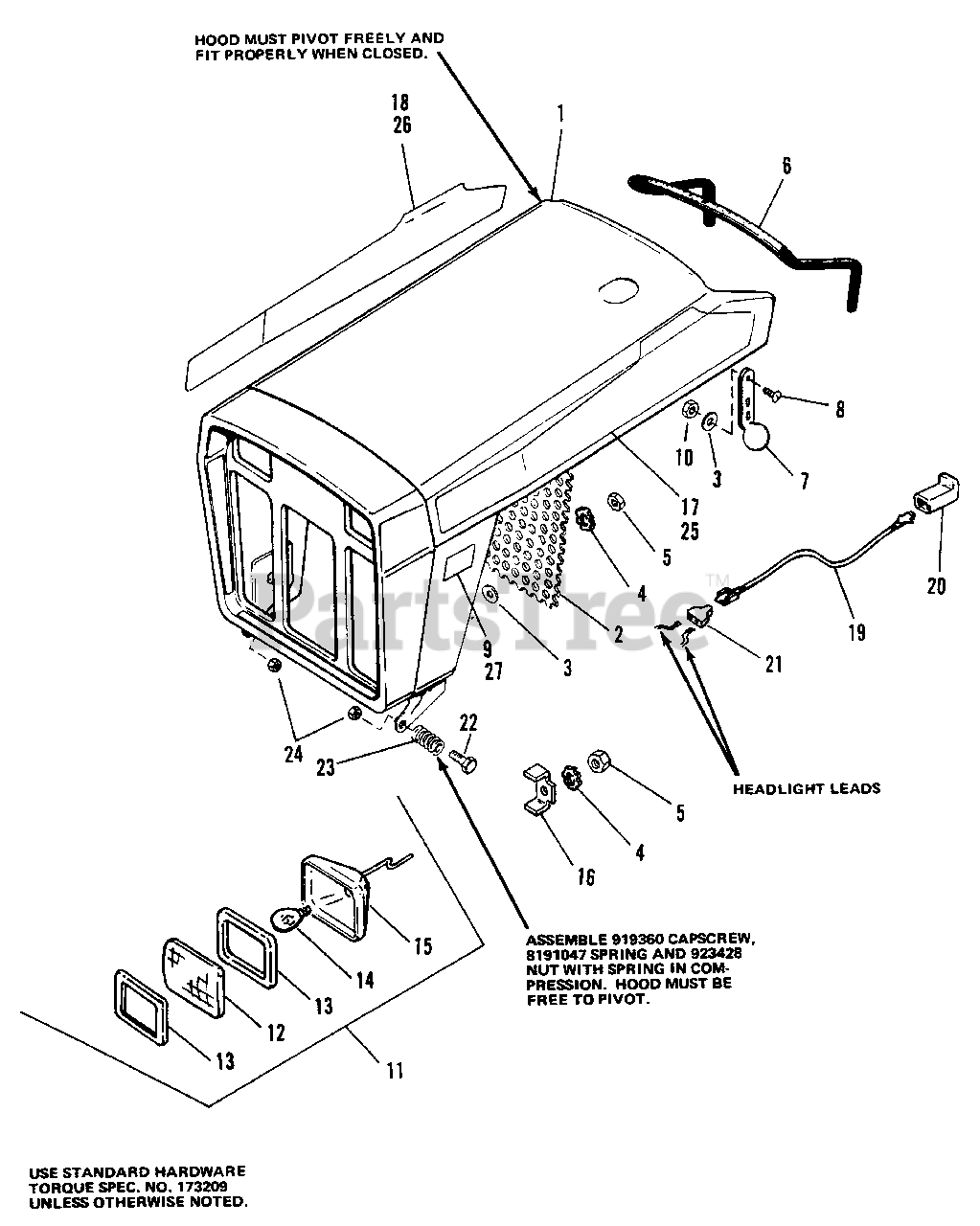

HOOD & GRILLE ASSEMBLY

$

$

Not available

2

Simplicity 1656587

SCREEN, Grille

$

$

Not available

3

Simplicity 2171804

WASHER, Special

$

$

Not available

4

Simplicity 2822711

LOCKWASHER, Ext. Tooth, No. 10

$

$

Not available

5

Simplicity 2816621

NUT, Hex, Mach., No. 10-24

$

$

Not available

6

Simplicity 2172935

MOULDING, Hood

$

$

Not available

7

Simplicity 2171600SM

STRAP, Hood

$7.99

$

In Stock, Qty 20+

0

8

Simplicity 2830531

SCREW, Truss Hd., No. 10-32 x 1/2

$

$

Not available

9

Simplicity 1657145

DECAL, 70164 Speed (7016)

$

$

Not available

10

Simplicity 2830627

LOCKNUT, Hex, No. 10-32

$

$

Not available

11

Simplicity 1665934SM

LIGHT ASSEMBLY

$

$

Not available

12

Simplicity 1665933

LENS

$

$

Not available

13

Simplicity 1654662SM

GASKET

$

$

Not available

14

BULB, No. 1293

$

$

Not available

15

Simplicity 1665934SM

SOCKET

$

$

Not available

16

Simplicity 1656881

CLIP

$

$

Not available

17

Simplicity 1657117

DECAL, L.H. Hood, Sovereign (7016)

$

$

Not available

18

Simplicity 1657116

DECAL, R.H. Hood, Sovereign (7016)

$

$

Not available

19

Simplicity 1657047

WIRE ASSEMBLY

$

$

Not available

20

Simplicity 172100

BODY, Connector

$

$

Not available

21

Simplicity 122182

CONNECTOR, Insulated

$

$

Not available

22

Simplicity 2821969

CAPSCREW, Hex Hd., 3/8-16 x 1-1/2

$

$

Not available

23

Simplicity 1729278SM

SPRING

$2.49

$

Usually ships in 2-12 days

0

24

Simplicity 1930645SM

NUT, Hex, 3/8-16
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

25

Simplicity 1669442SM

DECAL, L.H. Hood, Landlord (7010)

$125.99

$

Usually ships in 2-12 days

0

26

Simplicity 1669441SM

DECAL, R.H. Hood, Landlord (7010)

$

$

Not available

27

Simplicity 1657143

DECAL, 70106-Speed (7010)

$

$

Not available
