710 - BCS America Two-Wheeled Tractor Gear Box (SN: 100000 - 102478) Parts Diagram

Two-Wheeled Tractor

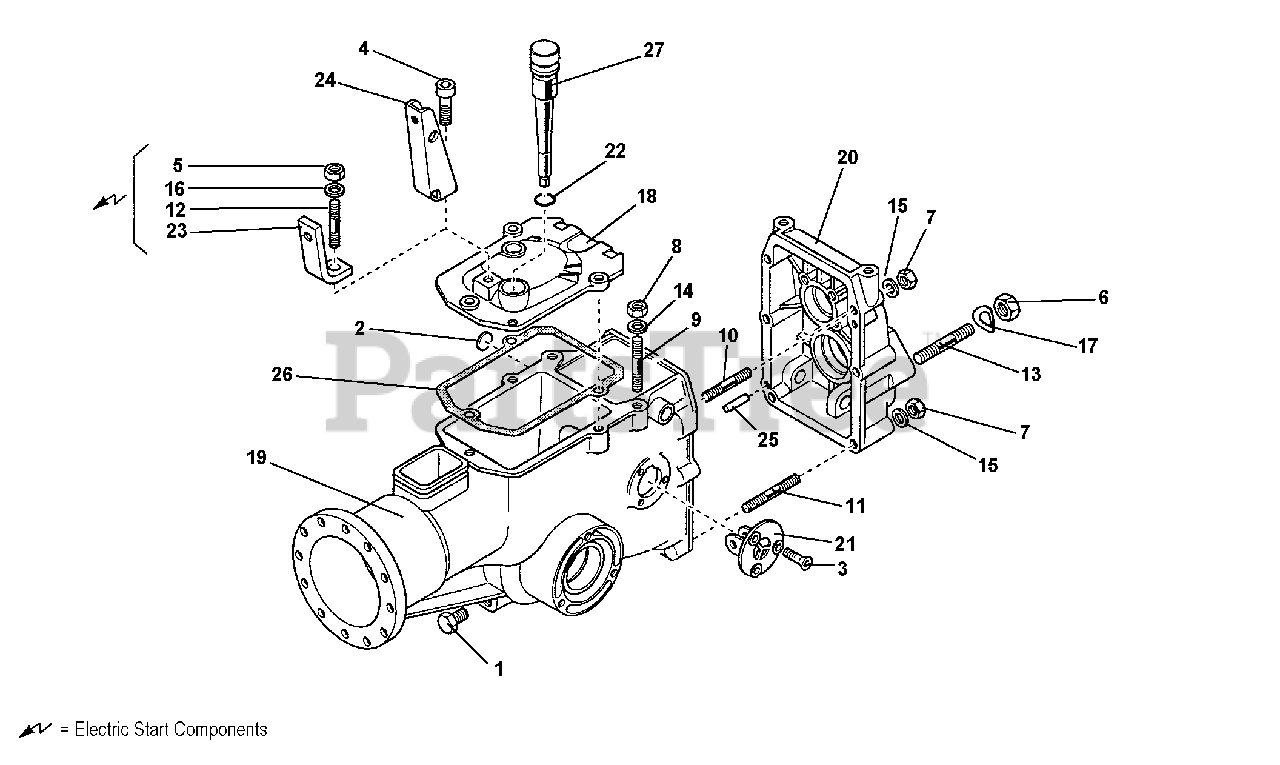

Gear Box (SN: 100000 - 102478) Parts Diagram

  • Title

1

BCS America 300.40001

PLUG

$5.49

$

In Stock, only 4 left!

0

2

BCS America 300.40133

COVER

$3.99

$

Usually ships in 5-8 days

0

3

BCS America 311.32562

SCREW, COUNTER SUNK, M6X16

$1.49

$

Usually ships in 5-8 days

0

4

BCS America 311.52103

SCREW M10X25

$1.99

$

Usually ships in 5-8 days

0

5

BCS America 31211100

NUT, M10

$1.49

$

In Stock, only 2 left!

0

6

BCS America 312.21121

NUT, M12X1.25

$1.99

$

In Stock, only 4 left!

0

7

BCS America 31241080

NUT, SELF LOCKING M8

$0.99

$

In Stock, Qty 10

0

8

BCS America 312.41085

NUT

$1.99

$

Usually ships in 5-8 days

0

9

BCS America 313.12082

STUD M8X38X14X20

$1.99

$

In Stock, only 3 left!

0

10

BCS America 313.12084

STUD M8X58X16X16

$2.49

$

Usually ships in 5-8 days

0

11

BCS America 313.12094

STUD M8X68

$2.49

$

Usually ships in 5-8 days

0

12

BCS America 313.12101

STUD M10X37

$7.99

$

Usually ships in 5-8 days

0

13

BCS America 313.12124

STUD M12X1.25X12X52

$3.99

$

In Stock, only 4 left!

0

14

BCS America 314.21083

SUPER WASHER 8

$1.49

$

In Stock, Qty 6

0

15

BCS America 314.23084

WASHER, LOCK 8.4

$0.99

$

In Stock, Qty 10

0

16

BCS America 314.23105

WAHSER M10.4

$1.49

$

In Stock, only 3 left!

0

17

BCS America 31423130

WASHER, LOCK, M13

$1.49

$

In Stock, only 2 left!

0

18

BCS America 531.43128

GEARBOX COVER

$77.99

$

Usually ships in 5-8 days

0

19

BCS America 531.56325

GEAR BOX CASE

$667.99

$

Usually ships in 5-8 days

0

20

BCS America 531.56332

REAR COVER

$163.99

$

In Stock, only 1 left!

0

21

BCS America 531.56343

REVERSER GEAR COVER, 710

$83.99

$

Usually ships in 5-8 days

0

22

BCS America 551.02678

"O" RING

$1.49

$

In Stock, only 1 left!

0

23

BCS America 561.43878

CLUTCH BRACKET

$33.99

$

Usually ships in 5-8 days

0

24

BCS America 561.47923

CLUTCH BRACKET

$32.99

$

Usually ships in 5-8 days

0

25

BCS America 580.43053

PARALLEL PIN

$1.49

$

Usually ships in 5-8 days

0

26

BCS America 580.43117

GASKET, COVER

$2.99

$

In Stock, only 2 left!

0

27

BCS America 590.15425

CAP WITH DIP STICK

$25.99

$

In Stock, only 1 left!

0
