711024 - Gravely Dethatcher Attachment Dethatcher Kit - PN 71102400 Parts Diagram

Dethatcher Attachment

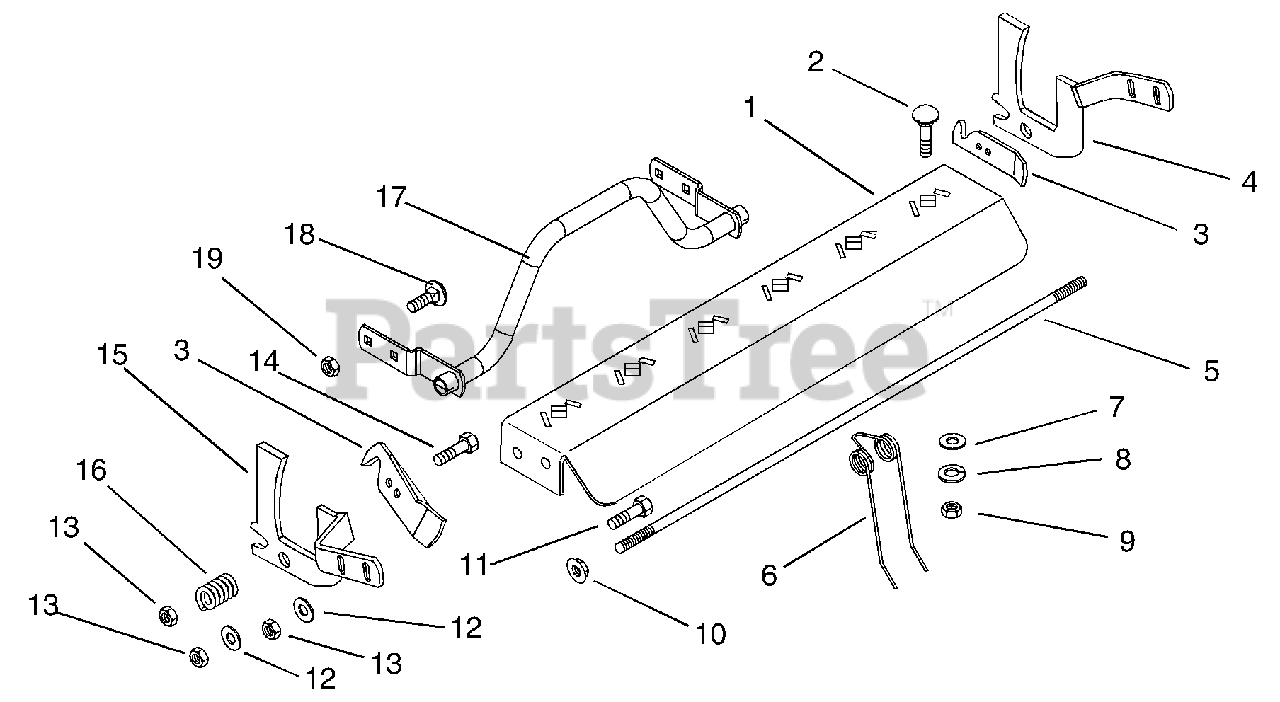

Dethatcher Kit - PN 71102400 Parts Diagram

  • Title

1

Gravely 51106900

Tine Plate

$

$

Not available

2

Gravely 06214100

Bolt-Round Head Square Neck .31-18 x .75 Grade 2
(Superseded to 06200309)

$2.49

$

In Stock, Qty 9

0

3

Gravely 01135700

Axle Lock

$31.99

$

Usually ships in 4-12 days

0

4

Gravely 01135900

Cam Bracket-Left Hand

$23.99

$

Usually ships in 4-12 days

0

5

Gravely 01135800

Rod, Retention

$35.99

$

Usually ships in 4-12 days

0

6

Gravely 01136100

Tine

$22.99

$

In Stock, only 1 left!

0

7

Gravely 06437500

Washer-Flat-Steel .328 x 1.0 x .094
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

8

Gravely 06307400

Washer-Locking .312 x .097
(Superseded to 06300123)

$0.99

$

In Stock, only 4 left!

0

9

Gravely 06529200

Nut-Hex .31-18
(Superseded to 06500938)

$0.99

$

In Stock, Qty 16

0

10

Gravely 06530100

Nut-Locking-Flange .250-20
(Superseded to 06500824)

$0.99

$

In Stock, Qty 17

0

11

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

12

Gravely 06437300

Washer-Flat-Steel .281 x .62 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 15

0

13

Gravely 06529700

Nut-Locking-Center .25-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 05947400

Bolt-Hex .25-20 x 1.25 Grade 5
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

15

Gravely 01136000

Cam Bracket-Right Hand

$23.99

$

Usually ships in 4-12 days

0

16

Gravely 08321700

Spring-Compression .058 x .68 x .75

$9.49

$

Usually ships in 4-12 days

0

17

Gravely 01242751

Dethatcher Retainer Weldment

$170.99

$

In Stock, only 1 left!

0

18

Gravely 06212200

Bolt-Round Head Square Neck .31-18 x .62
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06529800

Nut-Locking-Center .31-18
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

Gravely 71102400

Dethatcher Kit

$

$

Not available
