711038 - Ariens LM Swivel Wheel Kit Swivel Wheel Accessory Kit Parts Diagram

LM Swivel Wheel Kit

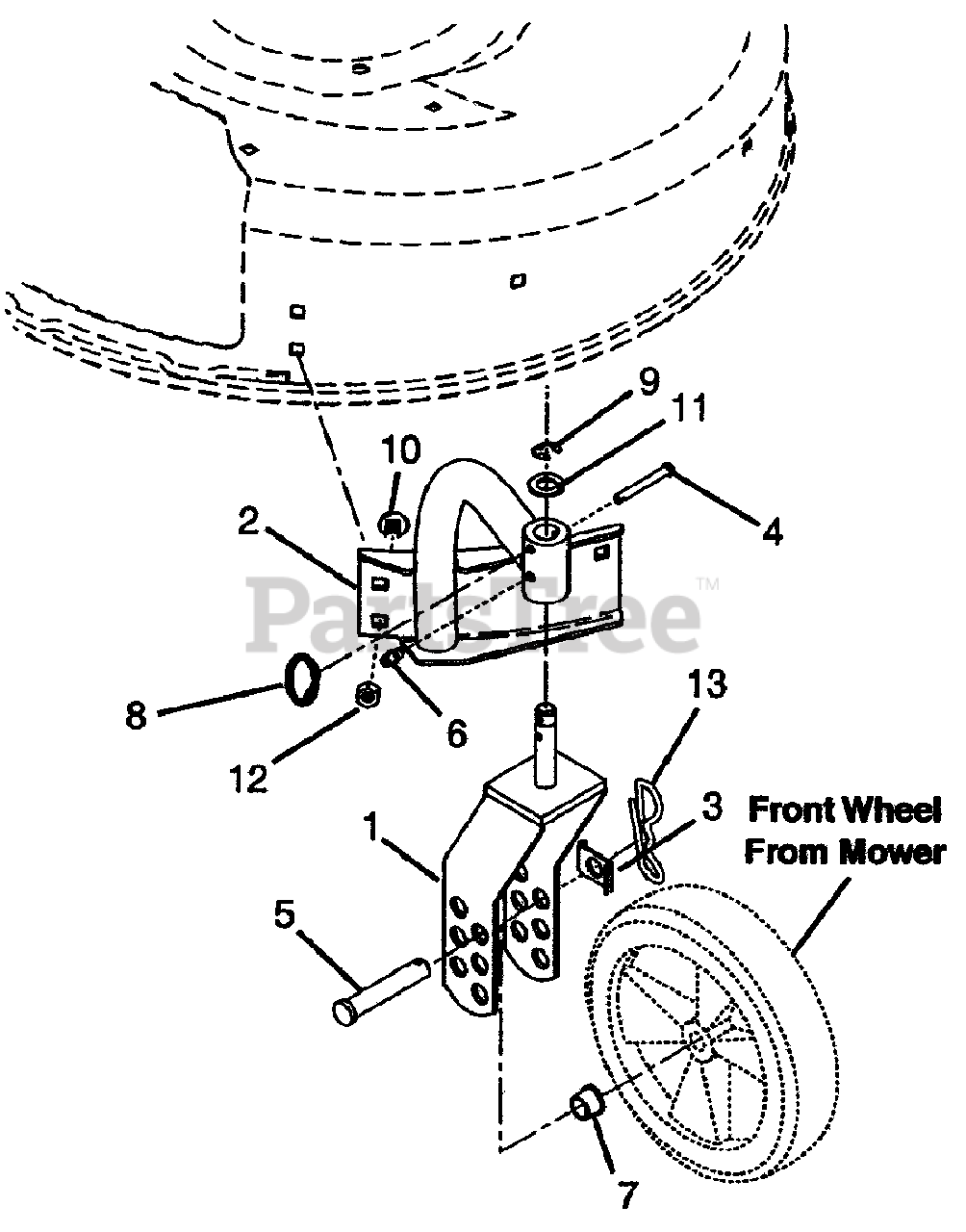

Swivel Wheel Accessory Kit Parts Diagram

  • Title
1

Ariens 01169351

WHEEL YOKE WELDMENT

Note: Pre-assembled

$143.55

$

Usually ships in 4-12 days

0

2

Ariens 01189551

MOUNT W/BUSHING, LEFT ARM

Note: Pre-assembled

$

$

Not available

Ariens 01185251

MOUNT W/BUSHING, RIGHT ARM

Note: Pre-assembled

$

$

Not available

3

Ariens 01168100

AXLE TAB

$15.99

$

In Stock, only 4 left!

0

4

Ariens 06814600

PIN-CLEV .25X1.75 YWZC

$3.58

$

In Stock, Qty 8

0

5

Ariens 01168300

PIN-CLEV .494X2.62 YWZC

$8.89

$

In Stock, only 4 left!

0

6

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

Note: Pre-assembled

$5.99

$

Usually ships in 4-12 days

0

7

Ariens 05502100

BSHG-FLG .500X.625X.500X.750

$3.52

$

In Stock, Qty 20+

0

8

Ariens 01169200

KICKOUT RING YWZC
(Superseded to 01239800)

$2.18

$

In Stock, Qty 9

0

9

Ariens 05708300

RG-RTNG-EXT .625X.042

Note: Pre-assembled

$1.96

$

In Stock, Qty 20+

0

10

Ariens 06222000

@BLT-RDHDSQNK .31-18X.50 G5YZ
(Superseded to 06200406)

$2.99

$

In Stock, only 4 left!

0

11

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

Note: Pre-assembled

$2.24

$

In Stock, Qty 20+

0

12

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$2.52

$

In Stock, Qty 20+

0

13

Ariens 01190800

PIN, BOWTIE COTTER

$3.30

$

Usually ships in 4-12 days

0

Ariens 71103800

LM SWIVEL WHEEL KIT

Note: For use on Walk Behind Mowers

$

$

Not available
