711041 - Ariens Channel Swivel Wheel Kit

Channel Swivel Wheel Kit

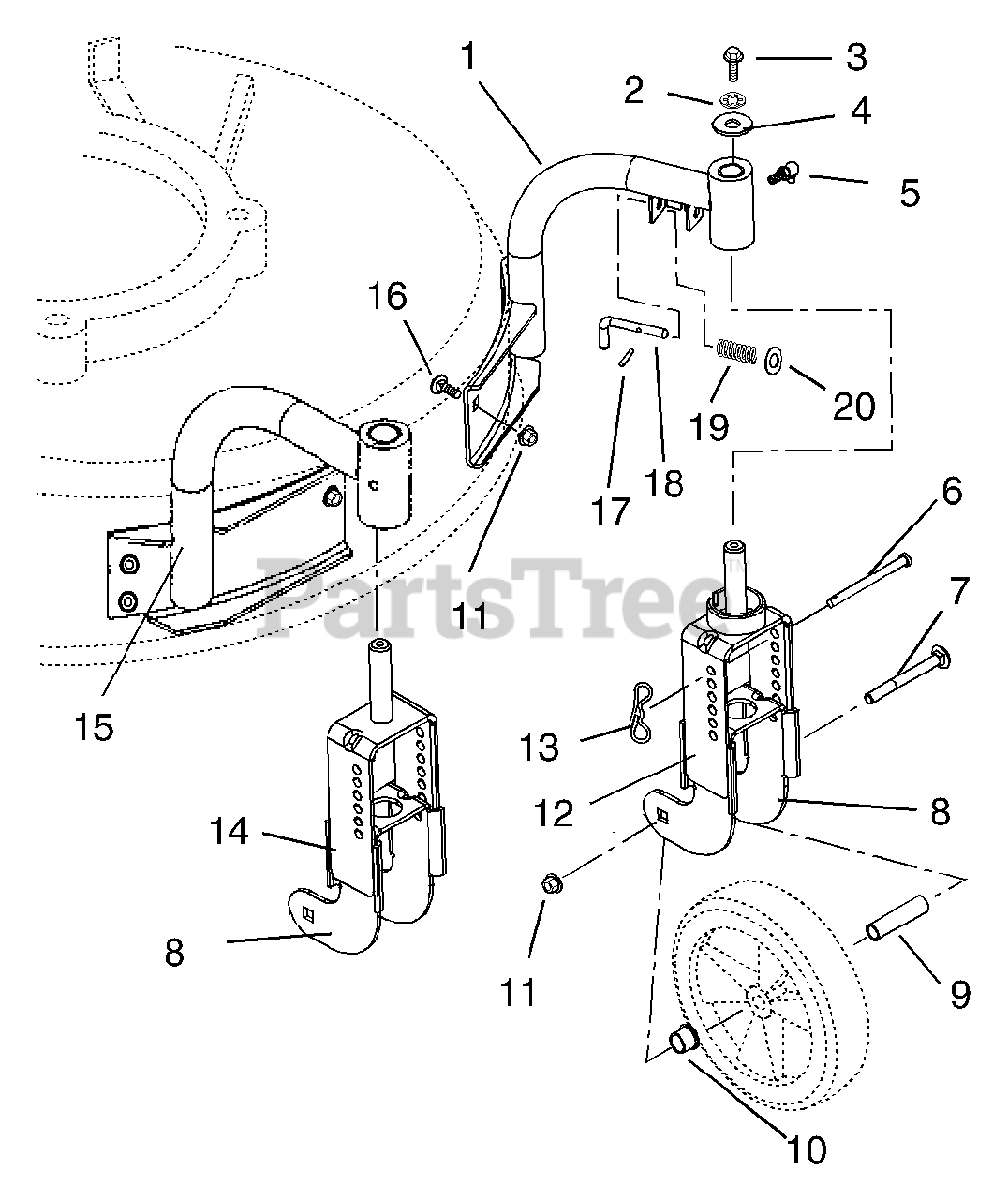

711041 - Ariens Channel Swivel Wheel Kit > Parts Diagrams (1) > Channel Swivel Wheel Kit

  • Title
01196851

1

ASSY. LH MOUNT W/BUSHINGS

Part# 01196851

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $122.92

06308400

2

@WSHR-LK .25X.062 REG YWZC

Part# 06308400

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.85

05946800

3

@BLT-HEX .25-20X.75 GR5 YWZC

Part# 05946800

OEM Warranty Repair Part for Ariens

Not available

06426600

4

WSHR-FL-STL .281X1.000X.063

Part# 06426600

OEM Warranty Repair Part for Ariens

Not available

07012600

5

FTG-LUBE .25-28X.256 YWZC

Part# 07012600

Note: Part of Left and Right Mount.

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06817100

6

PIN, HEIGHT ADJUSTMENT

Part# 06817100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06212300

7

BLT-RDHDSQSHNK.31-18X2.75G2YWZ

Part# 06212300

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

01196600

8

YOKE-INNER

Part# 01196600

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $22.30

05533500

9

SPCR, WHEEL .385X.500X2.00

Part# 05533500

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

05502100

10

BSHG-FLG .500X.625X.500X.750

Part# 05502100

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06530400

11

@NUT-SPNLK-FLG .312-18 YWZC

Part# 06530400

OEM Warranty Repair Part for Ariens

Not available

01196751

12

WELDMENT, LH OUTER YOKE

Part# 01196751

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $61.43

06700001

13

PIN, BOW TIE LOCKING COTTER

Part# 06700001

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $2.18

01197451

14

WELDMENT, RH OUTER YOKE

Part# 01197451

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $33.48

01197551

15

ASSY, RH MOUNT W/ BUSHINGS

Part# 01197551

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 5 to 11 business days

Your price: $110.63

06222000

16

@BLT-RDHDSQNK .31-18X.50 G5YZ

Part# 06222000

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53

05803200

17

PIN-ROLL .093X1.00

Part# 05803200

Note: Part of Left Mount.

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $1.40

01196900

18

PIN, LOCKOUT

Part# 01196900

Note: Part of Left Mount.

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $10.01

08337300

19

SPRG, COMP--SWVL LOCKOUT

Part# 08337300

Note: Part of Left Mount.

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $3.30

06437300

20

@WSHR-FL-STL.281X.62X.065 YWZC

Part# 06437300

Note: Part of Left Mount.

OEM Warranty Repair Part for Ariens

Usually leaves our warehouse in 1 business day

Your price: $5.53
