711041 - Gravely Swivel Wheel Kit Channel Swivel Wheel Kit Parts Diagram

Swivel Wheel Kit

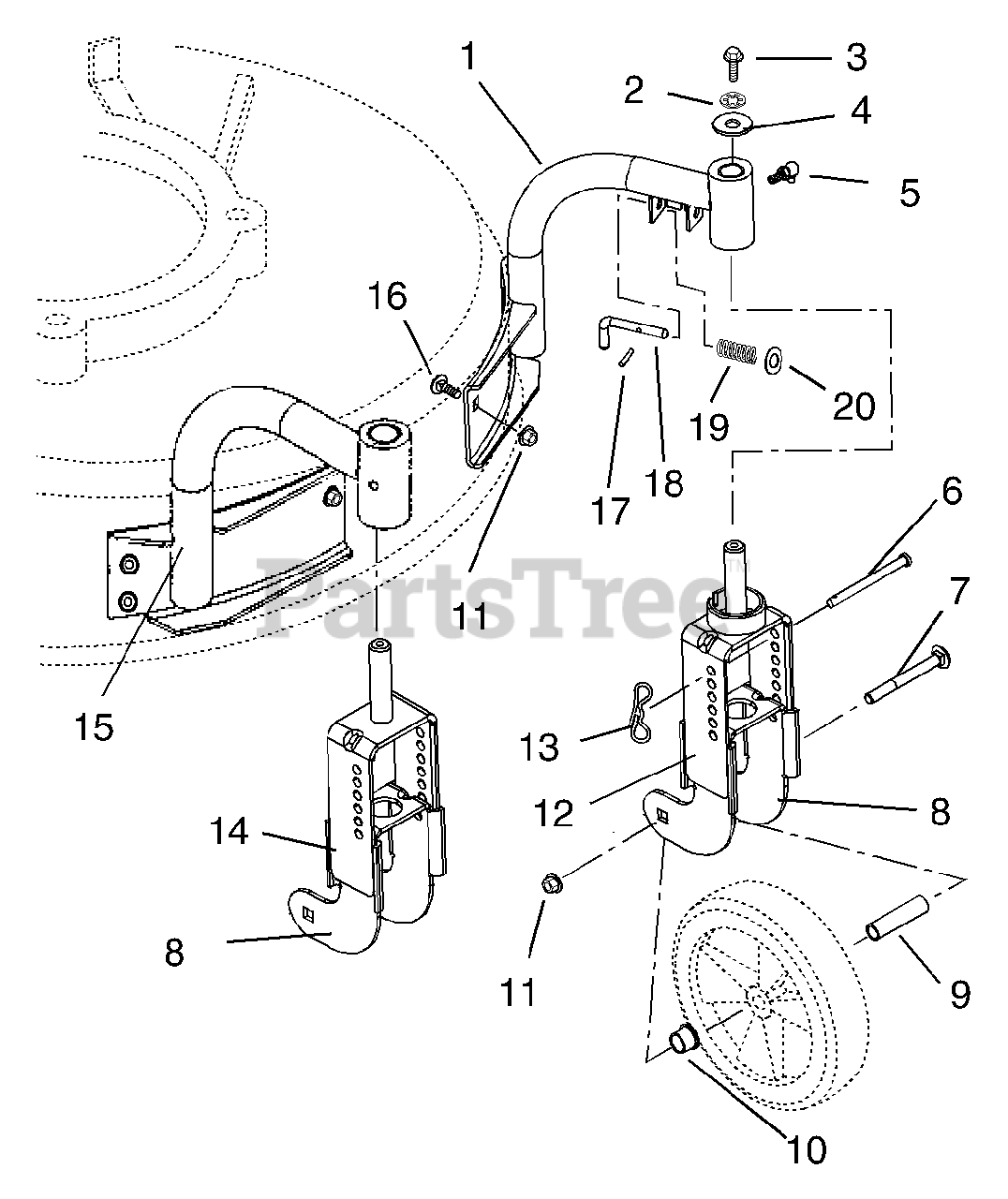

Channel Swivel Wheel Kit Parts Diagram

  • Title

1

Gravely 01196851

ASSY. LH MOUNT W/BUSHINGS

$184.99

$

Usually ships in 4-12 days

0

2

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 7

0

3

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

4

Gravely 06426600

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$1.49

$

In Stock, only 4 left!

0

5

Gravely 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

Note: Part of Left and Right Mount.

$

$

Not available

6

Gravely 06817100

PIN, HEIGHT ADJUSTMENT

$3.99

$

In Stock, Qty 17

0

7

Gravely 06212300

BLT-RDHDSQSHNK.31-18X2.75G2YWZ

$3.49

$

In Stock, Qty 12

0

8

Gravely 01196600

YOKE-INNER

$23.99

$

In Stock, Qty 5

0

9

Gravely 05533500

SPCR, WHEEL .385X.500X2.00

$9.99

$

In Stock, Qty 20+

0

10

Gravely 05502100

BSHG-FLG .500X.625X.500X.750

$3.99

$

In Stock, Qty 19

0

11

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

12

Gravely 01196751

WELDMENT, LH OUTER YOKE

$131.99

$

Usually ships in 4-12 days

0

13

Gravely 06700001

PIN, BOW TIE LOCKING COTTER

$3.49

$

In Stock, Qty 17

0

14

Gravely 01197451

WELDMENT, RH OUTER YOKE

$63.99

$

Usually ships in 4-12 days

0

15

Gravely 01197551

ASSY, RH MOUNT W/ BUSHINGS

$171.99

$

Usually ships in 4-12 days

0

16

Gravely 06222000

BLT-RDHDSQNK .31-18X.50 G5YZ
(Superseded to 06200406)

$3.49

$

In Stock, only 4 left!

0

17

Gravely 05803200

PIN-ROLL .093X1.00

Note: Part of Left Mount.

$0.99

$

In Stock, Qty 10

0

18

Gravely 01196900

PIN, LOCKOUT

Note: Part of Left Mount.

$19.99

$

In Stock, only 2 left!

0

19

Gravely 08337300

SPRG, COMP--SWVL LOCKOUT

Note: Part of Left Mount.

$3.99

$

In Stock, only 1 left!

0

20

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

Note: Part of Left Mount.

$0.99

$

In Stock, Qty 20+

0

Gravely 71104100

KIT, CHANNEL SWIVEL WHEEL

$419.99

$

Usually ships in 4-12 days

0
