7114 (1690722) - Simplicity 42" Garden Tractor, 14hp Frame & Footrest Group Parts Diagram

42" Garden Tractor, 14hp

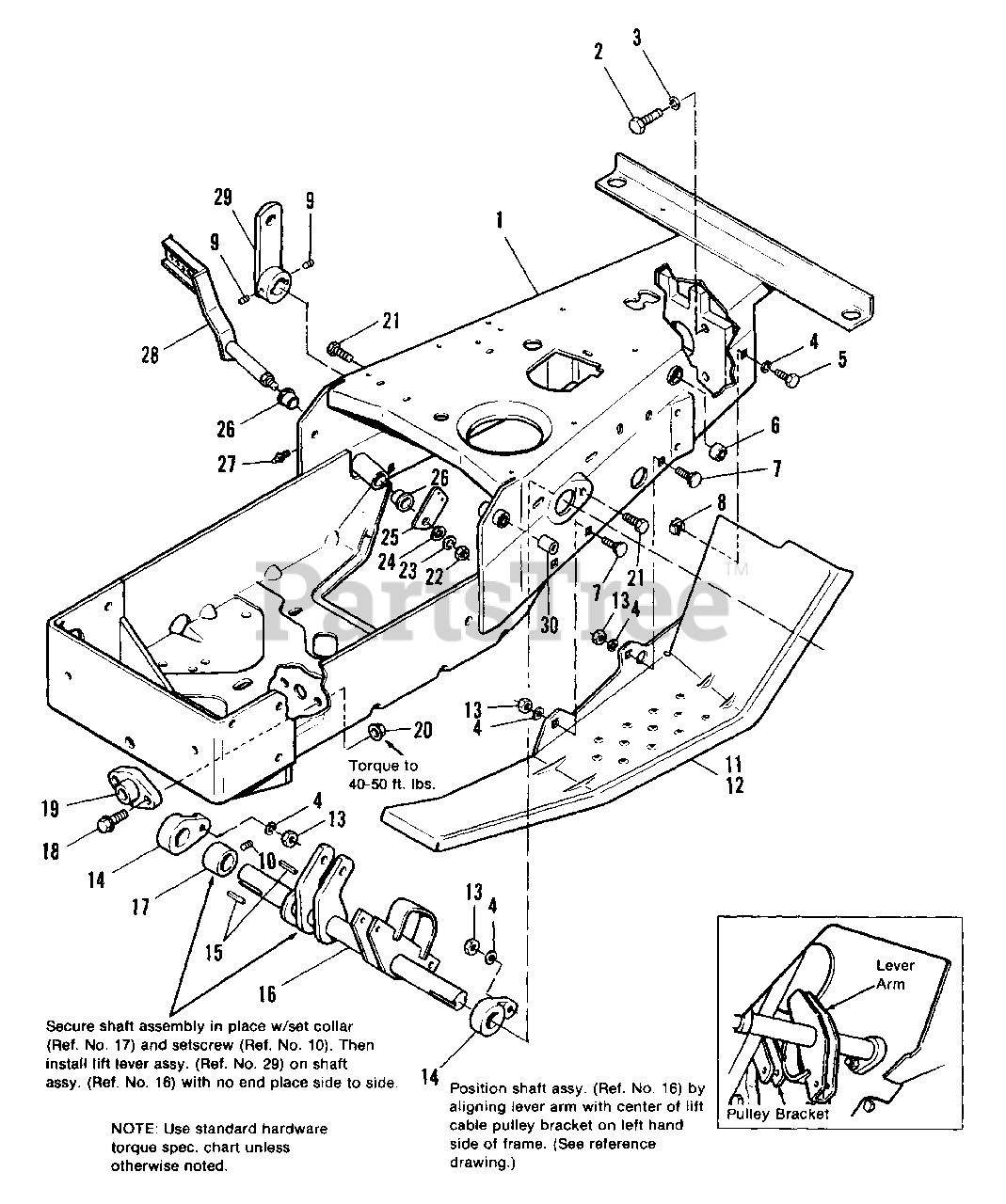

Frame & Footrest Group Parts Diagram

  • Title

1

Simplicity 1671419

FRAME ASSY., w/Bushings (7114 & 7116 Only)

Note: Ref. No. 1 includes Ref. Nos. 6 & 27.

$

$

Not available

1

Simplicity 1671380

FRAME ASSY., w/Bushings (7117 Only)

$

$

Not available

2

Simplicity 2821212

CAPSCREW, Hex Hd., 7/16-14 x 1-1/2

$

$

Not available

3

Simplicity 2818199

LOCKWASHER, 7/16

$

$

Not available

4

Simplicity 1917356SM

LOCKWASHER, 5/16
(Superseded to 5025170SM)

$4.49

$

In Stock, only 2 left!

0

5

Simplicity 2821332

CAPSCREW, Hex Hd., 5/16-18 x 3/4

$

$

Not available

6

Simplicity 2174662SM

BUSHING

$81.99

$

Usually ships in 2-12 days

0

7

Simplicity 2820562

BOLT, Carriage, 5/16-18 x 3/4

$

$

Not available

8

Simplicity 2820470

NUT, Speed, 5/16-18

$

$

Not available

9

Simplicity 2828734

SETSCREW, 5/16-18 x 1/4

$

$

Not available

10

Simplicity 2828709

SETSCREW, 5/16-18 x 3/8

$

$

Not available

11

Simplicity 1665908SM

FOOTREST, LH
(Superseded to 1665908CSM)

$87.99

$

Usually ships in 2-12 days

0

12

Simplicity 1665909SM

FOOTREST, RH
(Superseded to 1665909CSM)

$87.99

$

Usually ships in 2-12 days

0

13

Simplicity 1917372SM

NUT, Hex, Full, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, only 4 left!

0

14

Simplicity 2170975SM

BEARING, Lift Lever

$

$

Not available

15

Simplicity 2157652

KEY

$

$

Not available

16

Simplicity 1663168

SHAFT ASSY., Lift

$

$

Not available

17

Simplicity 2157624

COLLAR, Set

$

$

Not available

18

Simplicity 2828727

SCREW, Hex, Whiz, Flange, 3/8-16 x 1-1/4

$

$

Not available

19

Simplicity 1653876SM

BEARING, Pivot

$

$

Not available

20

Simplicity 2828352

LOCKNUT, Hex, Flange, 3/8-16
(Superseded to 703793)

$4.49

$

Usually ships in 2-12 days

0

21

Simplicity 2821977

CAPSCREW, Hex Hd., 5/16-18 x 1-3/4

$

$

Not available

22

Simplicity 2816950SM

NUT, Hex, Full, 3/8-16
(Superseded to 703457)

$4.49

$

In Stock, only 1 left!

0

23

Simplicity 1916965SM

LOCKWASHER, 3/8
(Superseded to 703454)

$3.49

$

In Stock, Qty 7

0

24

Simplicity 1924940SM

WASHER, Plain, 3/8
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

25

Simplicity 2157300SM

ARM, Foot Pedal

$

$

Not available

26

Simplicity 2108419

BUSHING

$

$

Not available

27

Simplicity 2821133SM

FITTING, Grease
(Superseded to 703907)

$5.49

$

In Stock, Qty 20+

0

28

Simplicity 1674137SM

PEDAL ASSY., Foot

$

$

Not available

29

Simplicity 2157625SM

LEVER ASSY., RH

$233.99

$

Usually ships in 2-12 days

0

30

Simplicity 2158544SM

BEARING, Interm. Pinion

$31.99

$

Usually ships in 2-12 days

0
